Full Automatic Bag making Machine
Product Introduction:
Machine suitable for BOPP, PP, PE film etc. some packing materials. the finished product main use for make some packaging bag.
It is one working process before bag making machine .
Feature:
1.Machine use microcomputer control system, step motor fixed length.
2.Unwinding 500mm diameter ,automatic edge position control( two photocell control it ) ,magnetic powder brake for tension control.
3. Unwinding 1400mm width, one triangle folding function.
4.Automatic add adhesive tape and pearlized BOPP
5.Automatic ultrasonic sealing function for pearlized BOPP
6.Automatic Bottom insert function.
7.Rewinding 600mm diameter, magnetic powder brake for tension control.
8.Automatic meter counting , automatic stop & alarm.
Main Technical Parameter:
| Automatic Folding Machine | ZBA-1200 |
| Machine Speed | 20-100 meter per minute |
| Unwinding Width | 1400mm |
| Rewinding Width | 700mm |
| Unwinding Diameter | 500mm |
| Rewinding Diameter | 600mm |
| Machine Weight | 800KG |
| Machine Size | 3.4m*1.6m*1.6m |

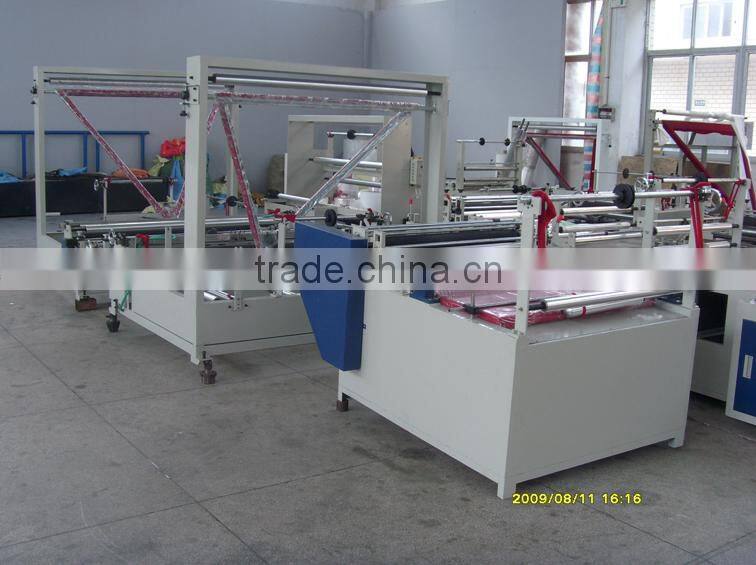

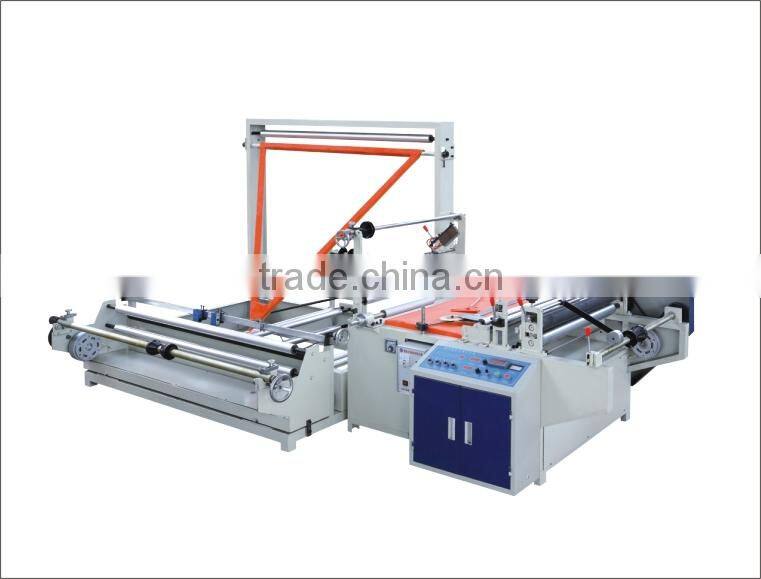

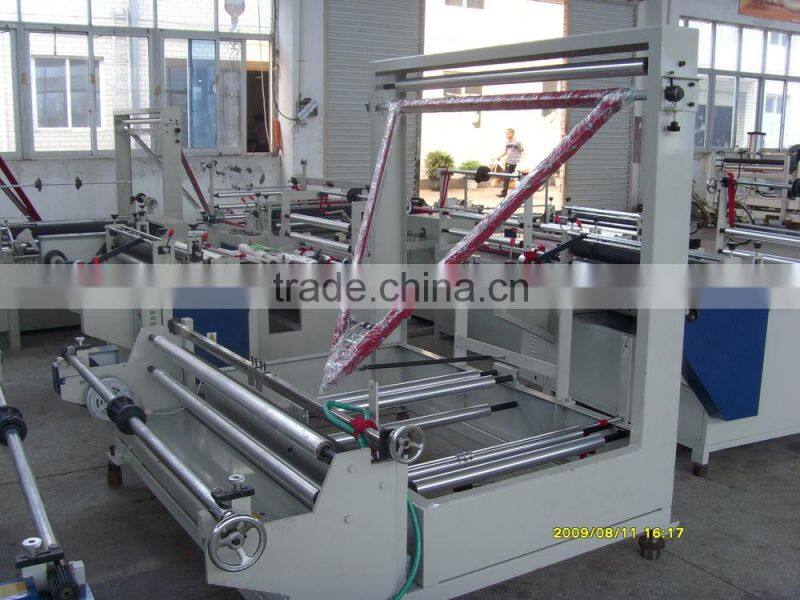

Machine Picture:
