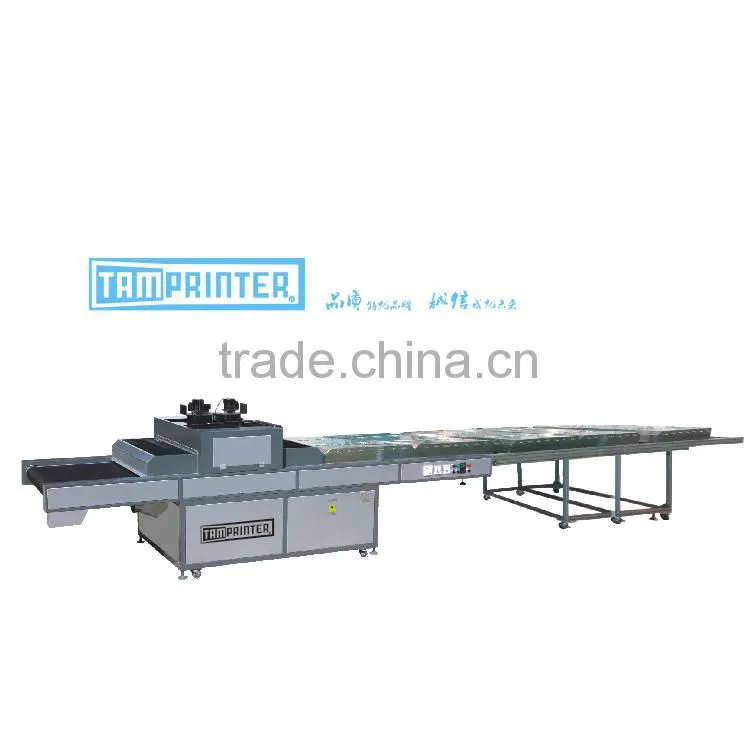

TM-UV1000L UV Screen Ink Dryer Machine
Technical parameters:
| Model No. | TM-UV1000L |
| Conveyorbelt width(mm) | 1000mm |
| UV light power(kw) | 5.6kw*2 |
| Conveyor speed(m/min) | 0-25m/min |
| Power (v/kw) | 380/12.8 |
| Dimensions (WXHXLmm) | 4050*1300*1400mm |
Plywood 4.2*1.45*H1.7m , about 500~600kg
Application:
It is apply to the special effects such as wrinkle, frosted refraction gem crystal and convex oil on the bullion paperboard, metal, glass, plastic, and also the UV curing of the offset printing ink on the offset press production.
Features:
1. With Teflon or stainless steel net, transmit speed steady and can be adjusted.

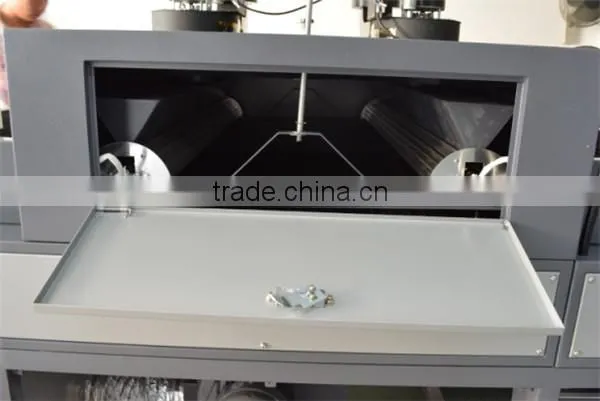

2. With two UV lighting tubes, can turn on the light according to the need.
3. Wink-dry makes the surface of the stocks high hardness and rub resistance.
4. Tunneling-based make the whole machine light barrier good and without harm.

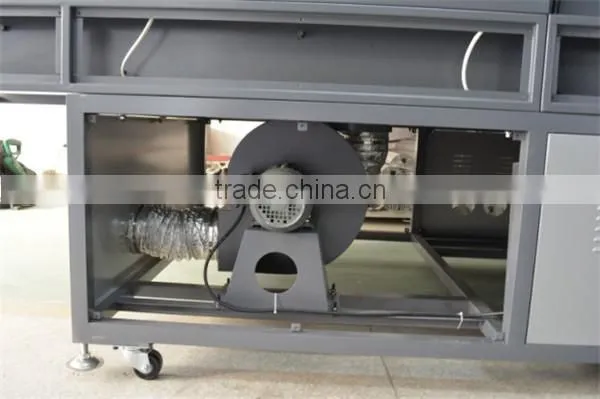

5. Equipped with powerful nether induced draughe system and big intake airway, can absorbs the stock on the mesh belthard. It can be used with production line and other equipment easily.
Type |
TM-UV900 |
TM-UV1000 |
Convey belt width |
880mm |
980mm |
Max thickness of cured |
40mm |
40mm |
Conveying speed |
2~20 |
2~20 |
Power (P/V/Hz) |
3/380/50 |
3/380/50 |
UV lamp |
5.6kw |
8kw |
Driving power |
90W |
120W |
Total power |
12KW |
16.5KW |
Size (L*W*H)MM |
2550*1200*1600/265*134*167 |
2850*1300*1600 |
Weight (Kg) |
420 |
450 |
Certificate |
CE |
CE |
Application
TM-UV900 UV curing machine is used for flat and round surfaces UV curing.UV drying machine.
It suite for bottle surface UV ink drying solid process and flat surface UV ink drying solid process. Such as various of UV ink, UV adhesives, UV paint curing.
Features & Advantages
1, With the high efficiency UV light, it can finish the UV curing quickly, the high level of UV light can be adjusted, and setting the right parameters for UV curing.

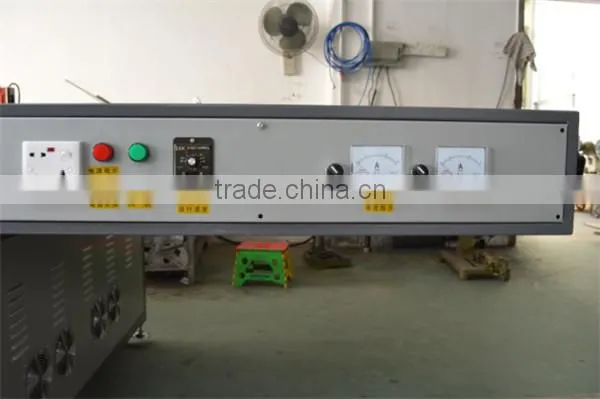

2, LED display shows the conveyor running speed, convenient to process operation.
3,The machine body adopts the extra-thick stainless steel for hardness and durable.

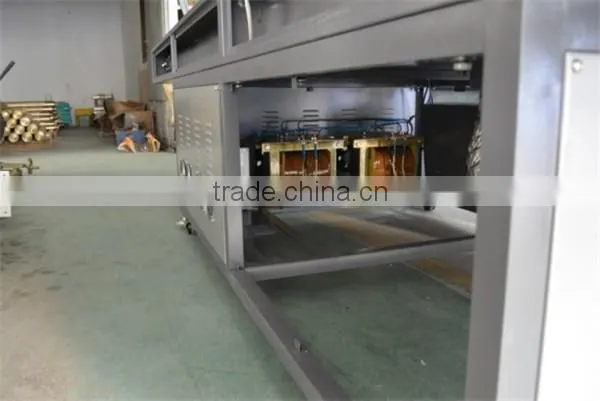

4, UV lamp and transformers which are imported from United Kingdom that fit for special ventilation design, which can be max effectiveness. It suited for different UV curing process.
5, This series of products is different with the traditional high-power, high-power UV equipment. In order reduce the cost and improve output for our customer.
