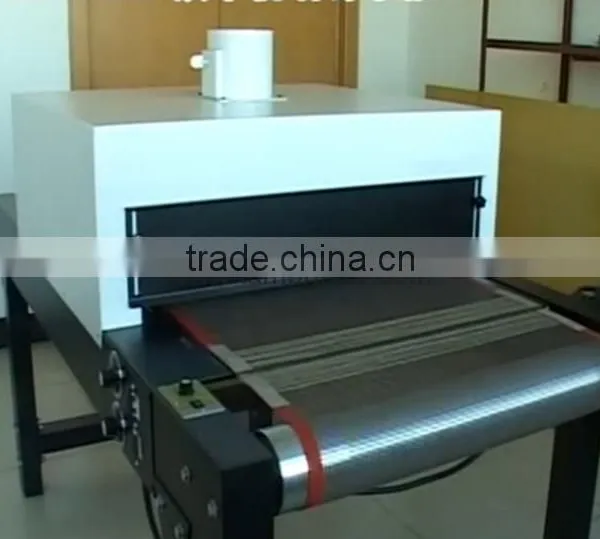

IR-T650 T-shirt conveyor IR tunnel oven
conveyor drying machine for t shirt Parameters:
Model |
IR-T650 |
IR-T400 | IR-T200 |
Conveyor(L*W*H) |
1800*900*1280mm |
1800*750*1280mm | 1000*460*465mm |
The drying zone(L*W) |
800*900mm |
800*750mm | 520*460mm |
Conveyor belt width |
650mm |
400mm | 200mm |
The biggest conveyor width |
750mm |
450mm | 250mm |
The biggest conveyor height |
100mm(Adjustable) |
100mm(Adjustable) | 100mm(Adjustable) |
Conveyor belt(material) |
PTFE(Teflon) |
PTFE(Teflon) | PTFE(Teflon) |
Conveyor belt(speed) |
1-5meter/minute |
1-5meter/minute | 1-5meter/minute |
IR Lamp |
500W, 8 pcs,Heraeus (Adjustable) |
500W, 6 pcs,Heraeus (Adjustable) | 300W, 6 pcs,Heraeus (Adjustable) |
Power of generator |
90W(stepless speed regulation) |
90W(stepless speed regulation) | 90W(stepless speed regulation) |
Total Power |
4100W, 220V,SINGLE PHASE |
3100W, 220V,SINGLE PHASE | 1860W, 220V,SINGLE PHASE |
G.W |
200KG |
160KG | 100KG |
T-shirt ir tunnel oven is Flash Drying Equipment
Small conveyor dryer Feature
1. Cover small area,easy to use
2. Teflon screen belt , customers' designs are welcome.
3. Motor can be set to any speed and provides a smooth and even motion.
4. Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5. Adjustable belt speed and tunnel temperature controls.
