Thin Blade Slitter Scorer For Cardboard Machine
Function and characteristics:

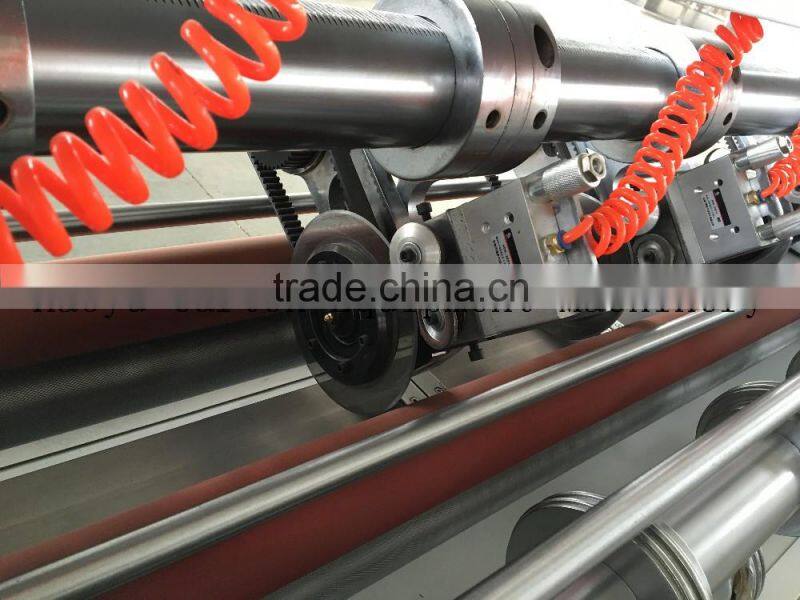

1.Slitting part : adopt high quality tungsten steel blade , sharp and long work-life , sharp and long
work-life , slice more tidy , non-pressing and non-burr .

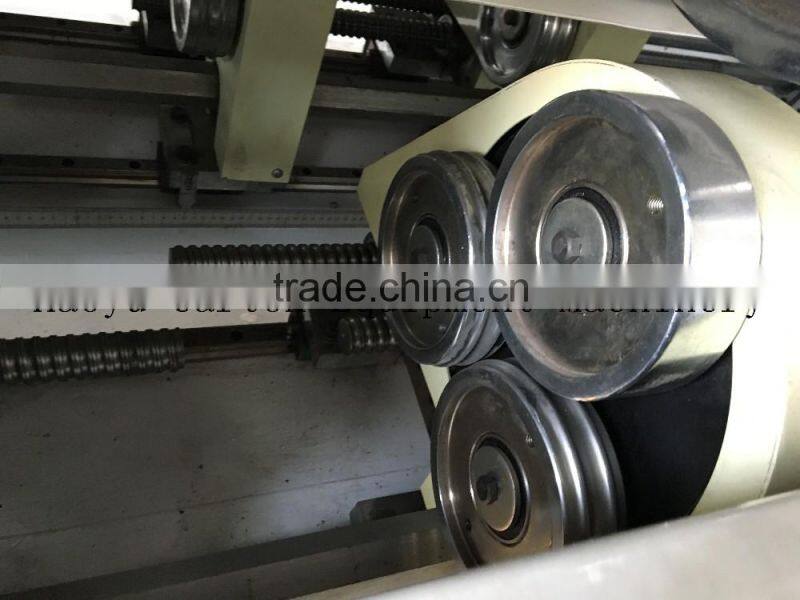

2.Scoring part : adopt 5 point scoring , scoring distance in-phase adjust , blazonry and easy to
bend the carton sheet .
3. Grinding part : adopt automatic and manual two kinds pneumatic grinding type , it could
be grinding type , it could be grinding when working , improve work efficiency .
4. Electric control lift-down and correct error , easy to operate , suit for different requirements .
5. Adopt China famous brand or imported electric element , dependable performance .
6. Adopt synchronous belt drive , low noisy and work steady .
7. It could be adopts double machine type , easy and fast change cutting order .
8. Max running speed for production line :150m/min
Model |
2000 |
2300 |
2600 |
|
Machine dimension(mm) |
3200*1200*2200 |
3500*1200*2200 |
3700*1200*2200 |
|
Power |
8.5kw |
8.5kw |
8.5kw |
|
Max slitting |
Inverse blade |
1800mm |
2100mm |
2400mm |
Positive blade |
1800mm |
2100mm |
2400mm |
|
Min slitting |
Inverse blade |
140mm |
140mm |
140mm |
Positive blade |
140mm |
140mm |
140mm |
|
Min scoring |
Positive scoring |
30mm |
30mm |
30mm |
Inverse scoring |
80mm |
80mm |
80mm |
|
Scoring height |
0-10mm |
0-10mm |
0-10mm |
|
Blade(mm) |
φ200*122*1.2 |
φ200*122*1.2 |
φ200*122*1.2 |
|
Blade & Scoring |
Three blade Four scoring/ Four blade |
|||

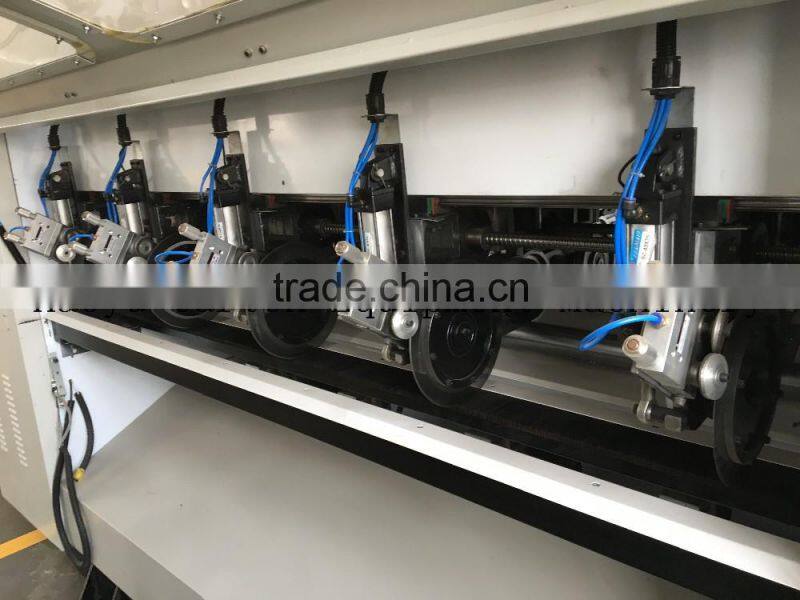

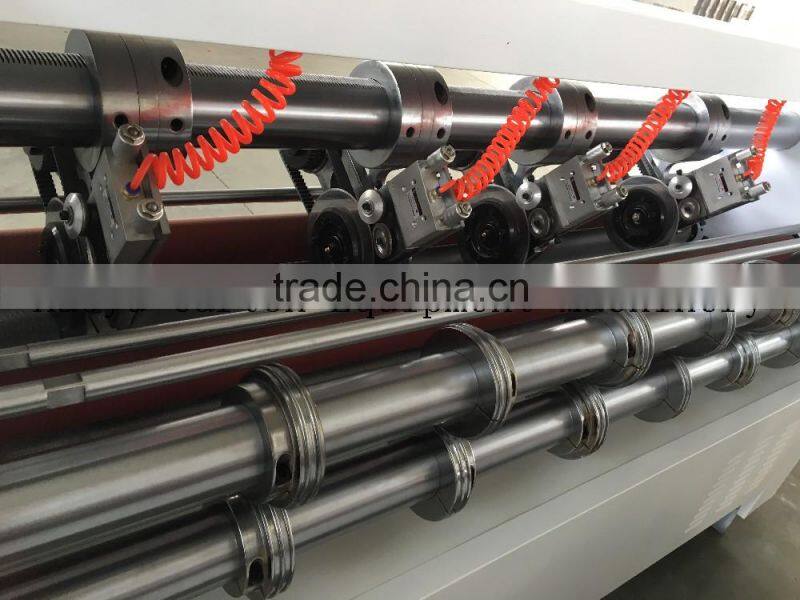

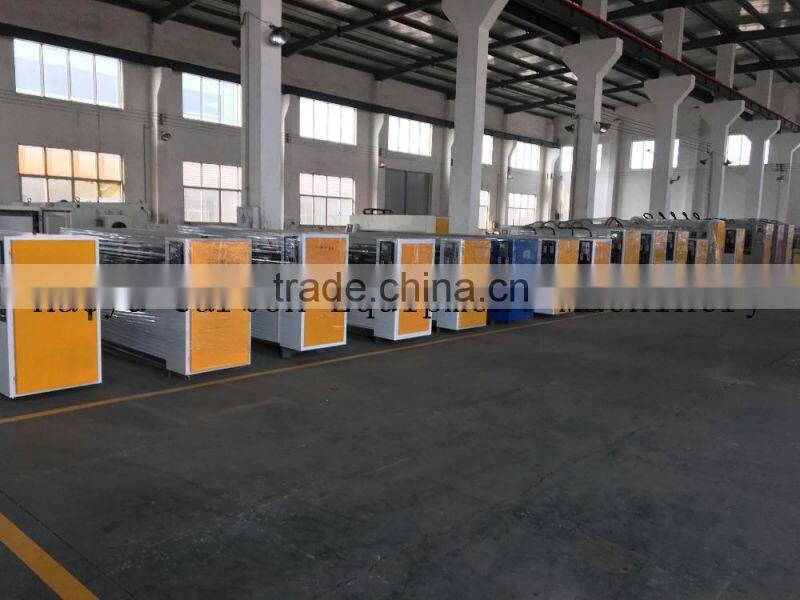

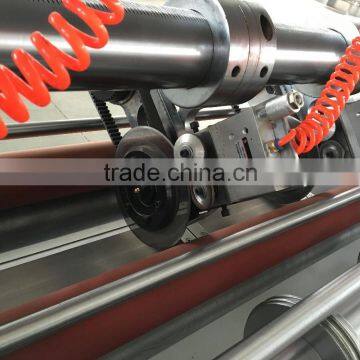

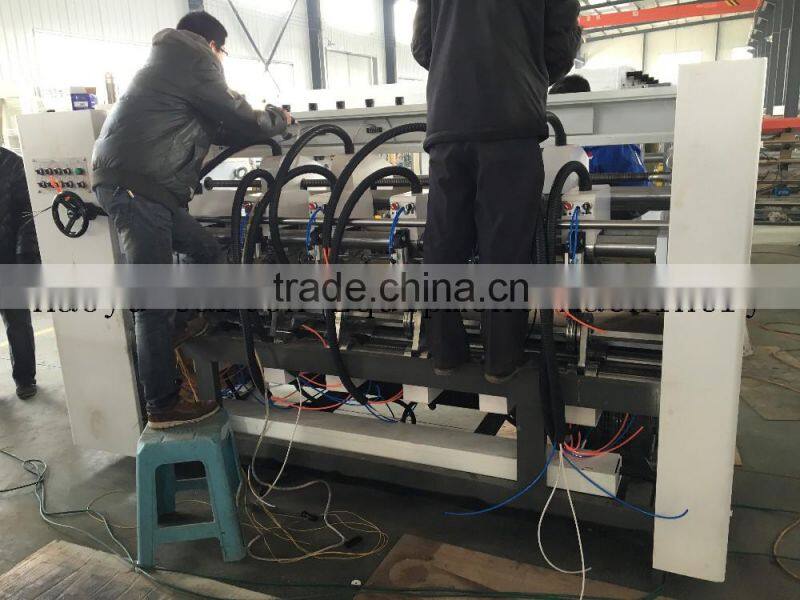

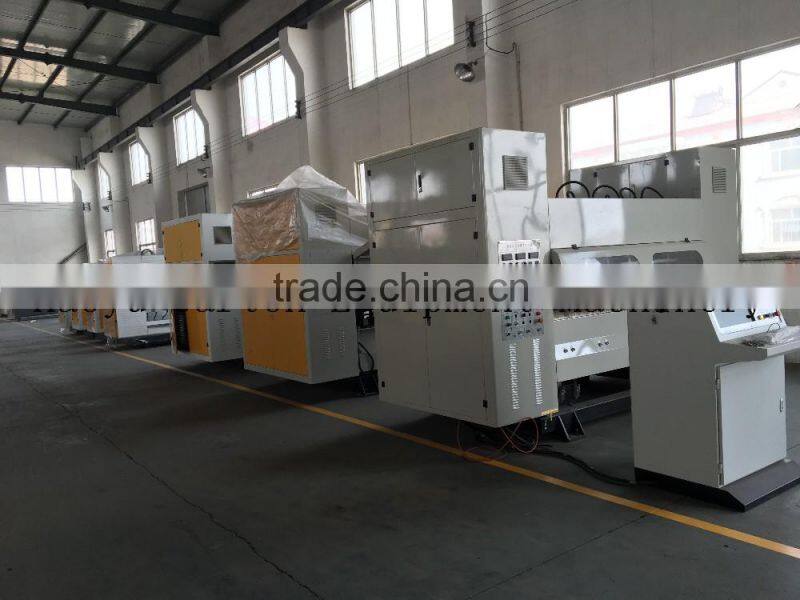

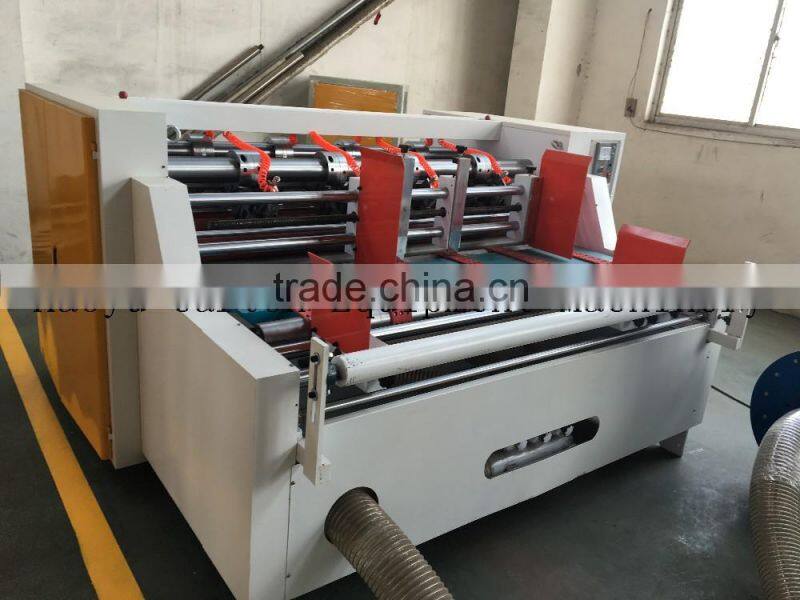

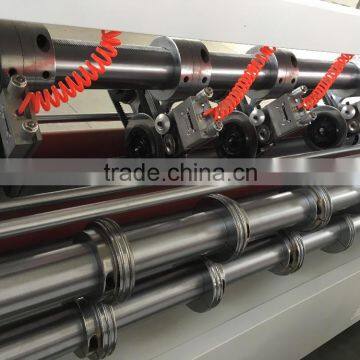

More Picture
