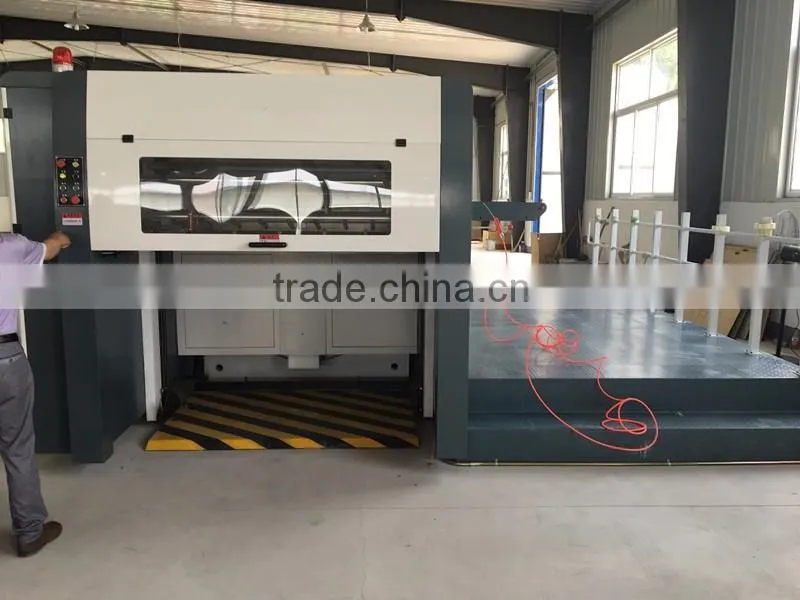

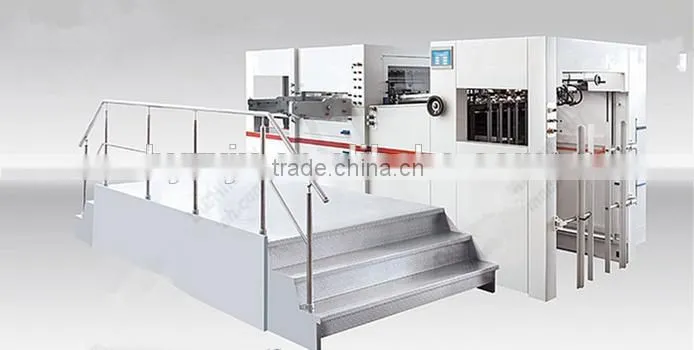

Automatic High Speed Corrugated Paper Die-cutting & Creasing Machine
Main Features
HY-1050A Automatic Diecutting-Cutting and Creasing Machine with the Stripping Station is a newly developed machine according to the analaysis of the advantage and disadvantage of the die-cutting machine and the customer opinions. Stable, durable, safe, humanized design, easy operation is the main idea for developing this model, apply the European CE safety certificate standard, making the great innovation for the frame and whole structure, and the careful improvement for the safety protection, therefore the performance of the machine is more stable, operation is more safe and convenient.
The machine is mainly used for the die-cutting, creasing and cold embossing stripping of the carton box, or label in packaging industry. Especially for the kinds of the advanced prints, such as the cigarette case, wine box, gift box, appliance box, cosmetic box, can be also die-cutting, creasing and cold embossing on this machine, to get the three-dimensional, exquisite beauty of the prints.
This machine adopts numerous advanced pneumatic and servo driving processing technology from home and abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable.
It could Creasing and Die Cutting on different after printing packaging products, such as higher than 90gsm paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper, plastic card, PVC and so on.
Superior ability to adapt and convenient operation which make machine work stable and safety when machine speed reach 7500 sheets per hour. This machine will provide you to enjoy the comfortable operation and faster return on investment.
Main Specification
Model |
HY-1050A |
Max. sheet size(mm) |
1060×770 |
Min. sheet size(mm) |
400×370 |
Max. die cutting size(mm) |
1050×750 |
Max. feeding pile height (mm) |
1350 |
Max. delivering pile height (mm) |
1200 |
Max. working pressure(T) |
300 |
Power rating(KW) |
17.6 |
Paper range |
90 -2000(gsm) (cardboard) 0.1-2mm(cardboard) ≤4mm(corrugated) |
Max. working speed(s/h) |
7500 |
Main motor power(KW) |
11 |
Machine weight(kg) |
16000 |
Gripper Margin(mm) |
8-17 |
Air requirements |
0.6Mpa, >0.37m³/min |
Overall machine dimensions(mm) |
6050×4200×2260 |

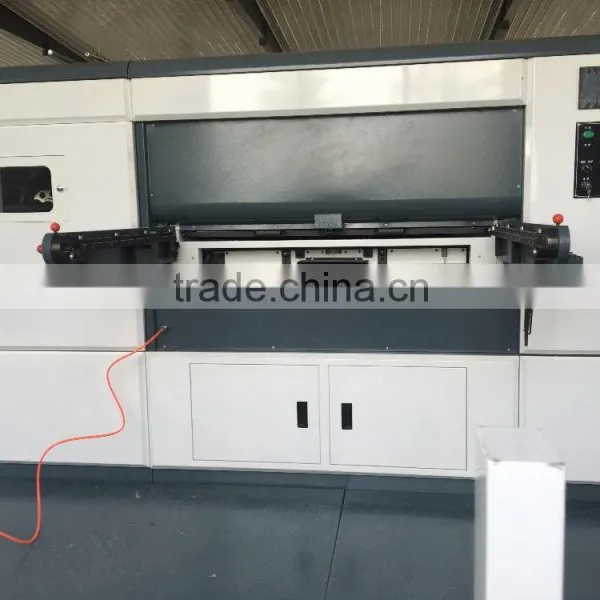

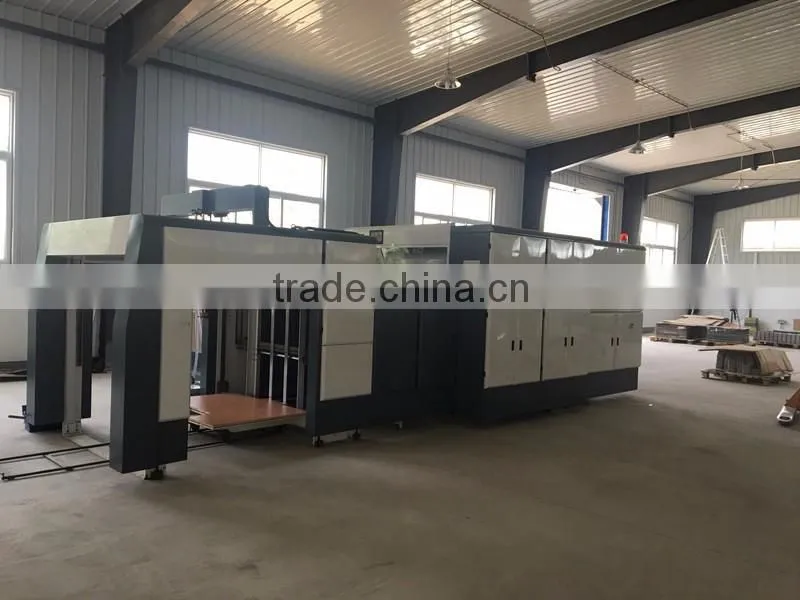

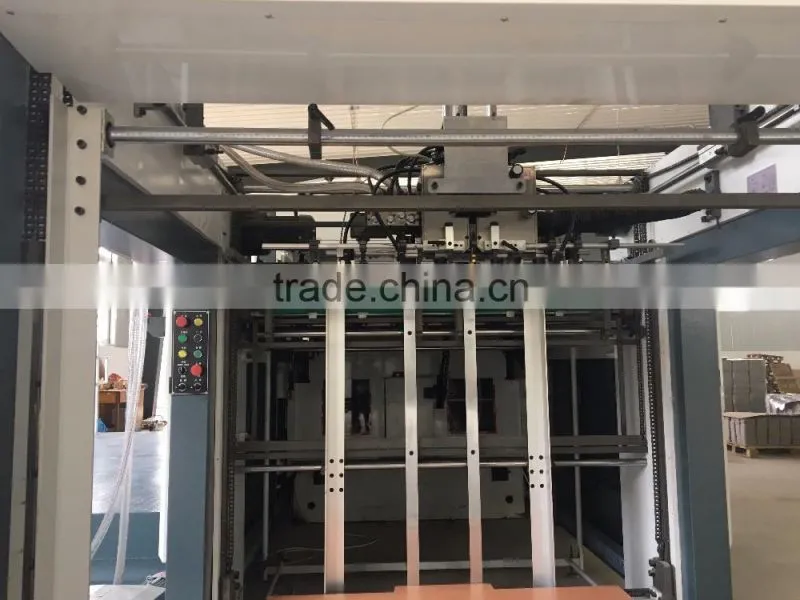

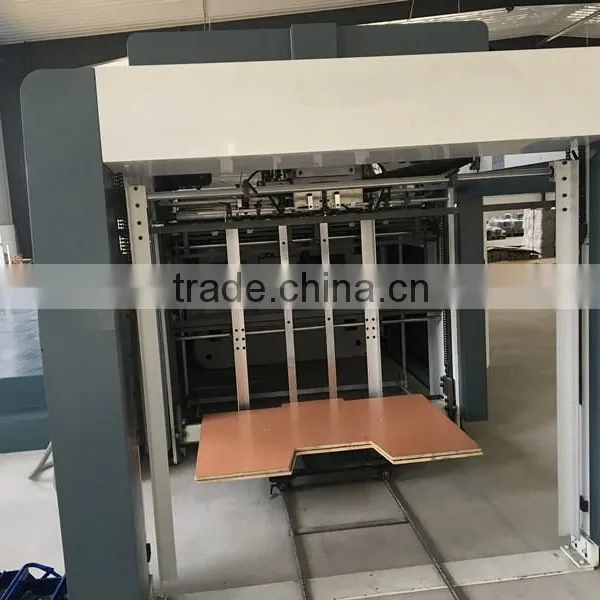

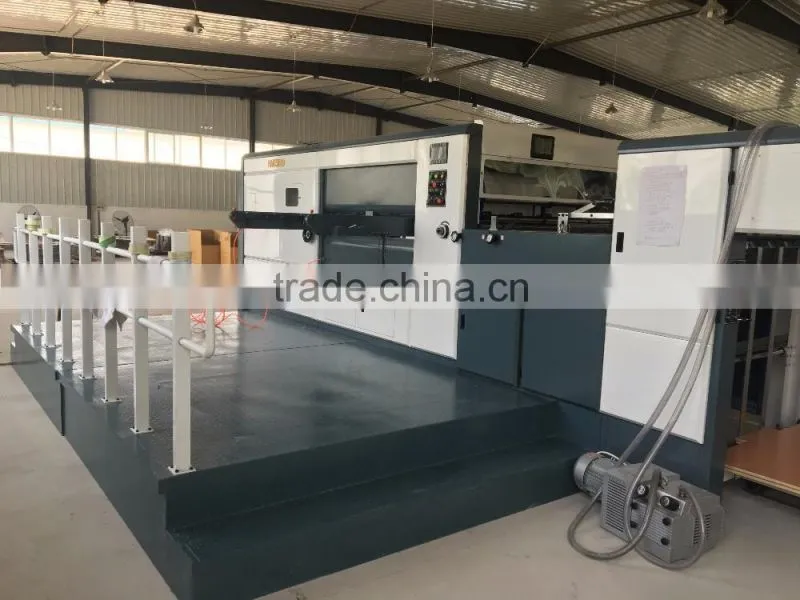

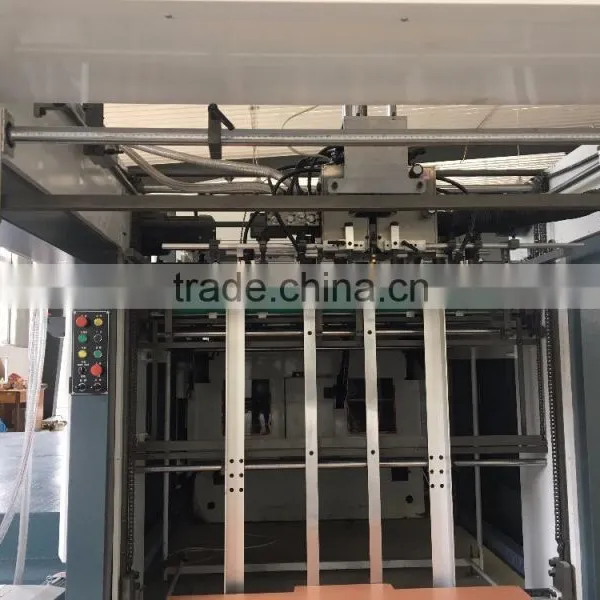

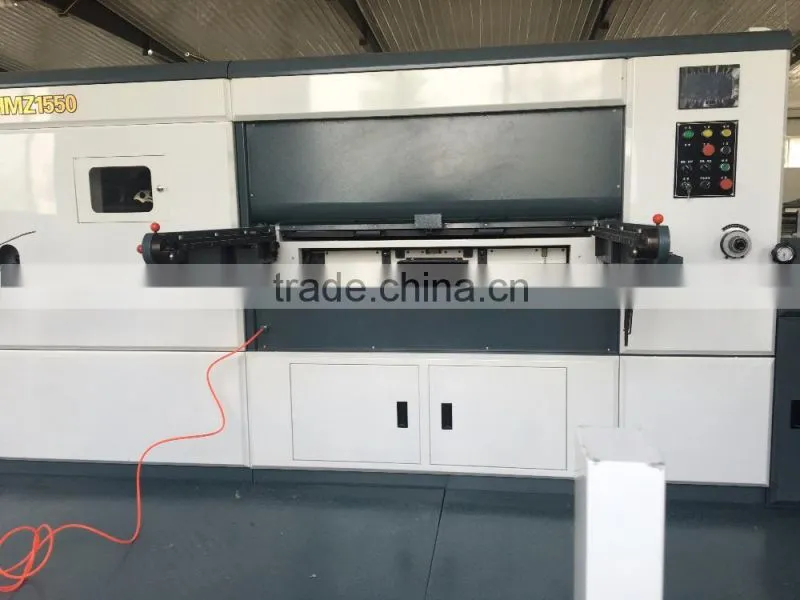

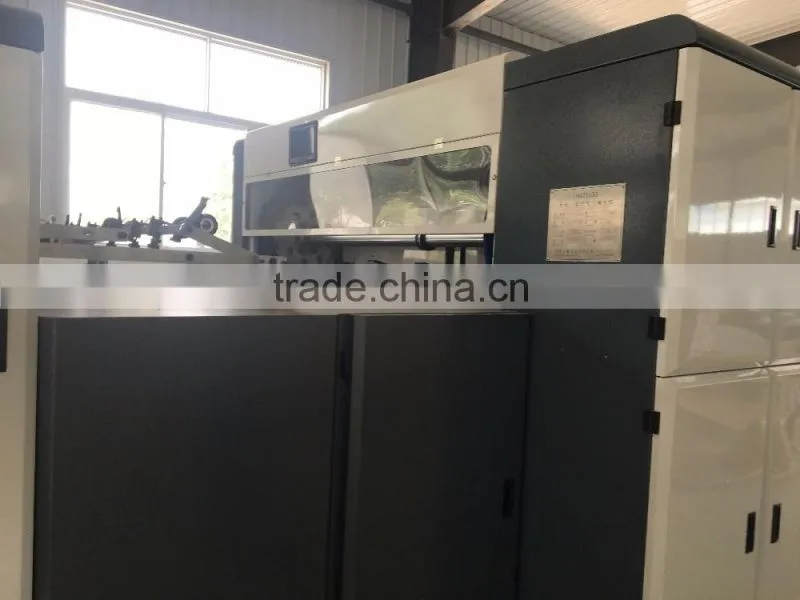

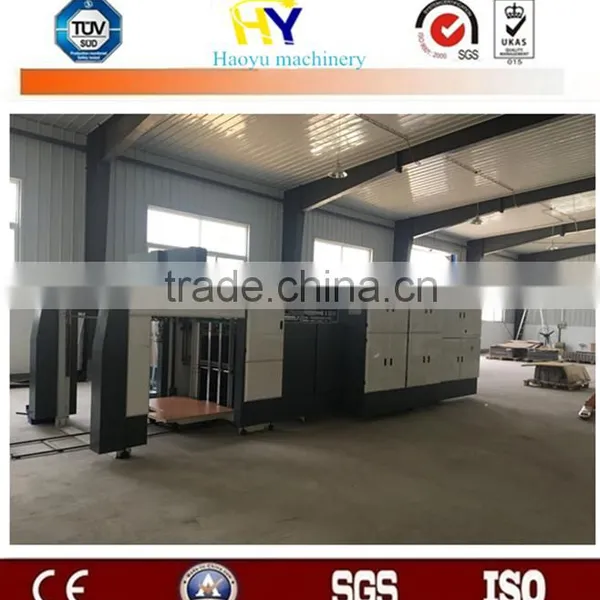

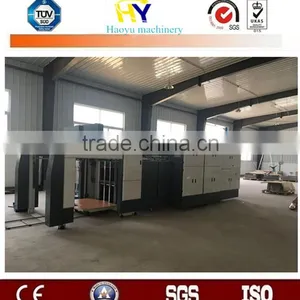

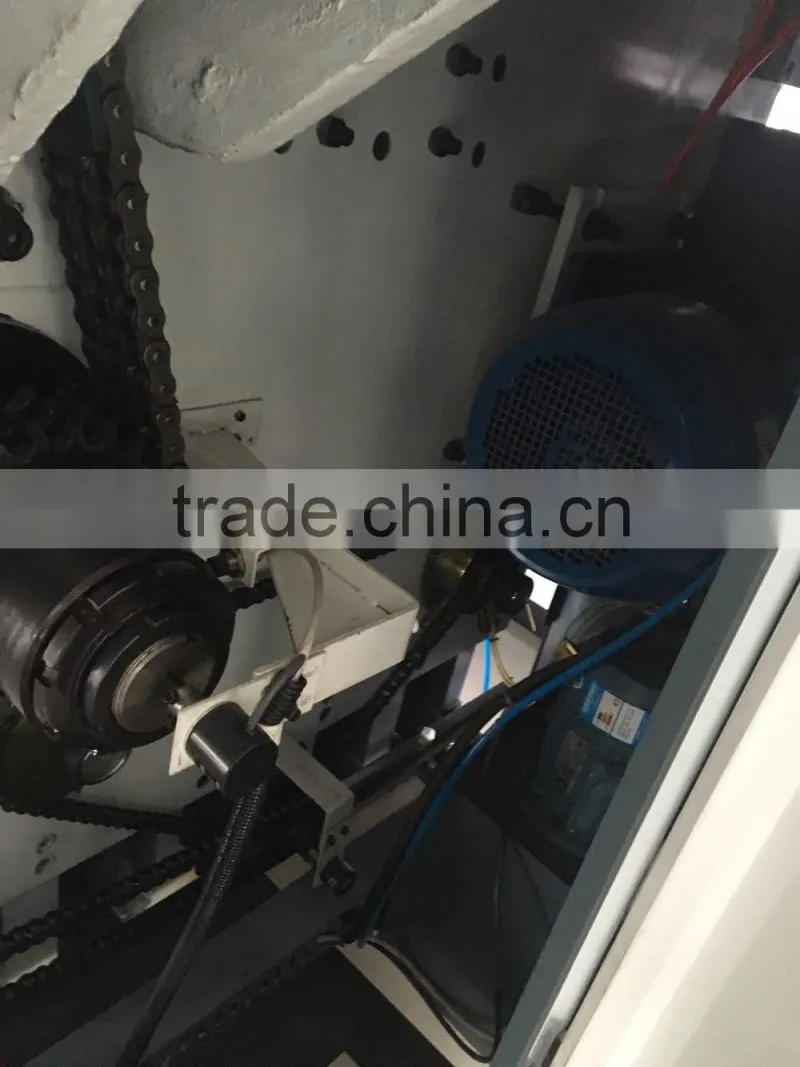

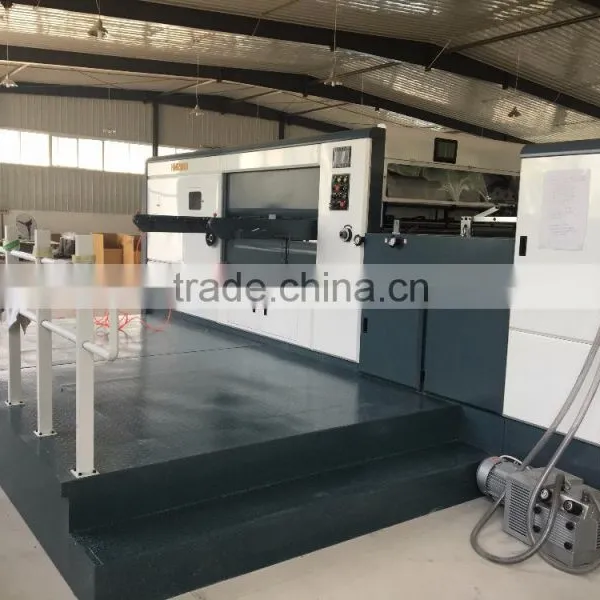

More Picture
Sample Picture
Packaging &Shipping
