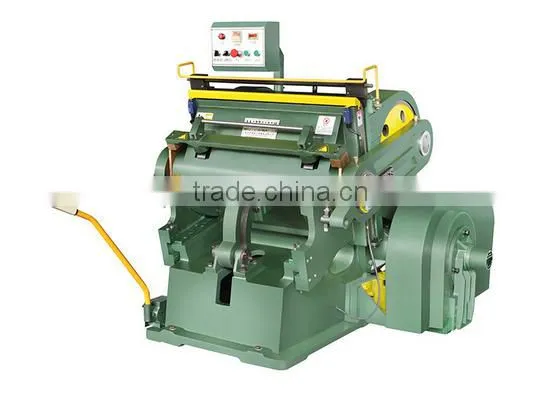

Semi-automatic Die-Cutting and Creasing Machine For Carton Box
- 20 Set / Sets per Month
- Tianjin Port
- T/T
- Carton machinery manufacturer, high-speed ink printing slotting machine, full-automatic high-speed tri color printing die-cutting machine
- Semi-automatic corrugated paper flexo printing machine with slotting
- corrugated box semi-automaitc 4 color printer slotter machine
- Automatic feeding printing slotting die-cutting machine carton printing machine manufacturer
- Paperboard Box Machines Corrugated Carton Flexo Printing Slotting Machine Xinhua Automatic
- Printing Slotter Die Cutter Pizza Paperboard Box Machine High Quality Carton Machines
Product Details
Type: | Die Cutting and Creasing Machine |
Product Description
Description:
HY series hand feed die cutting and creasing machine, also called as clam shell die cutter, is a kind of special equipment for die cutting and creasing a wide range of material, such as paper, cardboard, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries. ML series machine has been well accepted by the customers from domestic and oversea market due to its outstanding performance, reliable in quality, easy for operating and low cost in price.
Features:
1. Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-frication and vibration reducing.
2. Flywheel with big moment of force and large pressure.
3. High strength due to whole iron casting by using high quality material for machine body.
4. Single plate electromagnetic clutch is sensitive and reliable
5. With functions of single piece, continuous and opening delay operating, dwell range is adjustable from 0-99 seconds.
6. Operating position is reasonably designed, moving-bed can be opened to its optimum.
7. Central lubrication system guarantees fine lubrication and reduces friction.
8. Safety protection system is reliable.
9. Easy to operate and maintain
10. Adjustable chase clamp structure can adapt all kind of die mould plate.
11. Electric control system is in line with international standard.
12. CE standard type can be made upon request.
Main specification:
Model | Inner chase size (mm) | Speed (strokes/min) | Max Rule length (m) | Motor power (kw) |
ML710 | 710x510 | 25 | <15 | 2.2 |
ML930 | 930x660 | 23±3 | <25 | 4 |
ML1100 | 1100x790 | 20±2 | <32 | 4 |
ML1300 | 1300x920 | 15±2 | <40 | 5.5 |
ML1400 | 1400x1000 | 15±2 | <45 | 5.5 |
ML1500 | 1500x1040 | 14±2 | <45 | 7.5 |
ML1600 | 1600x1250 | 13±2 | <50 | 11 |
ML1800 | 1800x1280 | 13±2 | <50 | 15 |
ML2000 | 2000x1400 | 13±2 | <50 | 15 |

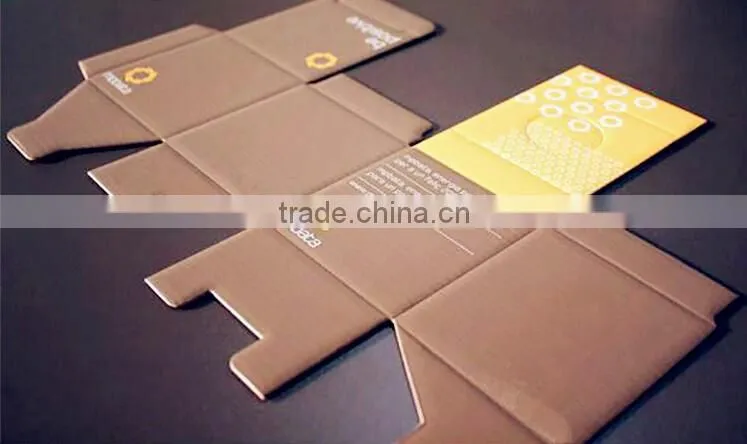

FINISHED PRODUCTS
