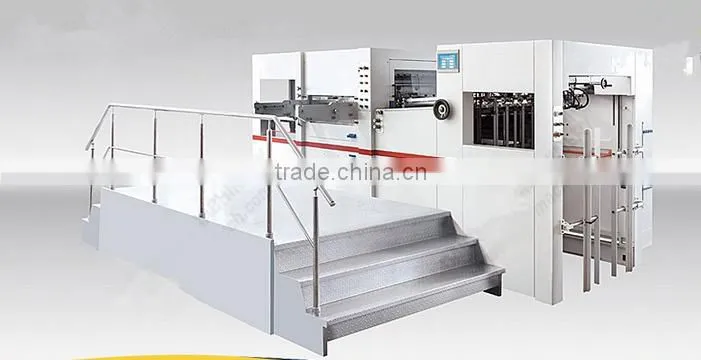

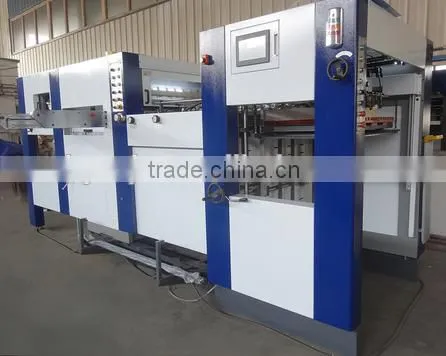

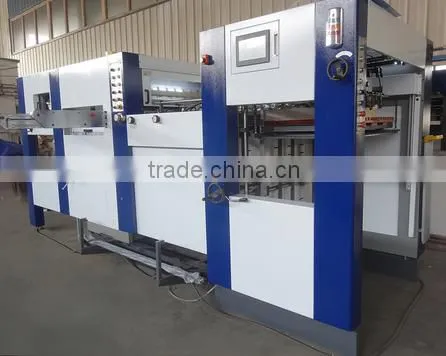

Flat Bed Paper Board Automatic Die Cutting Machine
Automatic die cutting and creasing machine is most ideal equipment, which is designed for die cutting, creasing and cold embossing paper products such as high grade color boxes, corrugated box, paper trademarks etc. Adopted such as high strength dental platoon, entirety swing front lays set, automatic pushing lay set, high-precision indexing mechanism, pneumatic closed up, pneumatic clutch, overpower protection, manual compression relief and automatic paper collecting realized short feeding distance, precise positioning, die cutting stably and collecting paper neatly. But also can for no gripper edge die cutting. The man-machine interface is used to monitor the machine state to display running status, trouble location, troubleshooting. The key components, fastener and control system of the imported products are adopted to ensure operation safe and reliable.
Main specifications:
| model | HY-1020E | HY-1060E | HY-1080E | HY-1100E |
| Max.paper size | 1020x720mm | 1060x760mm | 1080x780mm | 1120x780mm |
| Min. paper size | 400x370mm | 400x370mm | 400x370mm | 400x370mm |
| Max.die-cutting size | 1010x710mm | 1050x750mm | 1070x770 | 1110x770mm |
| 1. Paper board | 120-2000g/m2 | 120-2000g/m2 | 120-2000g/m2 | 120-2000g/m2 |
| rrugated board | ≤5mm | ≤5mm | ≤5mm | ≤5mm |
| Height of paper feeding pile | 1500mm | 1500mm | 1500mm | 1500mm |
| Height of delivery pile | 1220mm | 1220mm | 1220mm | 1220mm |
| Cutting Precision | ≤±0.10mm | ≤±0.10mm | ≤±0.10mm | ≤±0.10mm |
| Min.paper clipper size | 7mm | 7mm | 7mm | 7mm |
| Max.machine speed | 8000sheets/hour | 8000sheets/hour | 8000sheets/hour | 8000sheets/hour |
| Max.die-cutting speed | 7000sheets/hour | 7000sheets/hour | 7000sheets/hour | 7000sheets/hour |
| Max. die-cutting pressure | 300T | 300T | 300T | 300T |
| Power | 17KW | 17KW | 17KW | 17KW |
| Dimensions(L*W*H) | 6500X3900X2150mm | 6750x3900x2200mm | 7650x3900x2150mm | 7800x4000x2150mm |
| Weight | 16T | 16.5T | 17T | 17.5T |
Automatic die cutting machine main features:

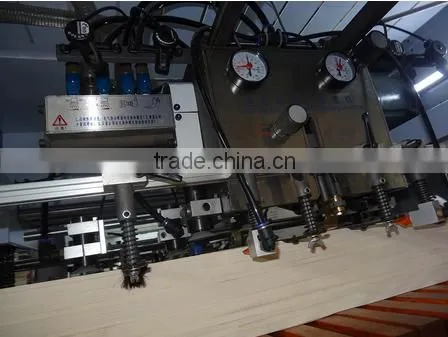

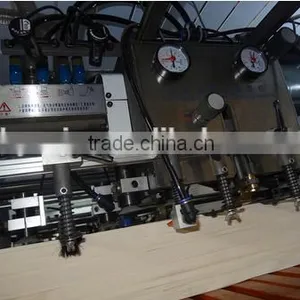

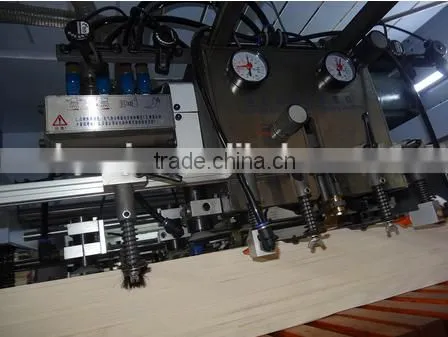

1.Automatic Die-cutting and Creasing Machine Feeder: The feeder adopts the European technology with four suckers and four blowers. The suckers are adjustable to ensure the steady conveying of different type and shape of paper without stopping the machine. The easy to be adjusted functions can do thin and thick paper for an accurate convey.

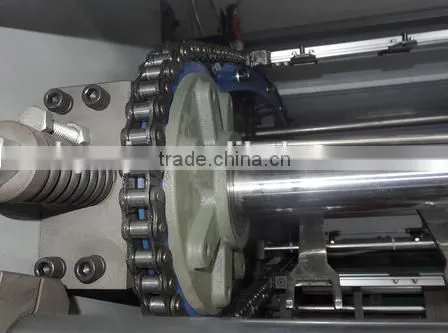

2.Main Chain Drive(Torque Limiter):The imported divider and clutch makes the chain to run intermittently to ensure the safety to operator and reduce the damages to the machine.
3.Driving Shaft: All the driving shafts are adopted the steel alloy with high intensity and stability.

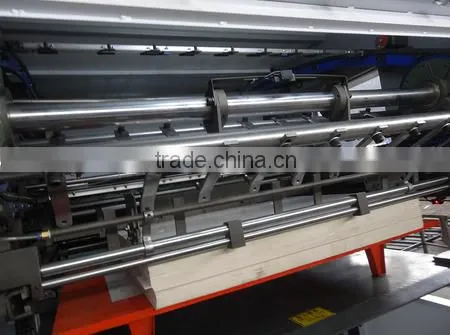

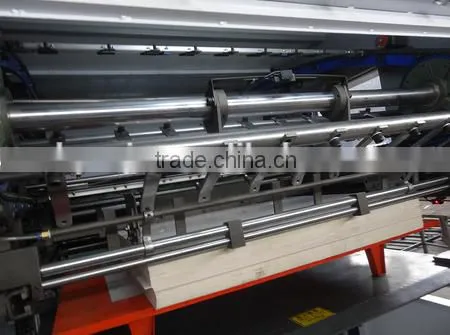

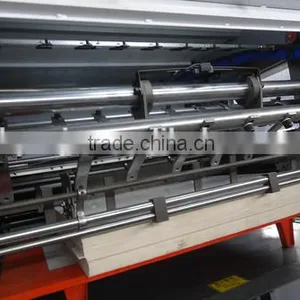

4.Paper Conveying Part: The pressure of the paper conveying belt can easily be adjusted to ensure the constant conveying of paper to the desired position with little break down time. The paper conveying belts are imported and rubber pressers and the hair pressers are high wear resisting.
5.Lubricating and Cooling System: The Lubricate system automatically with low-pressure alarm. The high power cooler can ensure the oil work at constant temperature.
6.Pneumatic Clutch: It adopts Italian pneumatic clutch and German FESTO pneumatic component with high torque and precision.
7.Worm and Crank Shaft: They adopts high quality steel alloy and specially processed to ensure high precision, long working hours and low abrasion.

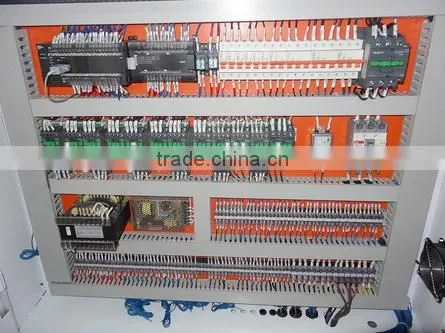

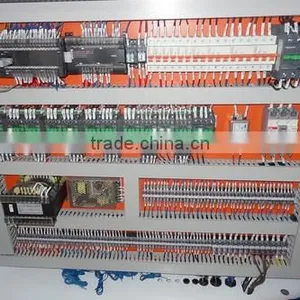

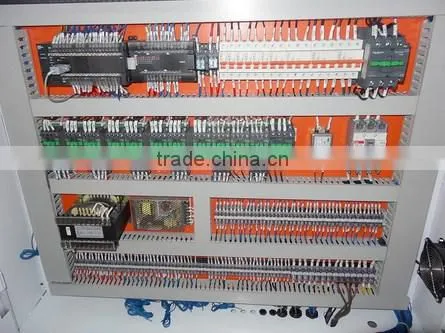

8.Electric Control: The machine is controlled by OMRON PLC. All the electric parts are either from Japan, France, Germany or Taiwan, The man machine interface provides accurate working states of the machine.
9.Main Motor: It is imported from Germany and made by Siemens with the feature of high power and low energy consumption.
10.Paper Feeding System: The motor adopts USA.-made, with the feature of high torque and stability.
11.Worm gear: It adopts bronze alloy from Taiwan. It has the feature of high precision, low noise and low abrasion.
12.Die-Cutting Part: The Die and the die-cutting plate are specially designed for safe, easy to operate. The pneumatic locking device makes the fixing of the plate strong, accurate and time-saving.
