Specifications
- High Quality 1000kW diesel generator Details- Cummins OEM manufacturer
- 100% Copper wire
- Promptly delivery time

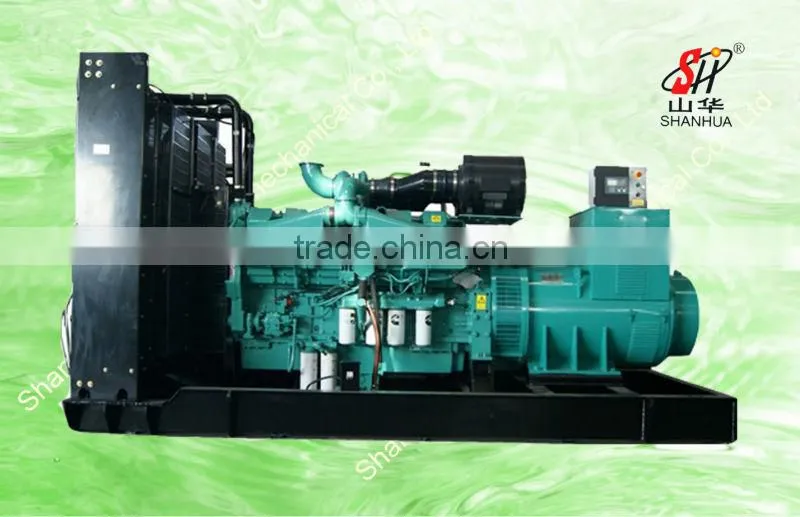

High Quality 1000kW diesel generator Details
Genset :
Model: HL1000GF
Prime Power (kVA / kW): 1250/1000
Standby Power (kVA / kW): 1375/1100
Rated Ammeter (A): 1800
Dimensions (mm) (L×W×H): 5650×2060×2330
Net Weight (kg): 9800
Engine:
Manufacturer: CCEC
Model: KTA50-G3
Number of cylinders: 16
Aspiration: Turbo
Bore×Store(mm):159 × 159
Compression ratio: 13.9:1
Displacement, total (L): 50.3
Speed Governor: Electric
Cooling System: Forced Water Cooling Cycle
Fuel Consumption at 100% Load (L/h): 254
Starting Method: DC24V electrical starting
Alternator:
STAMFORD, MARATHON, SHANHUA, 3 Phase and 4 Wires, 100% copper wire Brushless, Self-exciting,
IP21-IP23, and Insulation Class: H
Control System:
Smartgen (HGM6110, HGM6320) DeepSea (DSE7320,DSE7510) , ComAp (AMF20 , AMF25,MRS10)
Products Exhibition :
Production Line :
Cooperations :
Test Center:
The items been tested on the diesel generators are mainly as follows:
1) Each diesel generator is tested more than 4 hours totally. They are tested on idle load, load, fully load and 10% overload.
2) The noise level is tested.
3) Operation of the various meters on the control panel is tested.
4) The diesel generator appearance and all marks are checked as well.
Certificates :
Office :
Contact Us :
