Specifications
- three phase standby diesel generators set- Cummins OEM factory
- 100% copper wire
- Stamford/Shanhua/Marathon
three phase standby diesel generators set
Specification of genset :
Genset model:HL1200GF
Prime power: 1200kW/1500kVA
Standby power: 1320kW/1650kVA
Power factor: 0.8
Rated Voltage: 400/230V
Rated frequency (HZ): 50
Dimensions (mm) (L×W×H): 5900×2200×2900
Weight (kg): 11000
Specification of diesel engine :
Engine Model: KTA50-GS8
Manufacturer: Commins
Governor: E
Air intake way: Turbo-charged
Cylinders/Arrangement: 16/V
Bore× Stroke(MM): 159×159
Fuel Consumption Rate(L/h): 309
Lubricating oil capacity(L): 204
Coolant capacity (L): 380
Compression ratio: 13.9:1
Displacement, total (L): 50.3
Net weight (kg): NA
Engine speed (rpm): 1500
Max Power (kW): 1429
Starting Method: DC24V electrical starting
Specification of alternator :
Alternator model: HLF1200
Connecting Type: 3 Phase and 4 Wires
Number of Bearing: 1
Protection Grade: IP21
Altitude: ≤1000m
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class: H
Telephone Influence Factor (TIF): ≤50
Voltage Regulation, Steady State: ≤±1%
Transient State Voltage: ≤-15%~+20%
Control System :
Operating temperature: -20°C~60°C
Relative Humidity: 95%
Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )
Standard functions: Engine Control/Generator Monitoring/Generator Protection/
Engine Monitoring/Clear Text Display
Shutdown: Loss of Speed Signal Alternator Under / Over Voltage,Alternator Under/ Over Frequency,
Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)
Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

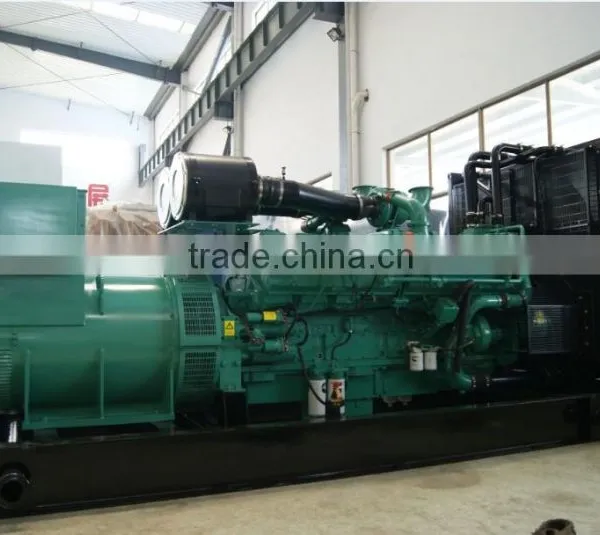

Finished Products :
Certificates :
Dubai Exhibition :
Contact Us :
