Creasing and Die Cutting Machine
More Feature
1) High strength due to whole body casting with high quality material.
2) Smooth running, high pressure and low noise with 3-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Electrical system is designed in conformity with IEC standard.
6) Single, continuous operation and opening delay are available, delay range adjustable.
7) Reliable safety system.
8) Adjustable chases with moveable bar.
Specification
Model |
Inner Chase Size |
Speed |
Max. Rule Length |
Motor Power |
Machine Weight |
Packing (overall) Dimensions |
HY750 |
750*520mm |
25 |
<15m |
2.2kw |
2000kg |
1650*1400*1500mm |
HY930C |
930*670mm |
23±3 |
<25m |
4kw |
3000kg |
1750*1900*1700mm |
HY930A |
930*670mm |
23±3 |
<30m |
5.5kw |
3500kg |
1850*1950*1700mm |
HY1040 |
1040*720mm |
23±3 |
<28m |
4kw |
3500kg |
2000*2010*1900mm |
HY1100A |
1100*800mm |
22±2 |
<35m |
7.5kw |
5000kg |
2000*2010*1900mm |
HY1100 |
1100*800mm |
20±2 |
<30m |
5.5kw |
4500kg |
2020*2010*1900mm |
HY1200 |
1200*820mm |
20±2 |
<32m |
5.5kw |
5000kg |
2020*2020*1950mm |
HY1300 |
1300*920mm |
15±2 |
<40m |
7.5kw |
6000kg |
2600*2100*1950mm |
HY1400 |
1400*1000mm |
15±2 |
<45m |
7.5kw |
6500kg |
2600*2100*1950mm |
HY1500 |
1500*1050mm |
14±2 |
<45m |
7.5kw |
7000kg |
2650*2100*2000mm |
HY1500G |
1500*1150mm |
14±2 |
<45m |
7.5kw |
7300kg |
2650*2100*2050mm |

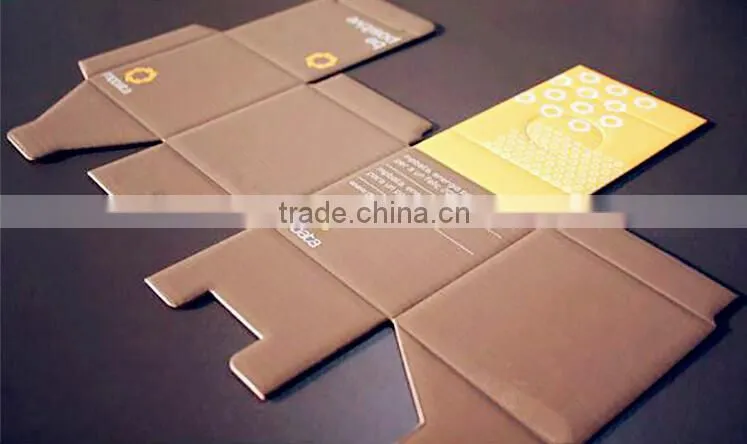

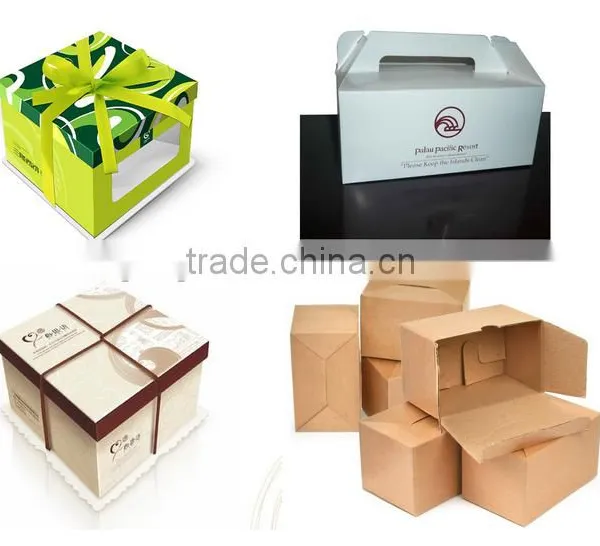

Sample Picture
