Automatic Carton Stacker Machine
Model |
2000 |
2200 |
2500 |
|
Machine dimension(mm) |
3200*1100*2200 |
3500*1100*2200 |
3700*1100*2200 |
|
Power |
7.6kw |
7.6kw |
7.6kw |
|
Max slitting |
Inverse blade |
1900mm |
2200mm |
2300mm |
Positive blade |
1800mm |
2100mm |
2200mm |
|
Min slitting |
Inverse blade |
305mm |
305mm |
305mm |
Positive blade |
140mm |
140mm |
140mm |
|
Min scoring |
Positive scoring |
30mm |
30mm |
30mm |
Inverse scoring |
80mm |
80mm |
80mm |
|
Scoring height |
0-10mm |
0-10mm |
0-10mm |
|
Blade(mm) |
φ200*122*1.2 |
φ200*122*1.2 |
φ200*122*1.2 |
|
Blade & Scoring |
Three blade Four scoring/ Four blade |
|||
Advantages
1, Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2, Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
3, Grinding Part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.
4, Electric control lift-down and correct error, easy to operate, suit for different requirements.
5, Adopt China famous brand or imported electric element, dependable performance.
6, Adopt synchronous belt drive, low noisy and work steady.
7, It could be adopts double machine type, easy and fast change cutting order.
8, Max running speed for production line:150m/min

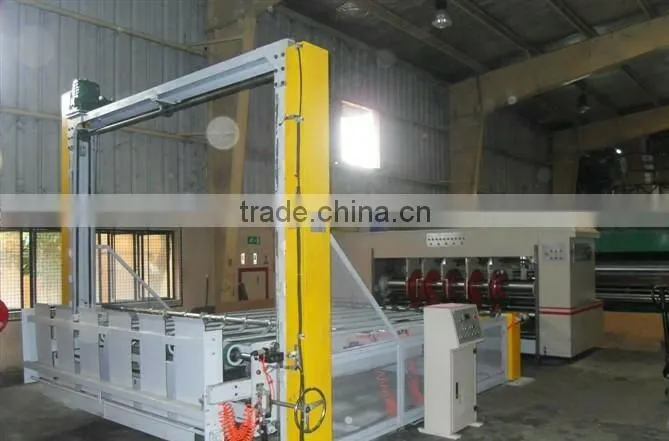

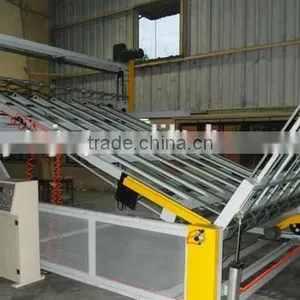

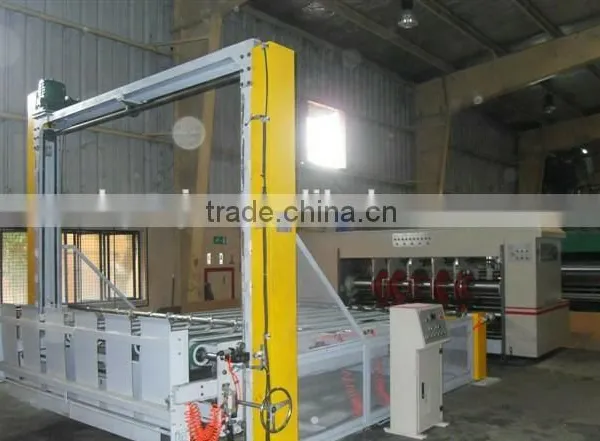

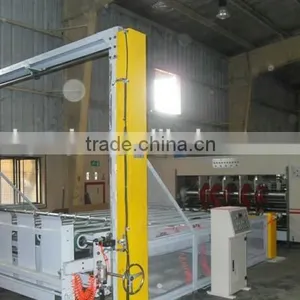

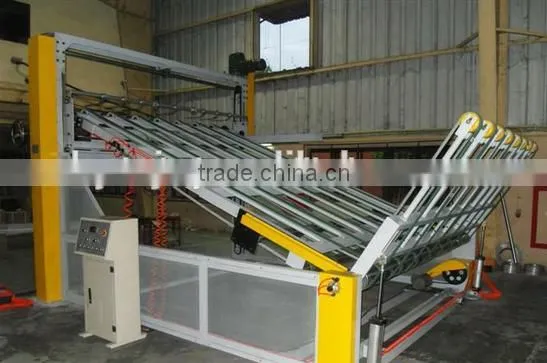

stacker part :
1. Machine platfrom part rise and down
1) Adopt photoelectric control platfrom rising and down,safe fuction device
installed protect the worker,
2) adopt the strength chain drive, paper pileing height 1600mm
2.paper taking arm
1) pneumatic adjustement paper taking arm.
2)paper taking arm can collect and release and alone adjust the tight.
3)Transimission belt.
1) adopt tooth type strength belt. Gurantee Friction and service life
4.paper blocking holdeR
When the paper hurrying collect ,not need stop the machine, paper block auto rise ,
after the collect the paper ,paper block auto fall down, not inflence the production.
