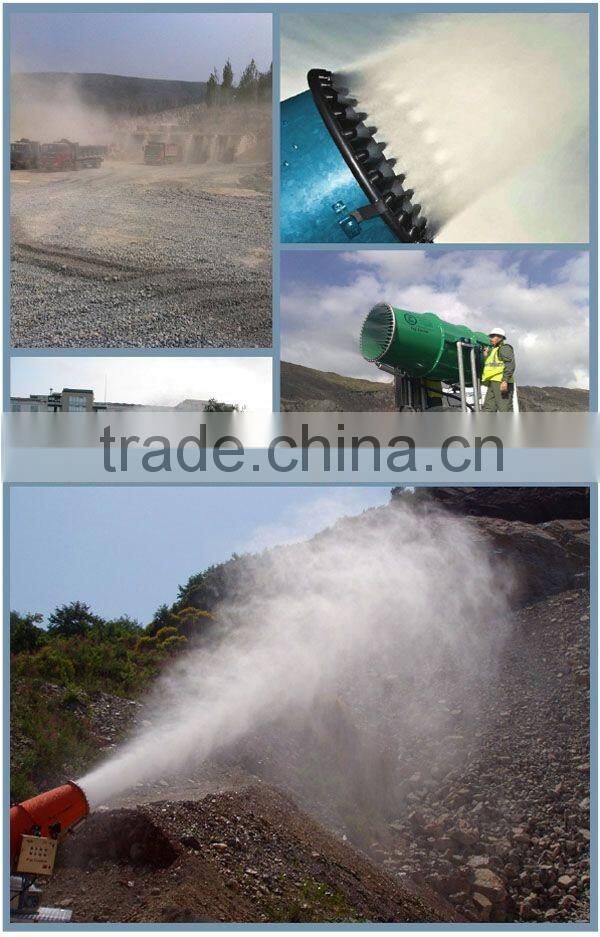

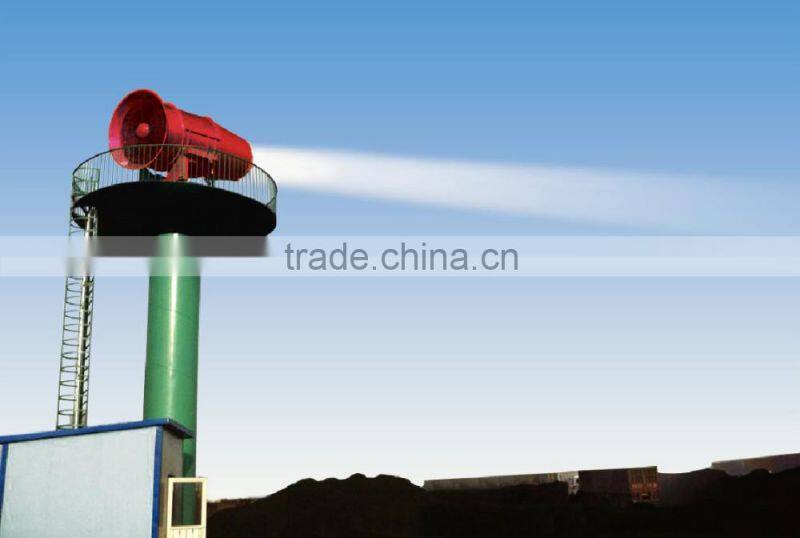

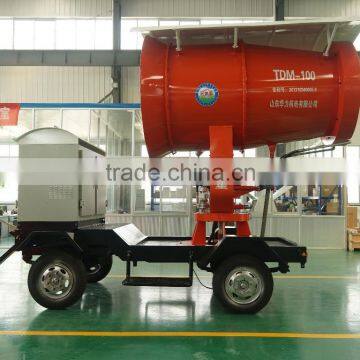

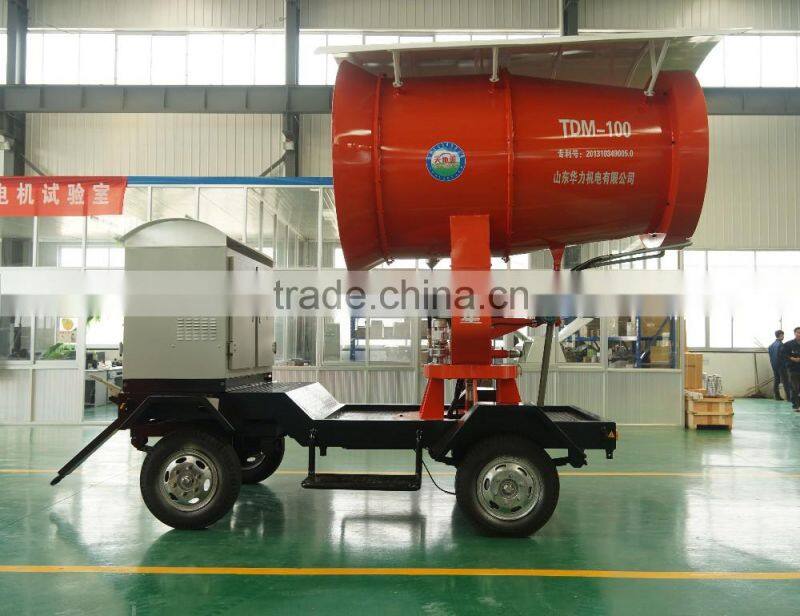

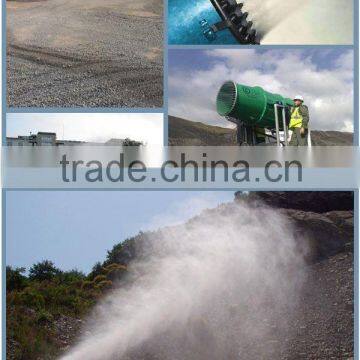

60meters water spray cannon:
Intelligent environmental spray cannon, using the Bernoulli principle, i.e. The same fluid, flow rate is strong, and pressure is small; Flow rate is small, pressure is strong. Fluid will flow automatically to low pressure from high pressure. Through “Y” pipe, the low flow water flows to the high velocity air. Water is ripped to a small drop by high velocity air, then small droplets spray become fog.
Shandong Huali Electromechanical Co.,Ltd, professional manufacturer of diesel generator set, Intelligent environment spray cannon. We have been in this area for about 17years. We have more technology about gensets and water spray cannon.

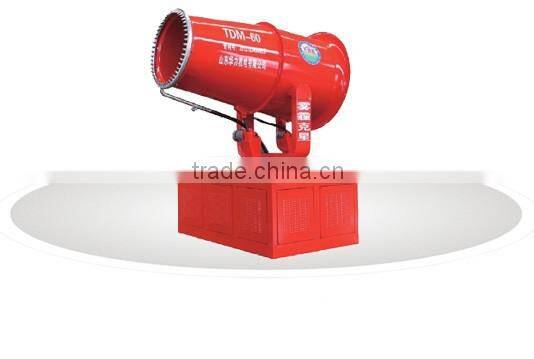

60Meters Fixed Spray Cannon | ||||
Name |
Intelligent Environmental Spray Cannon |
|||
Model |
TDM-60 |
|||
Max horizontal throw distance |
60Meters |
|||
Total power |
Fan:22KW; Pump:11KW |
|||
Motor |
National Energy Efficiency Secondary Grade |
|||
LGLEM Motor(50HZ/1500r) | ||||
Pump pressure |
1.6MPa |
|||
Air pressure |
1000Pa |
|||
Air flow |
800m³/min |
|||
Fan |
German PAG Soundproof Fan |
|||
Water consumption: |
4m3/h |
|||
Atomized particle: |
30~150μm |
|||
Horizontal turning degree |
±180° (Adjustable) |
|||
Pitching degree: |
-10°- 45° |
|||
Applicable ambient: |
0℃-50℃ or -20℃-50℃ |
|||
Power supply |
AC380V 50Hz( Diesel generator set is also optional) |
|||
Control mode |
wireless remote control, distance can be 100 meters) |
|||
