Specifications
- 200KW China Yuhchai diesel generator set- Yuchai OEM factory
- 100% copper wire alternator
- Stamford/Shanhua/Marathon

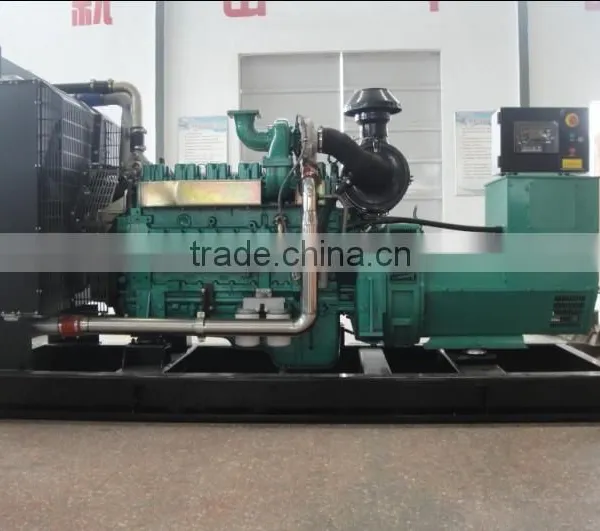

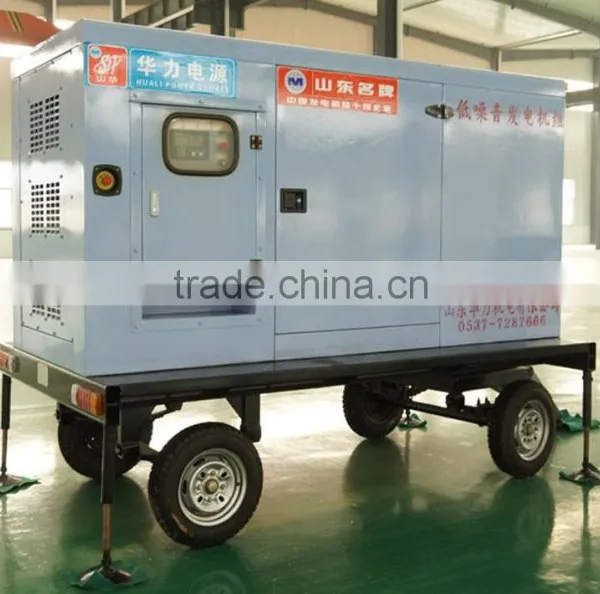

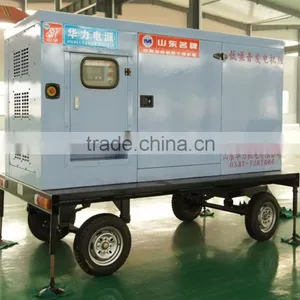

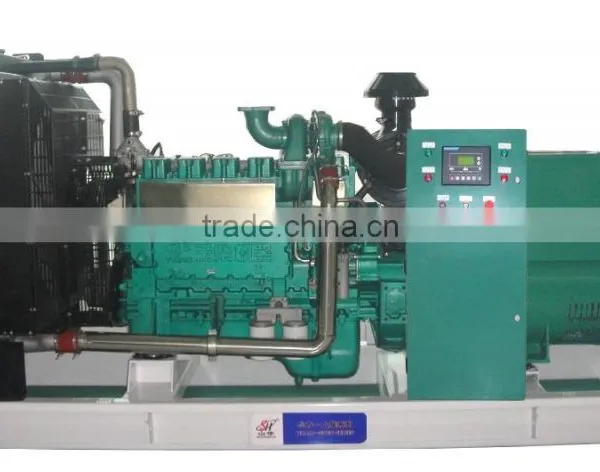

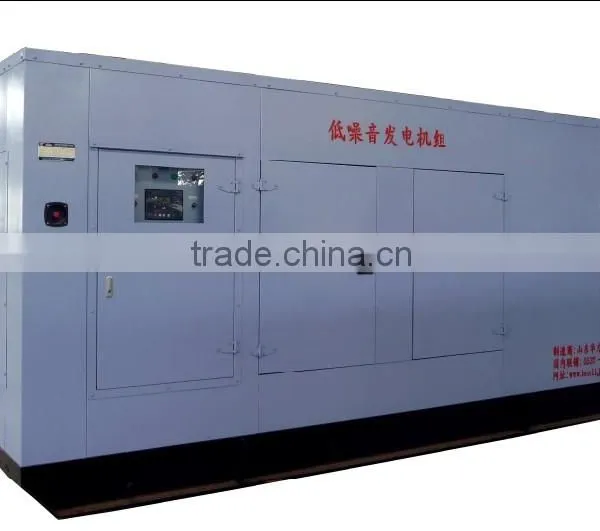

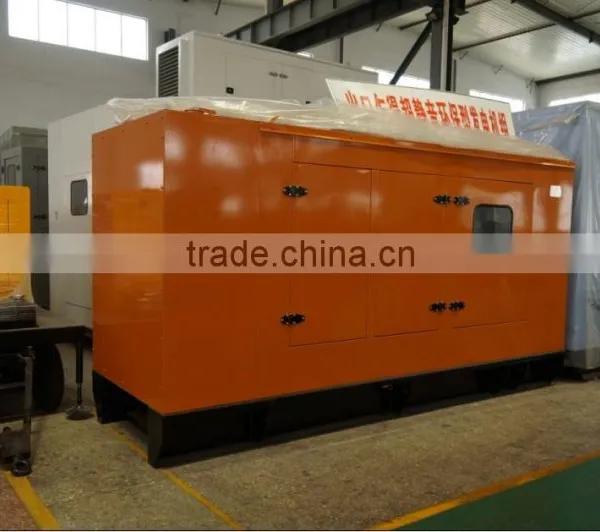

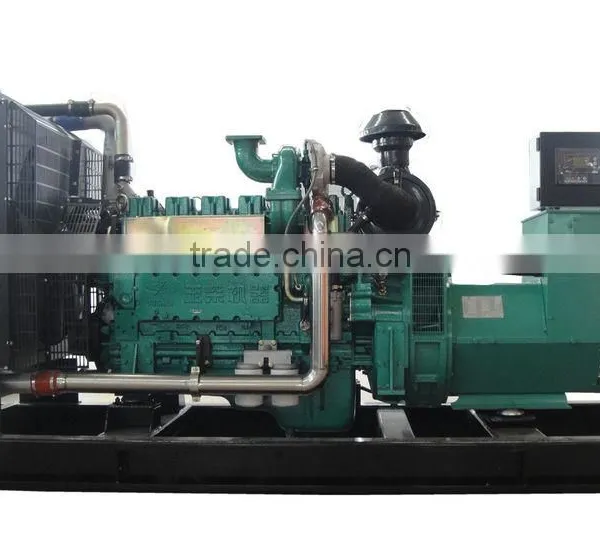

200KW China Yuhchai diesel generator set
Specification of genset :
Genset model:HL200GF
Prime power: 200kW/250kVA
Standby power: 220kW/275kVA
Power factor: 0.8
Rated Voltage: 400/230V
Rated frequency (HZ): 50
Dimensions (mm) (L×W×H): 2950×1050×1665
Weight (kg): 2085
Specification of diesel engine :
Engine Model: YC6M350L-D20
Manufacturer: YUCHAI
Governor: M/E
Cylinders/Arrangement: 6/L
Bore× Stroke(MM): 120×145
Fuel Consumption Rate(L/h): 197
Lubricating oil capacity(L): 28
Compression ratio: 17.5:1
Displacement, total (L): 9.84
Net weight (kg): 370
Engine speed (rpm): 1500
Max Power (kW): 258.5
Starting Method: DC24V electrical starting
Specification of alternator :
Alternator model: HLF200
Connecting Type: 3 Phase and 4 Wires
Number of Bearing: 1
Protection Grade: IP21
Altitude: ≤1000m
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class: H
Telephone Influence Factor (TIF): ≤50
Voltage Regulation, Steady State: ≤±1%
Transient State Voltage: ≤-15%~+20%
Control System :
Operating temperature: -20°C~60°C
Relative Humidity: 95%
Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )
Standard functions: Engine Control/Generator Monitoring/Generator Protection/
Engine Monitoring/Clear Text Display
Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,
Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)
Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance
Finished products :
Packing type :
Certificates :
Dubai Exhibition :
Contact Us :
