Specifications
- huali 60Hz Diesel Generator set- Cummins OEM factory
- 100% copper wire
- Just-In-Time delive

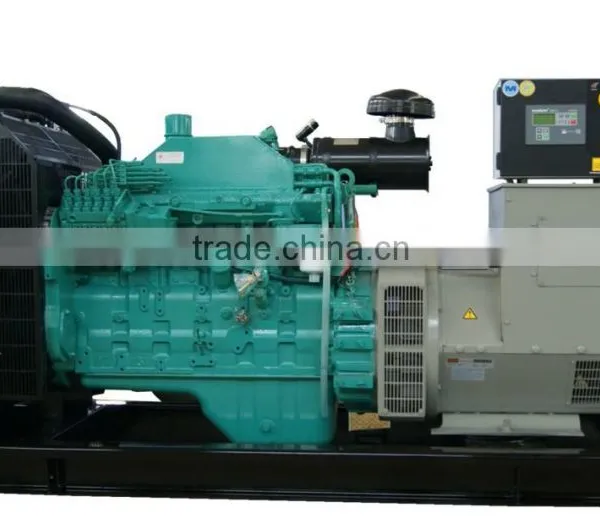

huali 60Hz Diesel Generator set
Specification of genset :
Genset model:HL160GF
Prime power: 160kW/200kVA
Standby power: 176kW/ 220kVA
Power factor: 0.8
Rated Voltage: 400/230V
Rated frequency (HZ): 50
Dimensions (mm) (L×W×H): 3500×1800×2000
Net Weight (kg): 2650
Specification of diesel engine :
Engine Model: 6CTAA8.3-G2
Manufacturer: DCEC
Governor: E
Air intake way: Turbo-charged
Cylinders/Arrangement: 6/L
Bore× Stroke(MM): 114×135
Fuel Consumption Rate(L/h): 45.4
Lubricating oil capacity(L): 23.8
Coolant capacity (L): 30.1
Compression ratio: 17.3:1
Displacement, total (L): 8.3
Net weight (kg): 773
Engine speed (rpm): 1500
Max Power (kW): 203
Starting Method: DC24V electrical starting
Specification of alternator :
Alternator model: HLF160
Connecting Type: 3 Phase and 4 Wires
Number of Bearing: 1
Protection Grade: IP21
Altitude: ≤1000m
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class: H
Telephone Influence Factor (TIF): ≤50
Voltage Regulation, Steady State: ≤±1%
Transient State Voltage: ≤-15%~+20%

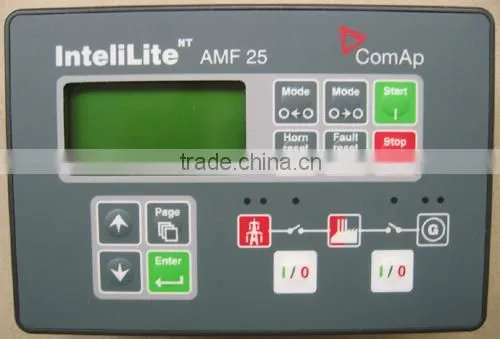

Control System :
Operating temperature: -20°C~60°C
Relative Humidity: 95%
Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )
Standard functions: Engine Control/Generator Monitoring/Generator Protection/
Engine Monitoring/Clear Text Display
Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,
Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,High Engine
Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)
Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,Mains
Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

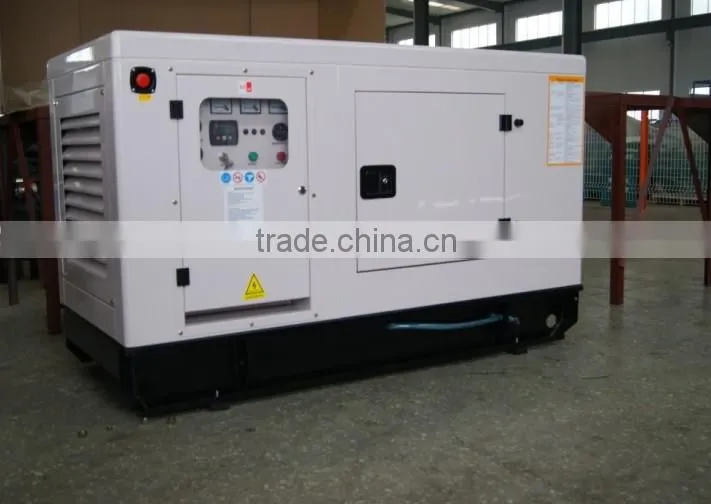

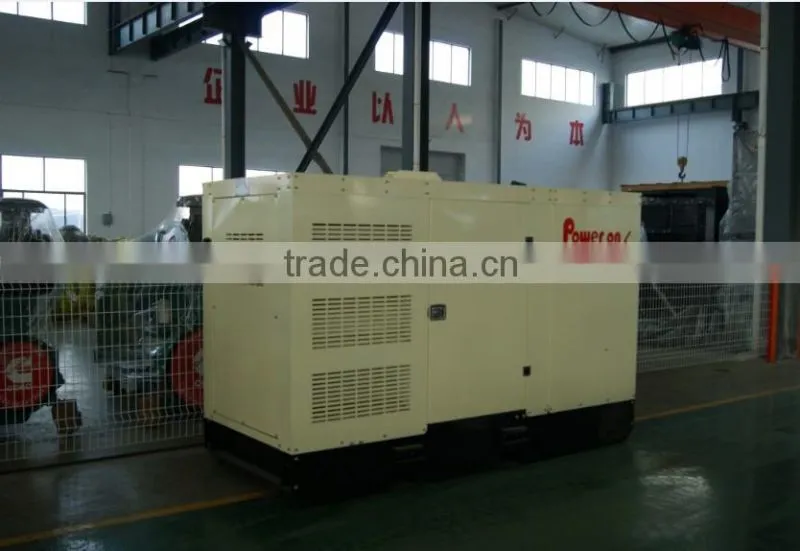

Products Exhibition :

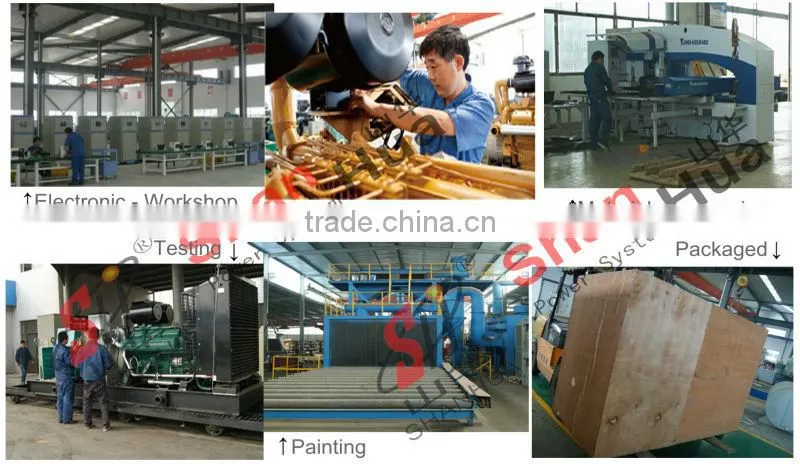

Production line :
2000KW Power generator installation Case :
Dubai Exhibition :
Contact Us :
