Automatic Transfer Switch for Generator Set 1200kw

Automatic Transfer Switch for Generator Set 1200kw thumbnail-1
Automatic Transfer Switch for Generator Set 1200kw photo-1
US$ 208,000 - 220,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Shanhua
Model Number:
HL1200GF
Contact Supplier Request Quote Chat Now
Shandong Huali Electromechanical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Shanhua
Model Number HL1200GF
Output Type AC Three Phase
Speed 1500RPM
Frequency 50Hz
Rated Power 1200kW/1500kVA
Rated Voltage 380/220V 400/230V
Rated Current 2160A

Specifications

- automatic transfer switch for generator set 1200kw
- Cummins OEM
- 100% copper wire
- Factory supply

 automatic transfer switch for generator set 1200kW

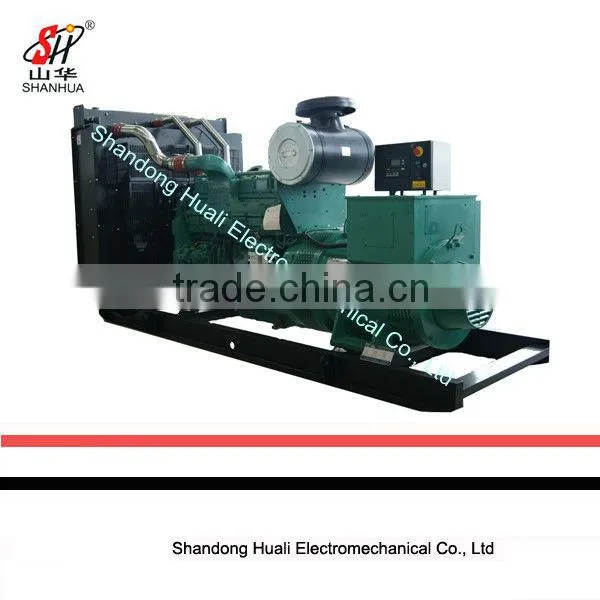

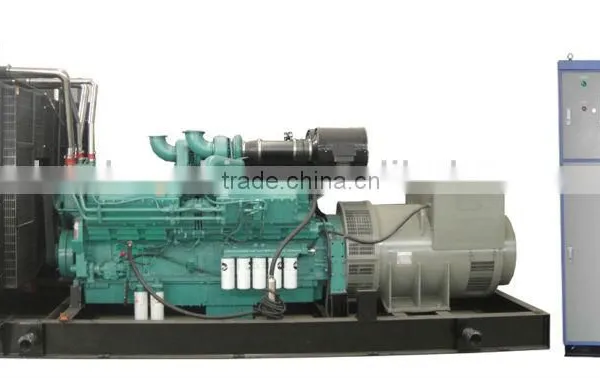

Specification of genset



Genset model:HL1200GF



Prime power: 1200KW/1500KVA



Standby power: 1320KW/1650KVA



Power factor: 0.8



Rated Voltage: 400/230V



Rated frequency (HZ): 50



Dimensions (mm) (L×W×H): 5900×2200×2900



Weight (kg): 11000



Specification of diesel engine



Engine Model: KTA50-GS8



Manufacturer: Commins



Governor: E



Air intake way: Turbo-charged



Cylinders/Arrangement: 16/V



Bore× Stroke(MM): 159×159



Fuel Consumption Rate(L/h): 309



Lubricating oil capacity(L): 204



Coolant capacity (L): 380



Compression ratio: 13.9:1



Displacement, total (L): 50.3



Net weight (kg): NA



Engine speed (rpm): 1500



Max Power (kW): 1429



Starting Method: DC24V electrical starting



 Specification of alternator



Alternator model: HLF1200



Connecting Type: 3 Phase and 4 Wires



Number of Bearing: 1



Protection Grade: IP21



Altitude: ≤1000m



Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire



Insulation Class: H



Telephone Influence Factor (TIF): ≤50



Voltage Regulation, Steady State: ≤±1%



Transient State Voltage: ≤-15%~+20%







 automatic transfer switch for generator set 1200kw



automatic transfer switch for generator set 1200kw











automatic transfer switch for generator set 1200kwautomatic transfer switch for generator set 1200kwautomatic transfer switch for generator set 1200kw
