Specifications
1 300kW diesel genset power manufacturers dealers2 Alternator:Marathon/Stamford/Shanhua
3 100% copper wire
4 Factory supply
Shandong Huali Electromechanical Co.,Ltd

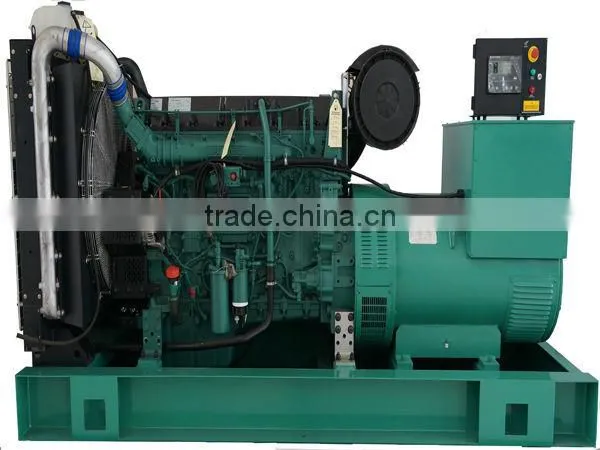

300KW Volvo low rpm power generating manufacturer
Specification of genset
Genset model:HL300GF
Prime power: 300KW / 375KVA
Standby power: 330KW / 412KVA
Power factor: 0.8
Rated Voltage: 400/230V
Rated frequency (HZ): 50
Dimensions (mm) (L×W×H): 3100×1114×1830
Weight (kg): 3400
Specification of diesel engine
Engine Model: TAD1343GE
Manufacturer: VOLVO
Governor:ECM
Air intake way: turbocharger
Cylinders/Arrangement: 6/L
Bore× Stroke(MM): 131×158
Fuel Consumption Rate(L/h): 73.6
Lubricating oil capacity(L): 30
Coolant capacity (L): 44
Compression ratio: 18.1:1
Displacement, total (L): 12.78
Net weight (kg): NA
Engine speed (rpm): 1500
Max Power (kW): 356
Starting Method: DC12V electrical starting
Specification of alternator
Alternator model: HLF300
Connecting Type: 3 Phase and 4 Wires
Number of Bearing: 1
Protection Grade: IP21
Altitude: ≤1000m
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class: H
Telephone Influence Factor (TIF): ≤50
Voltage Regulation, Steady State: ≤±1%
Transient State Voltage: ≤-15%~+20%
Control System
Operating temperature: -20°C~60°C
Relative Humidity: 95%
Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )
Standard functions: Engine Control/Generator Monitoring/Generator Protection/
Engine Monitoring/Clear Text Display
Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,
Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,High Engine
Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)
Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,Mains
Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance
Products Exhibition :
Seaworthy Packing: Plastic film,iron fence,plywood box.
2000KW generator set installation Case
