Open Type Small Size Weichai K4100d Diesel Generator Set

Open Type Small Size Weichai K4100d Diesel Generator Set thumbnail-1
Open Type Small Size Weichai K4100d Diesel Generator Set photo-1
US$ 2,600 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SHANHUA
Model Number:
HL30GF
Contact Supplier Request Quote Chat Now
Shandong Huali Electromechanical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name SHANHUA
Model Number HL30GF
Output Type AC Three Phase
Speed 1500RPM
Frequency 50HZ
Rated Power 30KW/37.5KVA
Rated Voltage 400/230/380/220/450/415V
Rated Current 54A

Specifications

- open type small size weichai k4100d diesel generator set
- Water-cooled generator
- 100% copper wire
- Open/silent type

open type small size weichai k4100d diesel generator set



 Genset :



Model: HL30GF



Prime Power (KVA / KW): 37.5/30



Standby Power (KVA / KW): 41.25/33



Rated Ammeter (A): 54



Dimensions (mm) (L×W×H): 1700 ×630 ×1160



Net Weight (kg):620



Engine:



Manufacturer: Weichaihuafeng



Model: K4100D5-1



Number of cylinders: 4



Aspiration: Turbo



Bore×Store(mm): 100 × 115



Compression ratio:19:1



Displacement, total (L): 3.6



Speed Governor: Mechanical



Cooling System: Water Cooled



Fuel Consumption at 100% Load (g/kw. h): 210



Starting Method: 24V DC Starter



Alternator:



STAMFORD, MARATHON, SHANHUA, 3 Phase and 4 Wires, 100% copper wire Brushless, Self-exciting, IP21-IP23, and Insulation Class: H



Finished Products :







 open type small size weichai k4100d diesel generator set











open type small size weichai k4100d diesel generator set

open type small size weichai k4100d diesel generator setopen type small size weichai k4100d diesel generator set

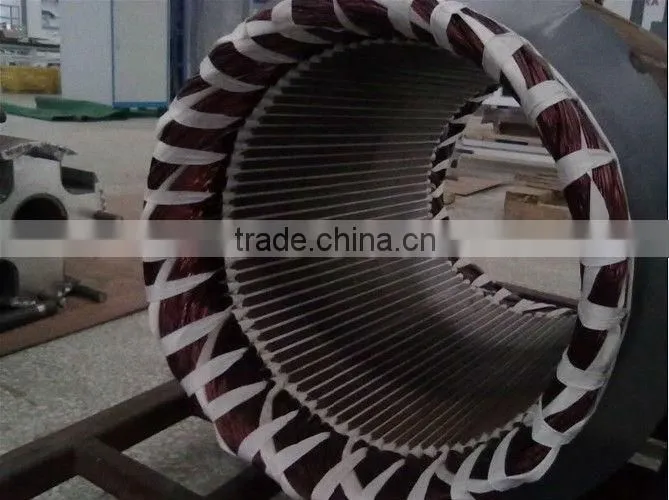

Workshop:



open type small size weichai k4100d diesel generator set

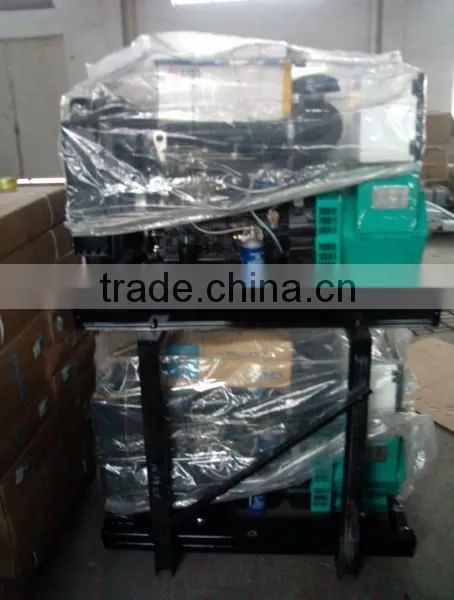

Packing Type:



open type small size weichai k4100d diesel generator setopen type small size weichai k4100d diesel generator setopen type small size weichai k4100d diesel generator set

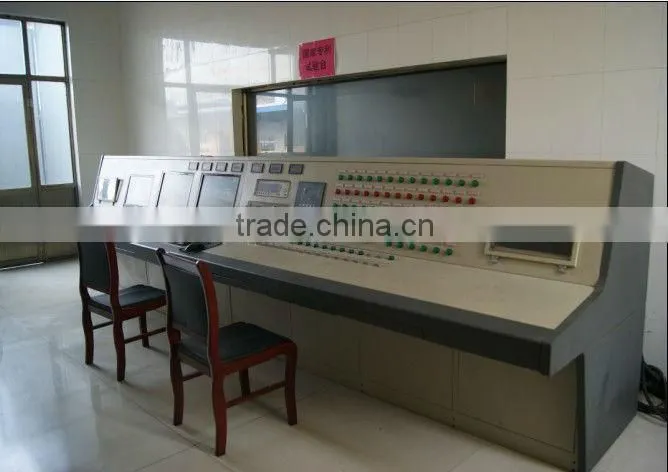

Test Center:



open type small size weichai k4100d diesel generator set





The items been tested on the diesel generators are mainly as follows:



1) Each diesel generator is tested more than 4 hours totally. They are tested on idle load, load, fully load and 10% overload.



2) The noise level is tested.



3) Operation of the various meters on the control panel is tested.



4) The diesel generator appearance and all marks are checked as well.





Cooperations:





open type small size weichai k4100d diesel generator set
