Specifications
- 1000kva high capacity diesel engine power generator set- Water-cooled generator
- 100% copper wire
- Promptly delivery
Shandong Huali Electromechanical Co.Ltd ,professional diesel generator set.

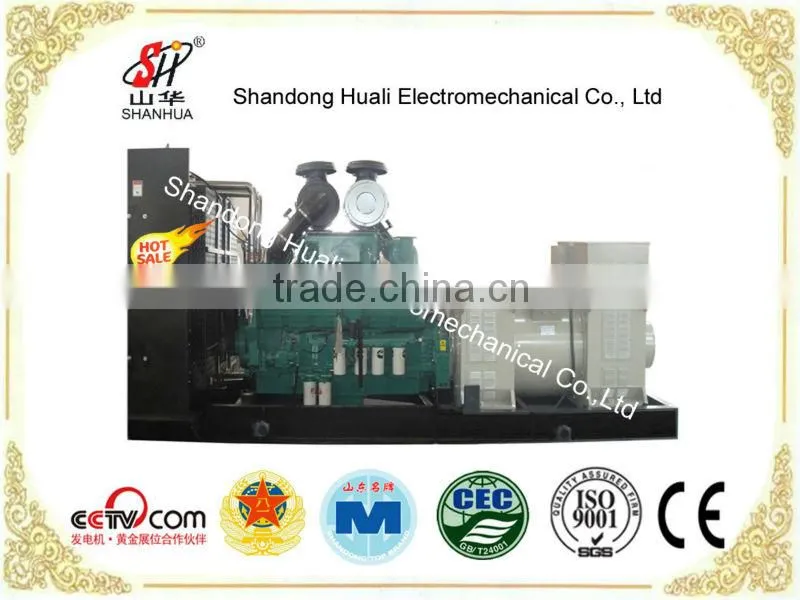

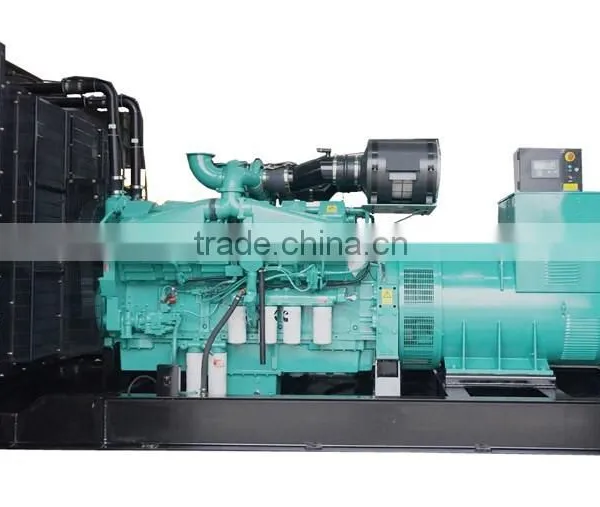

1000kva high capacity diesel engine power generator set
Specification of genset
Genset model:HL1000GF
Prime power: 800KW/1000KVA
Standby power: 880KW/1100KVA
Power factor: 0.8
Rated Voltage: 400/230V
Rated frequency (HZ): 50
Dimensions (mm) (L×W×H): 4557×2060×2314
Weight (kg): 8800
Specification of diesel engine
Engine Model: KTA38-G5
Manufacturer: CCEC
Governor: E
Air intake way: Turbo-charged
Cylinders/Arrangement: 12/V
Bore× Stroke(MM): 159×159
Fuel Consumption Rate(L/h): 209
Lubricating oil capacity(L): 135
Coolant capacity (L): 223
Compression ratio: 14.5:1
Displacement, total (L): 38
Net weight (kg): 4222
Engine speed (rpm): 1500
Max Power (kW): 970
Starting Method: DC24V electrical starting

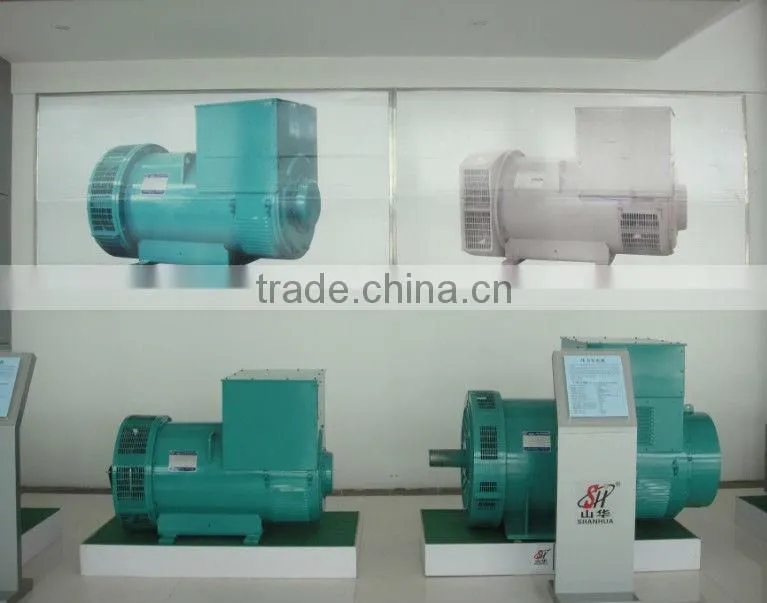

Specification of alternator
Alternator model: HLF1000
Connecting Type: 3 Phase and 4 Wires
Number of Bearing: 1
Protection Grade: IP21
Altitude: ≤1000m
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class: H
Telephone Influence Factor (TIF):≤50
Voltage Regulation, Steady State: ≤±1%
Transient State Voltage: ≤-15%~+20%
Control System
Operating temperature: -20°C~60°C
Relative Humidity: 95%
Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )
Standard functions: Engine Control/Generator Monitoring/Generator Protection/
Engine Monitoring/Clear Text Display
Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,
Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)
Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

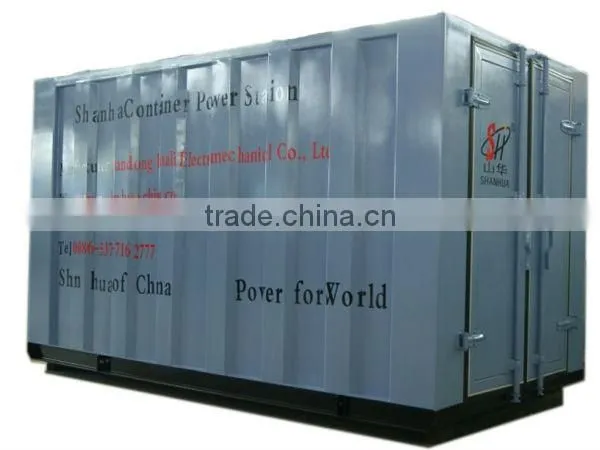

Finished Products :
Production Line :
Packing :Plastic film inside,iron fencce,plywood box
