Help CenterBest Quality Popular Design Paper Die Cutting Machine for Quick Processing
Related Products
-
High Speed Aluminum Foil Rewinder Available From Best Selling CompanyUS$ 10,000 - 30,000MOQ: 1 Unit -
Best Price Sheet Lamination Machine With Extended Feeding TableUS$ 10,000 - 30,000MOQ: 1 Unit
-
Superior Quality Paper Die Cutting Machine With Strong ConstructionUS$ 12,000 - 40,000MOQ: 1 Piece
-
Sturdy Construction Sheet Lamination Machine Available From Market Reputed WholesalerUS$ 10,000 - 30,000MOQ: 1 Unit
-
Durable and Fast Operating Sheet Lamination Machine at Best RateUS$ 10,000 - 30,000MOQ: 1 Unit

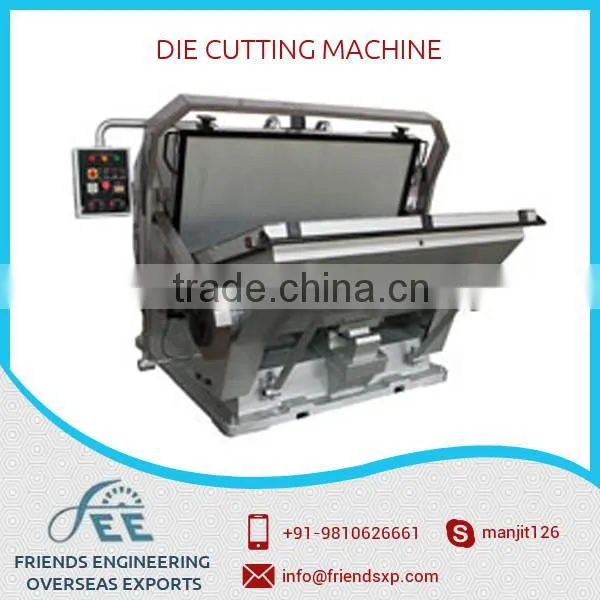

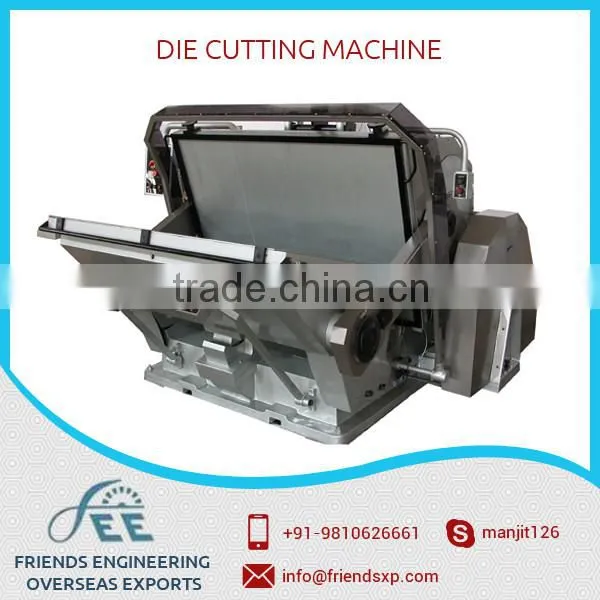

Die Cutting Machine or Platen Punching & Creasing Press particularly designed for Die Cutting, Scoring and Creasing Work on PAPER, LINOLEUM, CARD-BOARD, CORRUGATED BOARD, FIREBOARD, CORK, LEATHER, PLASTIC AND PVC MATERIALS etc. Most Handsome and compact patronized Model requires Minimum Flooe-Space. Minimum “Make-Ready” Time and provides sufficient hourly production.
The very sturdy construction of “FRIENDS” Die Cutting Machine or Platen Punching & Creasing Press guarantees for perfect works under heaviest conditions.Frame, Platen & Main Gears made of special high tensile Cast Iron are resistant to deformation even if subjected to greatest strain. The platen is driven from the ball bearing mounted shaft through a pair of reduction spiral gears protected by guards.The main gear shaft and connecting arms are mounted on Phosphor Bronze bushes.The reduction gear shaft is made of hardened high quality alloy-steel. Lubricated counter- pressure elements prevent the gears from deviating under the work pressure.
Electromagnetic Clutch & Break System
Electromagnetic clutch & brake in Die Cutting Machine enables push-button control of the machine for easy and efficient operation. Complete safety is ensured by full electrical interlocking. Electrical synchronization of both the clutch and the brake eliminates the possibility of time lag or over-lag between driving & braking. Instead of Pedal Control, there is a clean panel within operator’s easy reach from where all machine operations can be controlled
Dwell Timing Device
This timing device in Die Cutting Machine can be set to give a variable period from 0.5 to 10 seconds. During this time the platen remains stationary in the open position before automatically resuming motion at the end of the set dwell period. This is a particularly useful feature where feeding work requires a fine register or when large or difficult sheets are being fed which would otherwise have to be run using the single impression procedure. This device can increase output to more than double that of a machine on single impression working and can also be of great assistance during the training of an operator.This model differs from pedal controlled machines being driven by Electro Magnetic Clutch & Brake Unit and Training Control Dwell.
Safety in the Machine
All moving parts on Die Cutting Machine are protected by approved safety guards. A special feature is the patented guard which protects the operator from the moving block. Should any object come between the moving block and this guard, a slight backward movement of the guard will occur stopping the moving block immediately and isolating the starting mechanism. Untill the Guard is moved forward by hand the machine remains dead and isolated from any attempt to actuate it through the starting mechanism.
Die Cutting Machine | |||||||
Inside Chase Size |
22″x32″ |
25″x37″ |
29″x40″ |
32″x42″ |
37″x51″ |
42″x62″ |
52″x72″ |
Platen Size |
24″x34″ |
28″x40″ |
32″x43″ |
35″x45″ |
40″x54″ |
45″x65″ |
56″x76″ |
H.P. |
3 |
5 |
5 |
7.5 |
10 |
10 |
15 |
Impressions per Hour |
1700 |
1500 |
1400 |
1300 |
1100 |
1000 |
800 |
Weight Approx.MT |
3.4 |
4 |
4.5 |
5.4 |
6.5 |
9.5 |
13.5 |
| Watch Here : - /watch?v=C2FXO7QFm40 | |||||||
Friends Engineering Corporation is the manufacturer & suppliers of Paper Napkin Machine , Paper Bag Making Machine, Die Cutting Machine ,Corrugated Box Plants, Printing & Binding Machinery since 1960 , the company has emerged as the largest manufacturer of Paper Napkin Machine , Paper Bag Making Machine, Die Cutting Machines in India. The company owes its immense success to the highest standard of quality along with most affordable prices. The products that we manufacture fetch us accolades from our distinguished clientele spread across the globe. We are not only exporting to developing countries but also to the DEVELOPED COUNTRIES.
We manufacture an endless range of technically sound machinery that is recognized for its high quality and string durability features. The vast product range includes: Paper Bag Making Machine , Die Cutting Machines , Paper Napkin Machine , Corrugated Box Plants , Printing ,Packaging, Binding Machinery , Paper Converting Machinery , Exercise Note Book Machinery , Pre Press Machines, Corrugation Machines, Reel to Sheet Cutters, Eccentric Slotter, Four Bar Rotary Cutting & Creasing Machines, Sheet Pasting Machines, Sheet Pressing Machines, Board Cutters, Box Stitching Machines, Hydraulic Type Programmable Fully Automatic Paper Cutters, Semi Automatic & Ordinary Paper Cutters, Book Stitching Machines, Sheet Lamination Machines, Thread Book Sewing Machines, Spiral Binding Machines, Envelope Punching Machines, Carton Folding & Pasting Machine, Paper Folding Machine, Toilet Roll Making Machines, Offset Printing Machinery, Roto Gravure Printing Machine, Flexo graphic Printing Machinery & other related Machinery.
We have a consistency in serving our clients with best of quality products that we introduce in the market. We introduce quality yet innovative designs in the machinery that compete with today’s fast pacing technological standards. We aim at achieving 100% customer satisfaction through our production network.
We stick to tough quality standards that are maintained at every stage of production. Right from conceptualization to packaging, we undertake all the jobs in-house. Our machinery is the best in the industry in terms of functionality and efficiency.We have Factories at Amritsar , New Delhi and Greater Noida including our own Casting Unit.
Friends Engineering Corporation expands its market beyond the boundaries and FRIENDS machines have made their presence felt in many countries.
Friends Engineering continues to enhance its credibility in the International market through innovation, wide range of machines, export oriented approach and thoroughly professional management.
