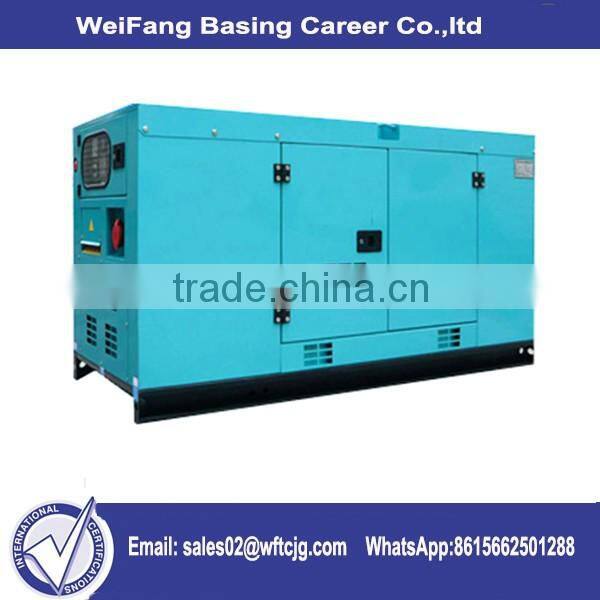

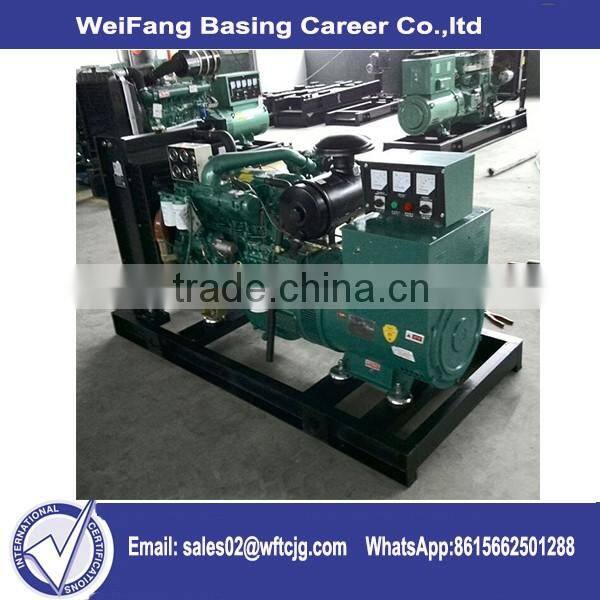

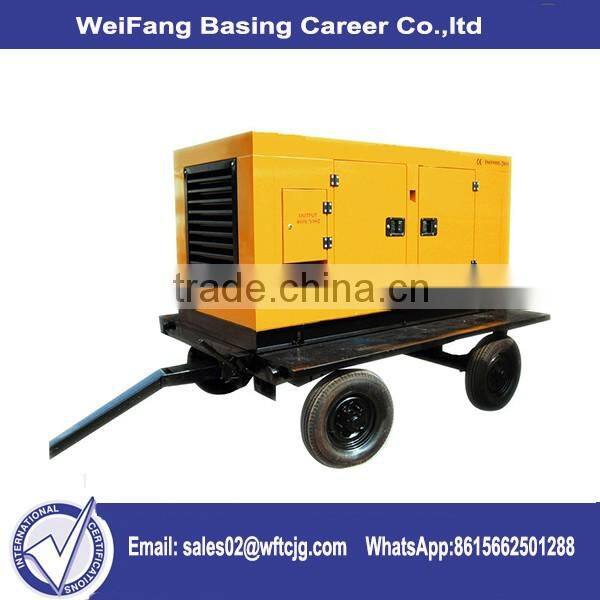

Mobile and Low Noise Power Plant 50kw Silent Diesel Generator Quality Choice

FOB Price

US$ 500 - 5,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

50KW DIESEL GENERATOR DETAILS
Diesel Generator	Genset Model	HUAKE-50
	Rated Frequency	50HZ
	Power Factor	0.8
	Rated Voltage	400/230V
	Rated Power(KW/KVA)	50/62.5
	Standby Power(KW/KVA)	55/68.75
	Phase/Wire	3-phase 4-wire system
	Voltage Debugging	automatic constant pressure system
	Overall Size(mm)	1700×800×1300
	Weight(kg)	800
Diesel Engine	Model	R4105ZD
	Brand	HUAKE
	Type	water-cooled,inline, 4-stroke,direct injection
	Rated Power(kw)	56kw
	Intake Type	Turbocharged
	No. of Cylinder	4
	Bore×Stroke(mm)	105×125
	Piston Speed(m/s)	6.25
	Compression Ratio	16:01
	Mechanical Governor Rate	≤5%
	Noise Level(dBA)	≤95
	Exhaust Temperature(℃)	≤600
	Lube Oil Capacity(L)	12
	Rated Fuel Consumption(L/h)	14
	Displacement(L)	4.33
	Exhaust System	adopting high noise reduction efficiency of the muffler used in industry
Alternator	Model	TFW50
	Brand	HUAKE brand
	Rated Power(KW/KVA)	50/62.5
	Power Efficiency	86.60%
	Voltage Regulation	≤±3
	Excitation Type	Brushless
	Voltage Control Mode	AVR automatic
	Insulation Class	SURE H CLASS
	Overload capacity and time	10%,12 hours to allow 1 hour
	Copy Stamford alternator.100%Copper wires,brushless excitation,single bearing,H insulation and AVR
