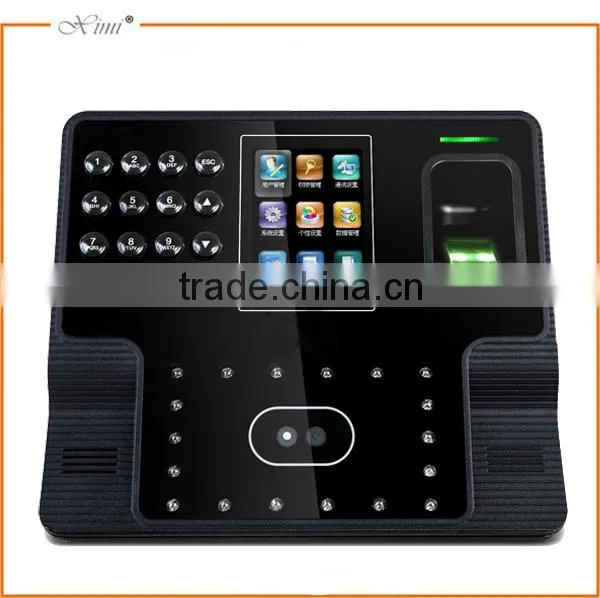

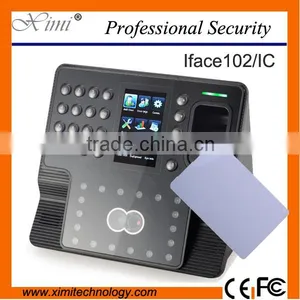

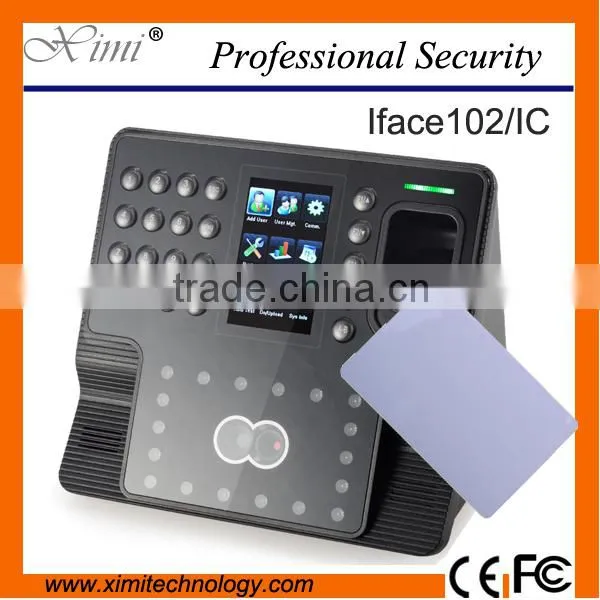

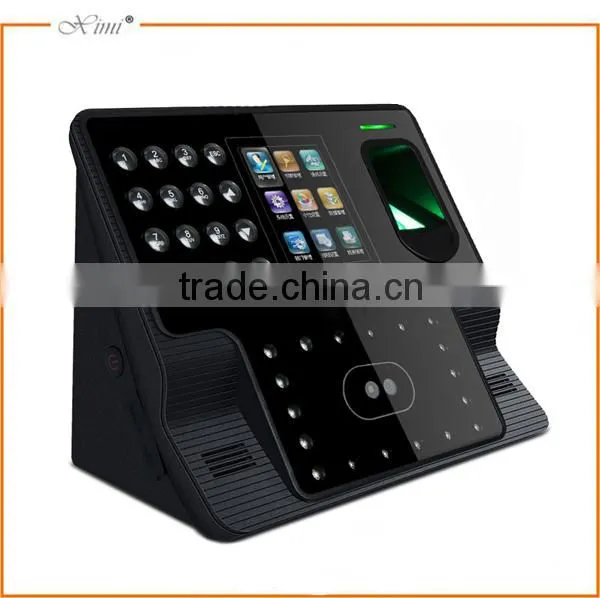

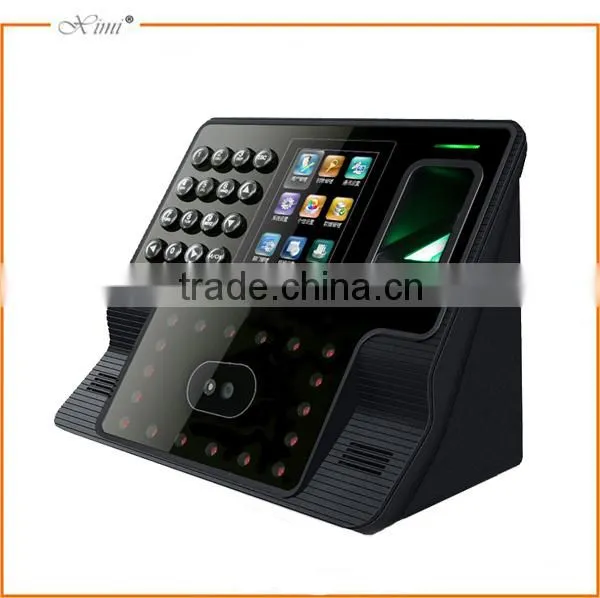

iFace102 multibiometric identification time attendance and access control terminal adopts ACEBONSoftware's latest ZEM600 platform with ACEBON Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed ACEBON MultiBio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multibiometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multimodel communications includes RS232/485, TCP/IP, optional WiFi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
CPU |
ACEBON Multi-Bio CPU 630 MHz |
Memory |
256M Flash, 64M SDRAM |
Hardware Platform |
XM600 Multi-Medium Development Platform |
Fingerprint Sensor |
Good |
Camera |
High Resolution Infrared Camera |
Display |
4.3’’ TFT touch screen |
Face capacity |
200 (1:N) |
Card capacity |
10000 (optional) |
Logs capacity |
100,000 |
Algorithm Version |
Face 7.0 & Finger 10.0 |
Communication |
TCP/IP,RS232/485 |
USB-HOST |
Two USB-Host |
Time attendance Standard functions |
fingerpint ,Automatic Status Switch, Self-Service Query, Work Code, T9 input, DLST |
Access control interfaces for |
3rd party electric lock, door sensor, exit button |
Wiegand Signal |
Output |
Optional functions |
serial printer, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, |
Power supply |
12V3A |
Verification Speed |
1 sec |
Operating temp |
0°C- 45 °C |
Operating Humidity |
20%-80% |
Dimension |
193.6*146.8*111 mm (Length*Width*Thickness) |
Gross Weight |
2 kg |
