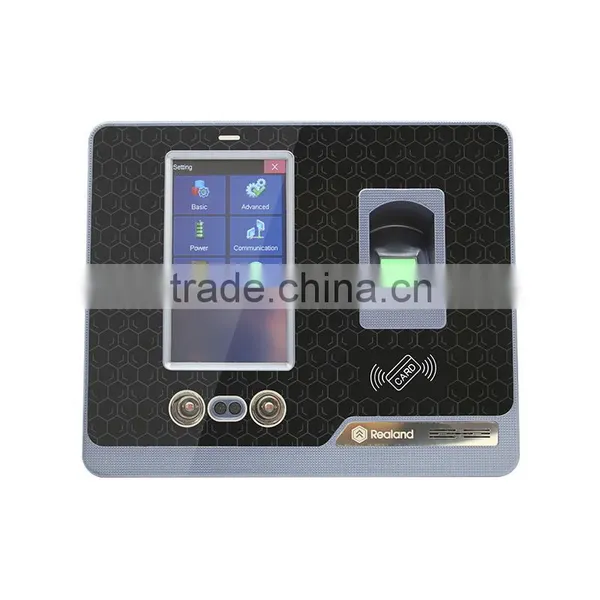

4.3'' TFT touch screen TCP/IP Fingerprint time attendance with free Software SDK JM-F500
This product is designed and developed as a self-service face recognition time attendance system which can generate EXCEL attendance reports. With multiple verification modes including: face, fingerprint, RF card (standard device with ID card reader) and password, users can choose whatever modes they prefer to make it easier. According to the market that it is difficult to be verified with single verification mode, this product is developed to be more efficient for time attendance users, and help them back to work faster.
Specification:
Model |
JM-F500 |
LCD Screen |
4.3 inch TFT LCD touch screen |
Fingerprint Sensor Resolution |
500DPI (Optical sensor) |
Proximity Card |
RFID card(IC is optional) |
Communication |
TCP/IP, USB Host |
Face capacity |
500 |
Fingerprint capacity |
5,000 |
ID card capacity |
5,000 |
Records Capacity |
300,000 records/10,000 |
Face smart renew function |
Yes |
FRR |
<0.001% |
FAR |
<0.0001% |
Identification Time |
1- S |
Authentication Method |
Face, fingerprint, card, PIN and their combinations |
Authentication(face, fingerprint) Mode |
1:1, 1:N |
Camera |
2 (one colorful & one infrared) |
Infrared lights |
2 |
Infrared body close receiver |
Yes |
Fingerprint sensor touching transducer |
Yes |
Access Control Function,Backup battery |
Can be customized |
Energy management |
Sleep function |
|
Can be customized |
Voice output |
Yes |
Operating environment |
Operating Temp: -10℃-60℃, Humidity: 20%-80% |
Power |
DC 12V/1.5A |

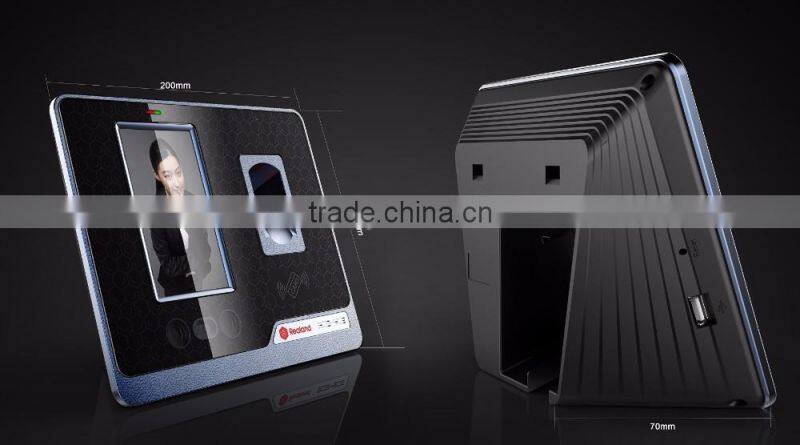

Size of the Terminal |
200*164*75mm |
Face Recognition Precautions:
Standing position (Figure):
While using facial verification mode, the suggested distance from the device is 0.5 meters (adaptive range of height between 1.4-1.85 meters), face the white box on the display directly (after verification succeeds, the green box will be shown on the display with the user’s ID or name, and the voice prompt of “Thank You”), you can adjust postures (upper or lower, to the left or right) according to the image shown on the display.
Attendance Record:
Abnormal Attendance Report:
Packing:
