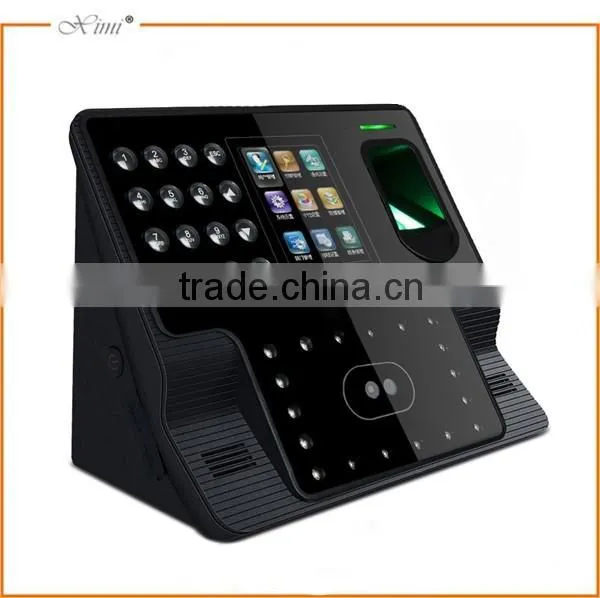

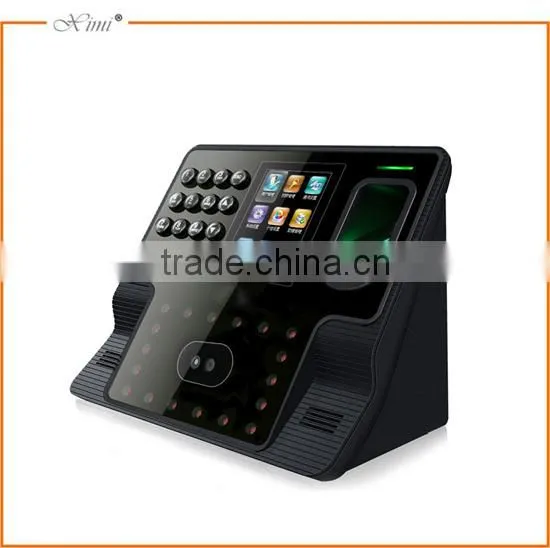

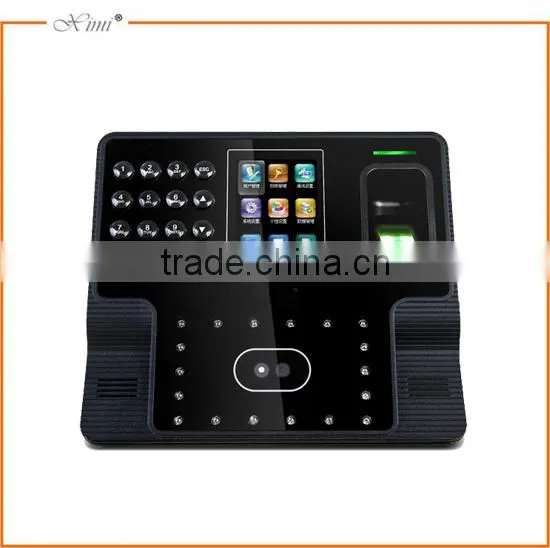

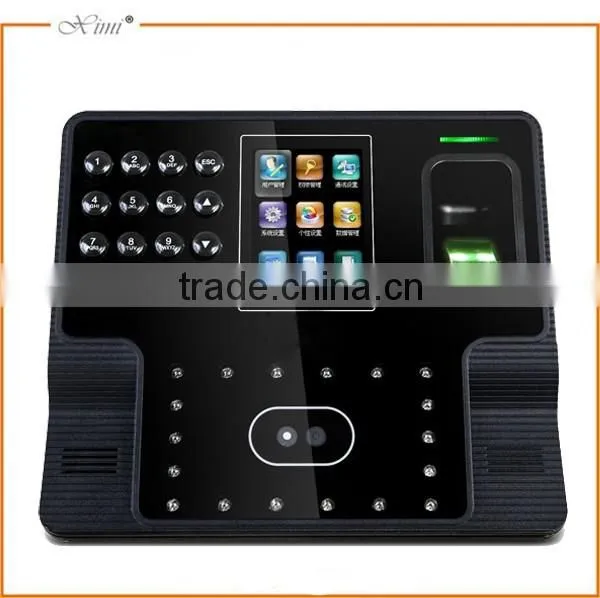

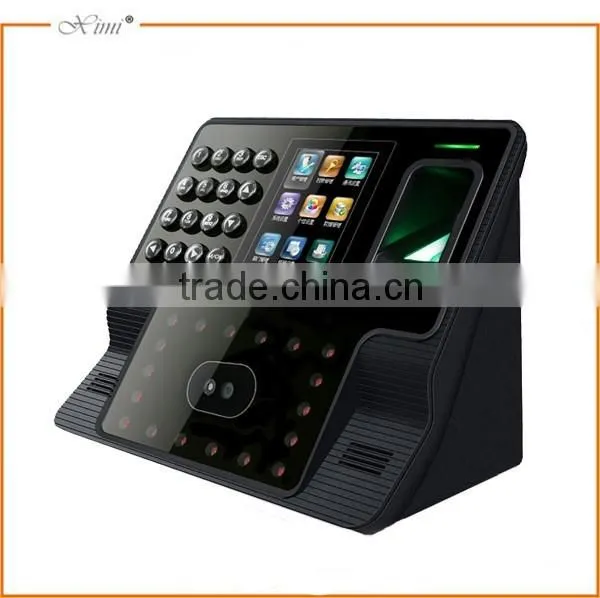

Help CenterBiometric Time Attendamce System TCP/IP RFID Card Reader and Optional Battery Face Door Access Controller Time Recorder
Related Products
-
Infrared Camera 4.3'' TFT Touch Screen TCP/IP Iface102 Door Access Control System and Face Time Attendance RecorderUS$ 1 - 135MOQ: 10 Pieces -
2.4inch Touch Screen Standalone Rdid Card Door Access Control System TCP/IP Communication Biometric Fingerprint Reader Door LockUS$ 1 - 60MOQ: 10 Pieces
-
RFID Access Control System Linux System Rs485 TCP/IP Communication Free Software Fingerprint Door Access ControllerUS$ 1 - 60MOQ: 10 Pieces
-
4.3'' TFT Touch Screen Infrared Camera TCP/IP Communication Iface102 Wall Time Clock Face and Fingerprint Reader Time AttendanceUS$ 1 - 135MOQ: 10 Pieces
-
Linux System TCP / IP Network Biometric Facial and Fingerprint Time Attendance and Access ControllerUS$ 1 - 120MOQ: 10 Pieces

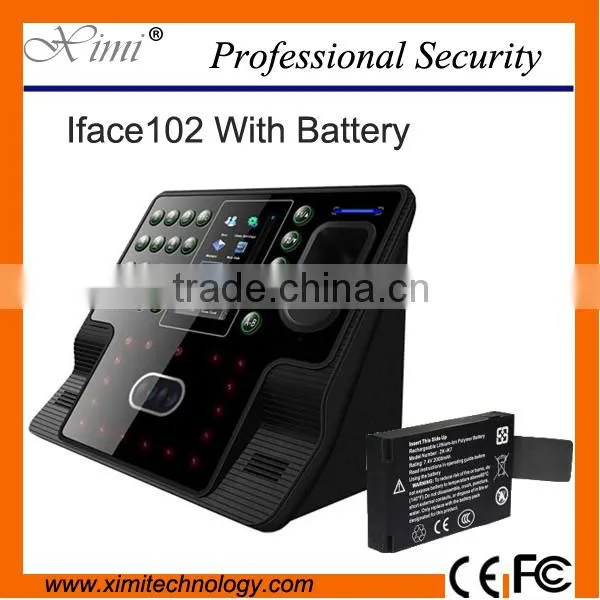

iFace102 multibiometric identification time attendance and access control terminal adopts ACEBONSoftware's latest ZEM600 platform with ACEBON Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed ACEBON MultiBio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multibiometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multimodel communications includes RS232/485, TCP/IP, optional WiFi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
CPU |
ACEBON Multi-Bio CPU 630 MHz |
Memory |
256M Flash, 64M SDRAM |
Hardware Platform |
XM600 Multi-Medium Development Platform |
Fingerprint Sensor |
Good |
Camera |
High Resolution Infrared Camera |
Display |
4.3’’ TFT touch screen |
Face capacity |
200 (1:N) |
Card capacity |
10000 (optional) |
Logs capacity |
100,000 |
Algorithm Version |
Face 7.0 & Finger 10.0 |
Communication |
TCP/IP,RS232/485 |
USB-HOST |
Two USB-Host |
Time attendance Standard functions |
fingerpint ,Automatic Status Switch, Self-Service Query, Work Code, T9 input, DLST |
Access control interfaces for |
3rd party electric lock, door sensor, exit button |
Wiegand Signal |
Output |
Optional functions |
serial printer, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, |
Power supply |
12V3A |
Verification Speed |
1 sec |
Operating temp |
0°C- 45 °C |
Operating Humidity |
20%-80% |
Dimension |
193.6*146.8*111 mm (Length*Width*Thickness) |
Gross Weight |
2 kg |
Send Inquiry to This Supplier
