20 x 2 VFD Customer Displays for POS System

20 x 2 VFD Customer Displays for POS System thumbnail-1
20 x 2 VFD Customer Displays for POS System photo-1
US$ 46 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
QBF
Model Number:
VFD220
Contact Supplier Request Quote Chat Now
Shenzhen Ximi Technology Co.,ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fob shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name QBF
Model Number VFD220
Usage Other, connect with computer to use
Screen Dimension 187(W)X52(H)X93(D)mm

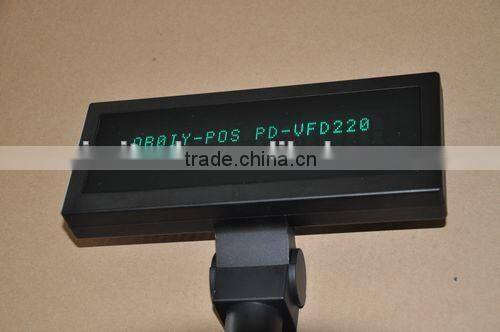

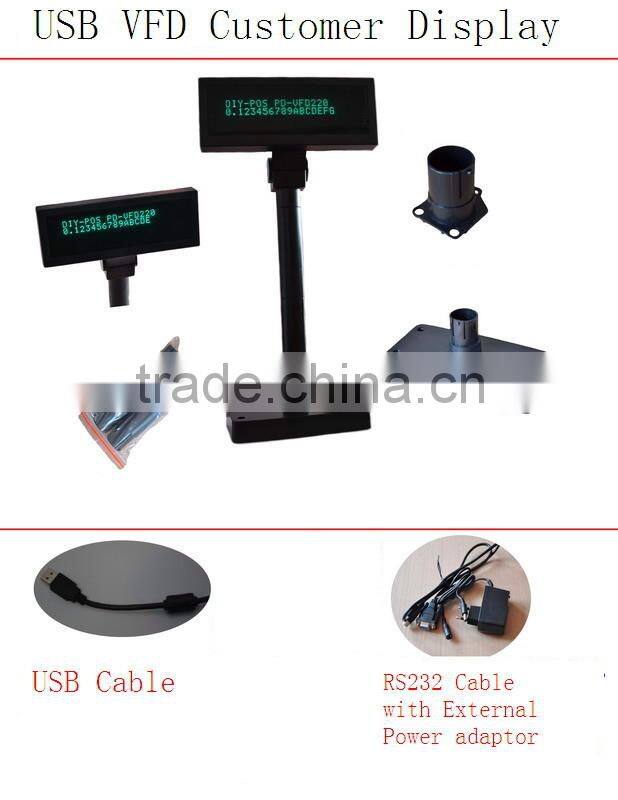

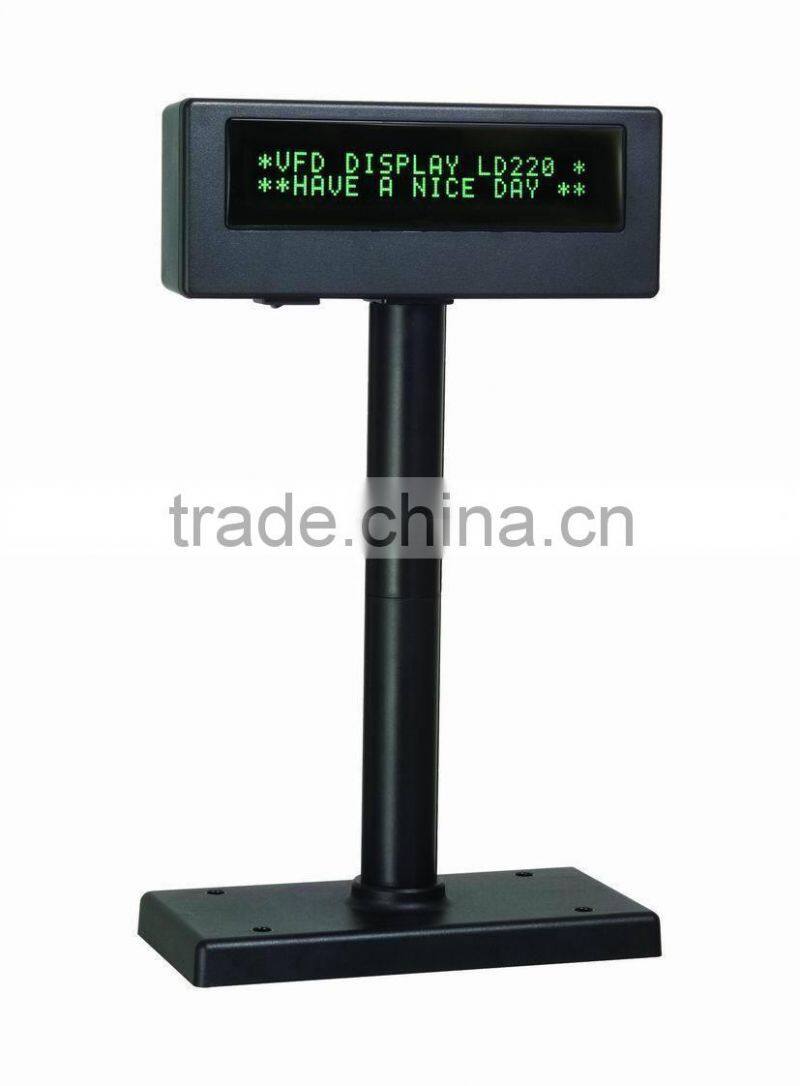

VFD customer display VFD220 20x2 POS Display

  Number of Characters: 2 lines * 20 characters
1)Compatible with ESC/POS commands
2) Interface: Serial RS232 or USB



Features:

  • 1. High-luminance green dot matrix vacuum fluorescent display (VFD), can display English and digital cash registers such as status, the display is 20X2 to meet display requirements of overseas customers.



    2. Display internal chip integration technology in the electronics industry, PCB Board adopts the best 1.6mmFR4 in the electronics industry, performance is stable and reliable.



    3. Compatible "ESC/POS" standard generic instruction set does not need to install any driver, plugged in, select the right care model can work.



    4. Display USB power supply DC 5V, can be provided by the host interface, or to take power from an external 5V adapter power supply, 5V power connector for round holes.

Model VFD220
Mode VFD
Display words 20X2
Pixel pitch 5X7 dot matrix
Display colors Blue,Green
Brightness 700 cd/m2
Display characters 96 number,13 countrys language
Typeface dimension 9.0mm x 5.25mm
Power USB DC 5V
Consumption 3.0W
Lifetime 30000 H
Interface USB
Baud rate 2400/9600BPS
Head dimension 224(W)X85(H)X60(D)mm
Pepe grid dimension 120mm
Display area dimension 187(W)X52(H)X93(D)mm
Max rotate angle 360°
Weight 1.5KG
Working Temp -30°C—50°C
Humidity 30%—80%
Storage Temp -40°C--60°C
Storage humidity 10%--90%

 20 x 2 VFD Customer Displays for POS system20 x 2 VFD Customer Displays for POS system20 x 2 VFD Customer Displays for POS system20 x 2 VFD Customer Displays for POS system
