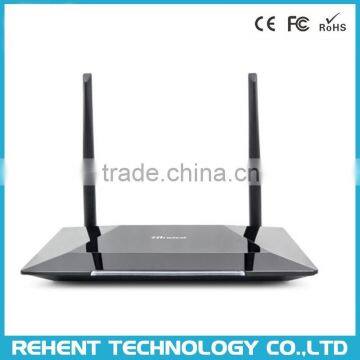

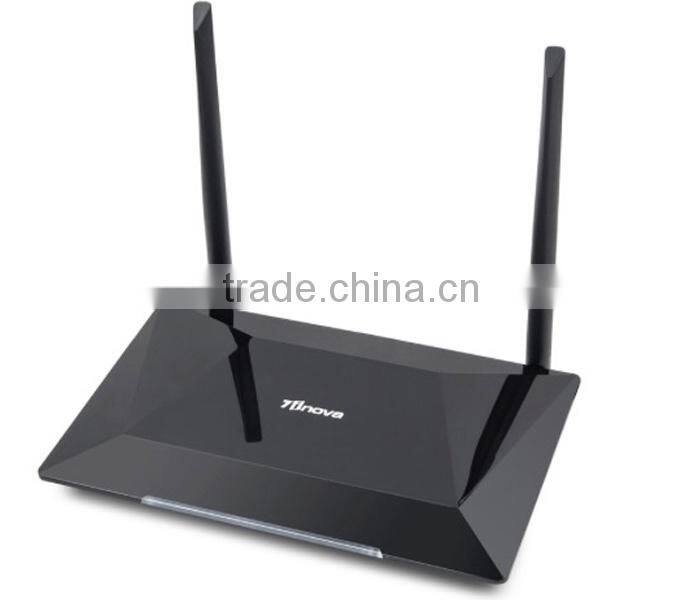

Qualcomm Chipset Atheros 9533 300M 11N Wireless WiFi 2.4G Router
Introduction:

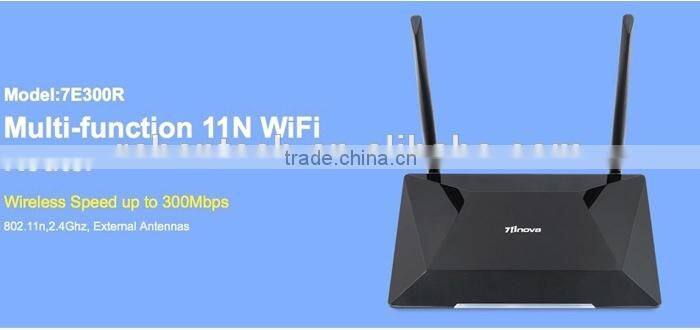

CS-7E300R 300mbps Wireless Router is a combined wired/wireless 300M multi-function wireless N-router
designed specifically for small business and home office networking requirements. Advanced wireless

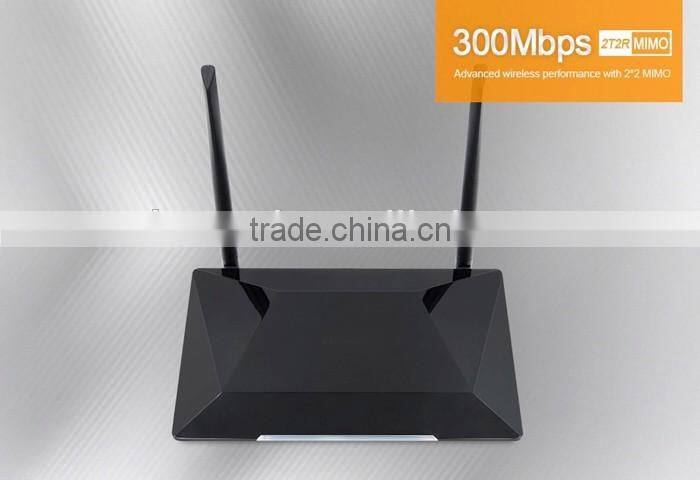

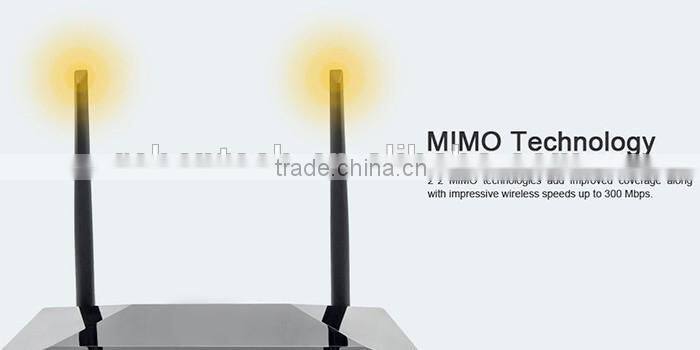

performance with 2*2 MIMO technologies makes it ideal for streaming HD video, making VoIP and online
gaming.
Features of 300M Wireless WiFi Router:
- 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
- Two 5dbi antennas greatly increase the wireless robustness and stability
- Easy wireless security encryption at a push of WPS button
- 8MB Flash/64MB DDR1 storage can fulfill more end users access in, provide wider bandwidth,
minimize network latency and lag
Specifications of 300M Wireless WiFi Router:
| 300M Wireless Router Specifications | |
| Chipset | Qualcomm Atheros 9533 |
| Standard | 802.11/b/g/n, MIMO technology |
| Memory | 512Mbit(64MByte) DDR1 RAM |
| Flash | 64Mbit(8MByte) |

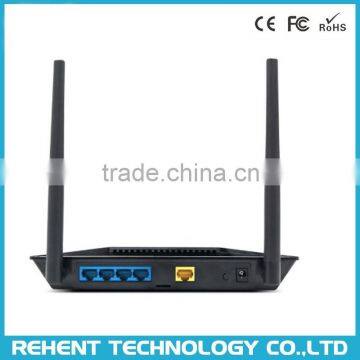

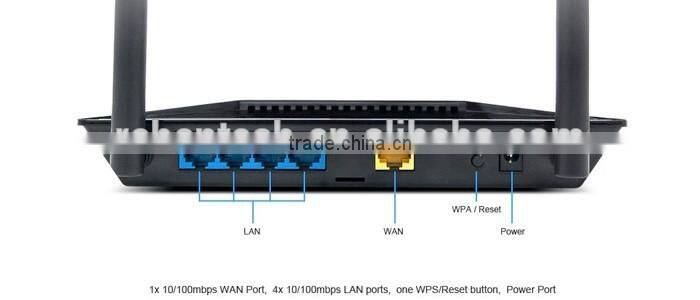

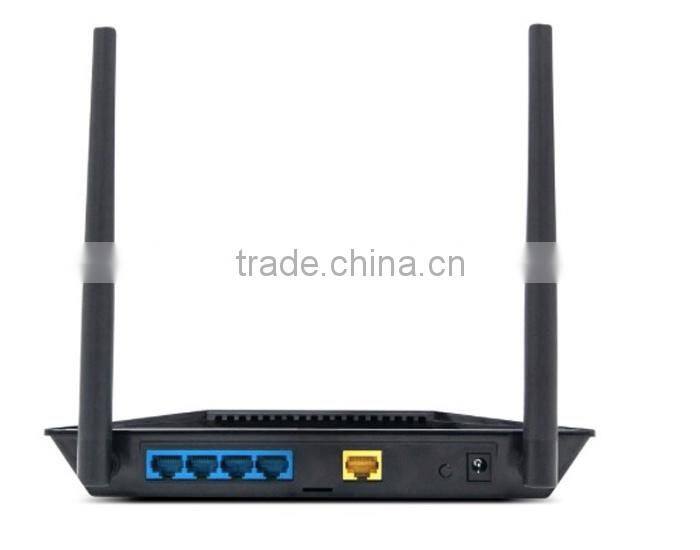

| Interface | 1 * 10/100 RJ45 WAN Port |
| 4 * 10/100 RJ45 LAN Port | |
| 1 * WPS/ Reset button | |
| LED Light | WLAN,WAN,LAN1-4,WPS,System,Power |
| Antenna | External 2x5dbi MIMO Antenna |
| Power Supply | DC 12V, 1A |
| Power consumption | 5W |
| Frequency | 2.4-2.4835GHz |
| RF Power | <20dBm (Typical) |
| Wireless Signal Rates | 11n: Up to 300Mbps(dynamic) |
| 11g: Up to 54Mbps(dynamic) | |
| 11b: Up to 11Mbps(dynamic) | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Throughput | 300 Mbps |
| Operation mode | Wireless bridge, Gateway |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| Wireless Function | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| WAN Protocols | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
| Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding,PPTP, L2TP, IPSec (ESP Head) |
| Protocols | Support IPv4 and IPv6 |
| WPS | PIN.PBC |
| Package Contents | 300Mbps wireless router |
| DC Power Supply | |
| Ethernet Cable | |
| Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0~40 ℃(32 ℉~104℉) |
| Storage Temperature: -40~70 ℃ (-40 ℉~158℉) | |
| Storage Humidity: 30%~95% non-condensing | |
| Operating Humidity: 30%~90% non-condensing; | |
Rehentech Company focus on this field for sevral years.We mainly provide plug and play hd indoor outoodr wifi ip camera,
Full HD WiFi IP Camera,PIR IP Camera and also WiFi Network Consumer Electronics Products to provide whole solution for
you home security and Enjoy Convenienct Life Anytime Anywhere!
All of our staff members continue to provide our customers with high quality and perfect OEM/ODM manufacturing service as always.
We provide good services to make try our best make our customer 100% satifactory and Strive for "Win-Win"!
All our IP Camera products provide "Two Year Warranty"
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
1. Payment: T/T, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 10pcs
3. Warranty : 2 years
