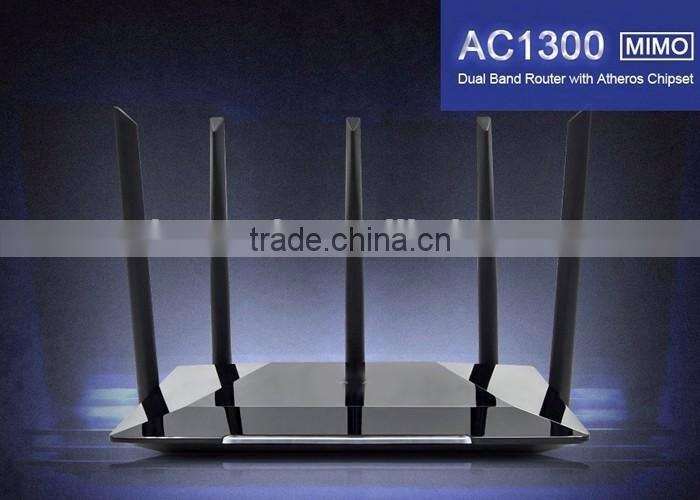

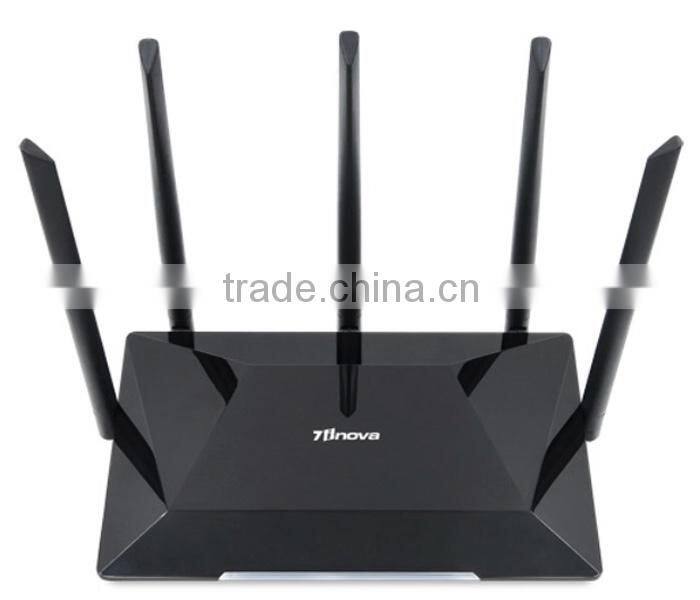

802.11AC 2.4G 5.8G 1300M Wireless WiFi Dual Band Router with 5 Antennas
Introduction:
7E1300R AC1300 Wireless Dual Band Router is with the next generation Wi-Fi standard – 802.11ac, 3 times
faster than wireless N speeds, embedded with global No.1 wireless algorithm: Atheros chipset, delivering a
combined wireless data transfer rate of up to 1317Mbps: 450Mbps over the 2.4GHz band and 867Mbps
wireless speeds over the 5GHz band, superior high speed of both bands ensures amazing wireless
performance of seamless HD streaming, online gaming and other bandwidth-intensive actions.
Features of Dual Band Wireless Router:
- Supports 802.11ac standard - the next generation of Wi-Fi, complies backwards with wireless
802.11b/g/n.
- Ultra-fast total 1317(5GHz:867+2.4GHz: 450)Mbps wireless speed Simultaneously.

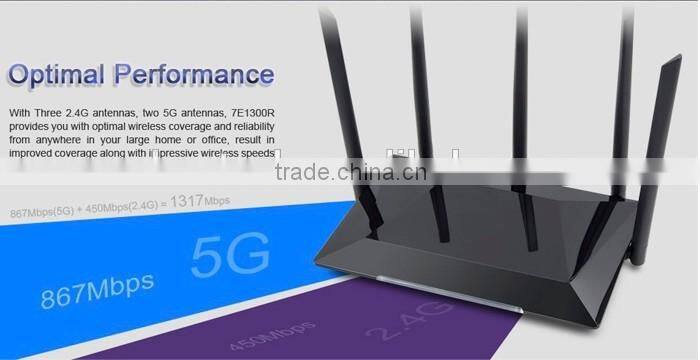

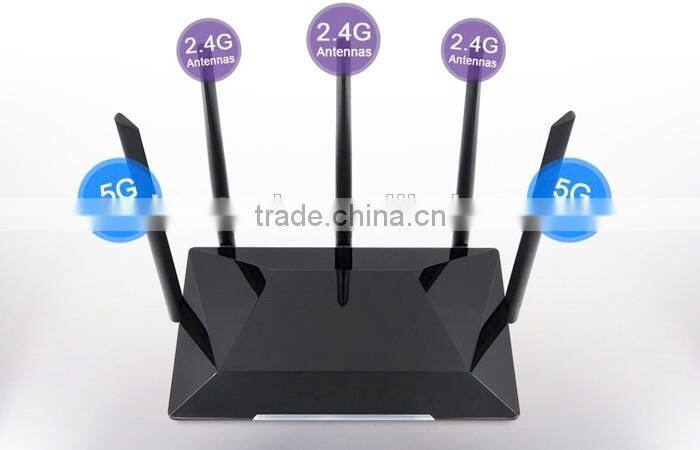

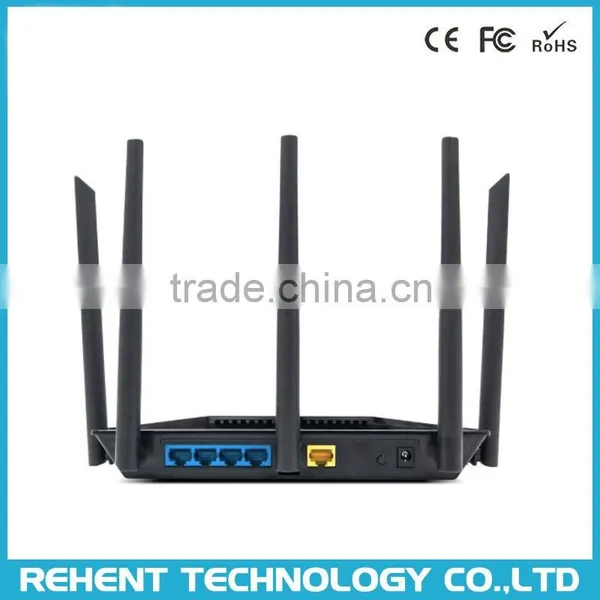

- External three 2.4G antennas, and two 5G antennas provide stable wireless connections and optimal
coverage.

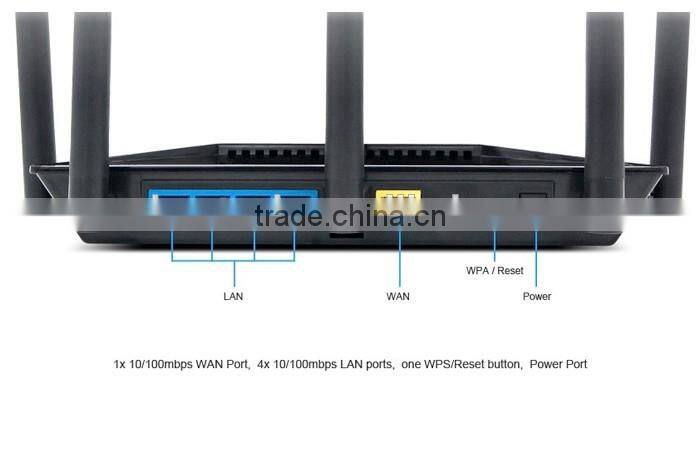

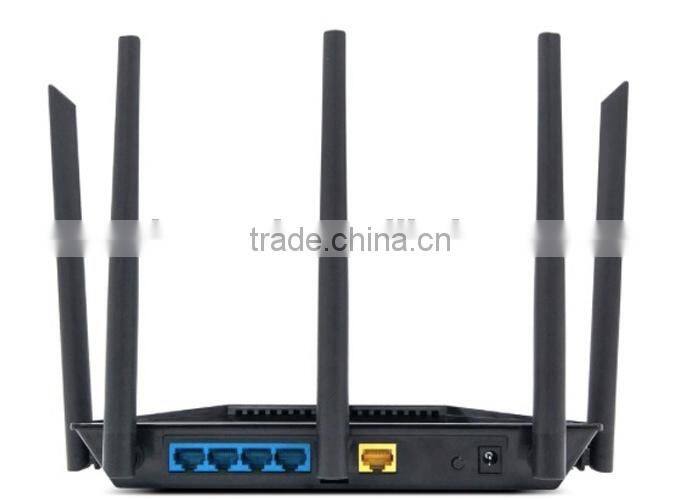

- 1X 10/100mbps WAN Port, 4x10/100mbps LAN ports, one WPS button
- Supports 64/128-bit WEP, WPA, WPA2 encryptions
Specifications of Dual Band Wireless Router:
| 802.11AC 2.4G 5.8G 1300M Wireless WiFi Dual Band Router with 5 Antennas | |

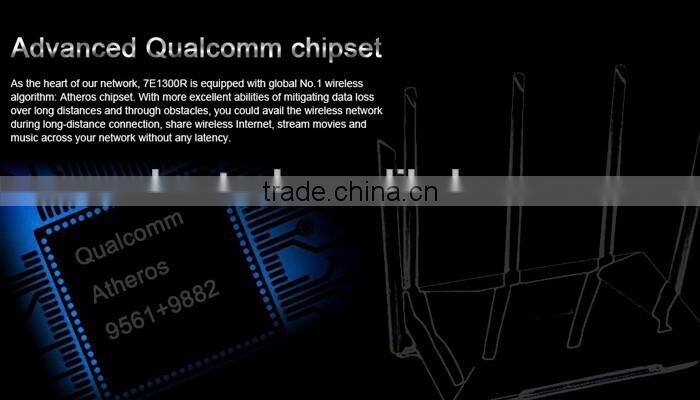

| Chipset | Qualcomm Atheros 9561+9882 |
| Standard | 802.11/b/g/AC, MIMO technology |
| Memory | 1024Mbit(128MByte) DDR2 RAM |
| Flash | 64Mbit(8MByte) |
| Interface | 1 * 10/100 RJ45 WAN Port |
| 4 * 10/100 RJ45 LAN Port | |
| 1 * WPS/ Reset button | |
| LED Light | WLAN,WAN,LAN1-4,WPS,System,Power |
| Antenna | 2.4Ghz: External 3* 5dbi; 5Ghz: External 2x5dbi MIMO Antennas |
| Power Supply | DC 12V, 1A |
| Power consumption | 9W |
| Frequency | 2.4-2.4835Ghz; 5.180-5.825Ghz |
| RF Power |
2.4G: <23dBm (Typical); 5G: <18dBm (Typical) |
| Wireless Signal Rates | 11ac: Up to 867Mbps(dynamic) |
| 11n: Up to 450Mbps(dynamic) | |
| 11g: Up to 54Mbps(dynamic) | |
| 11b: Up to 11Mbps(dynamic) | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Throughput | 1317 Mbps |
| Operation mode | Wireless bridge, Gateway |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| Wireless Function | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| WAN Protocols | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
| Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding,PPTP, L2TP, IPSec (ESP Head) |
| Protocols | Support IPv4 and IPv6 |
| WPS | PIN.PBC |
| Package Contents | 1317Mbps wireless router |
| DC Power Supply | |
| Ethernet Cable | |
| Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0~40 ℃(32 ℉~104℉) |
| Storage Temperature: -40~70 ℃ (-40 ℉~158℉) | |
| Storage Humidity: 30%~95% non-condensing | |
| Operating Humidity: 30%~90% non-condensing; | |
Rehentech Company focus on this field for sevral years.We mainly provide plug and play hd indoor outoodr wifi ip camera,
Full HD WiFi IP Camera,PIR IP Camera and also WiFi Network Consumer Electronics Products to provide whole solution for
you home security and Enjoy Convenienct Life Anytime Anywhere!
All of our staff members continue to provide our customers with high quality and perfect OEM/ODM manufacturing service as always.
We provide good services to make try our best make our customer 100% satifactory and Strive for "Win-Win"!
All our IP Camera products provide "Two Year Warranty"
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
1. Payment: T/T, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 10pcs
3. Warranty : 2 years
