Specifications
FPDW Series Horizontal Bran Finisher1. Capacity: 0.9-3.0T/H.
2. Sieve Tube Length: 800-1100mm.
3. Sieve Tube Diameter: 300-4
FPDW Series Horizontal Bran Finisher
1. Principle
- This machine is designed for detaching endosperm particles adhered to the bran to increase the extraction of flour in flour mill.
- The bran flow is tangentially fed into the machine through the inlet and seized by the rotating beaters and detached against the impact wall and the screens. The bran is detached again and again and then the adhering endosperm falls off from the bran and goes through the screen while the bran is beaten and pushed to the end outlet. The perforated is polygonal which a slight vibration is caused when the bran impact against the screen, thus the perforation keeps open and high sifting efficiency is achieved. It’s better to connect the machine to an aspiration system if the screen throughs are not pneumatic transferred.
2. Features
- Advanced design and excellent fabricating.
- Dynamically balanced rotor ensures smooth running.
- The rotor’s beaters are adjustable.
- Different screen perforated openings for different requirements.
- Cleaning the bran and get commercially usable flour.
- Individual drive with lower power requirement.
3. Application
- Widely applied in modern flour mills to increase the extraction of flour and help mill.
-Two machine size for different capacity. Three installation types are available: left-hand, right-hand, twin.

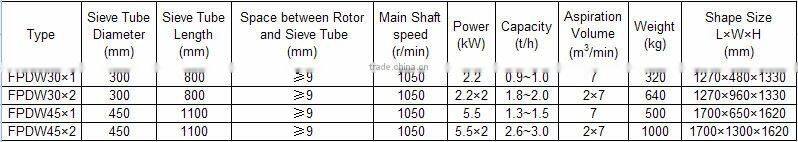

4. Main Details Spec.
