Specifications
1. Capacity: 4.5-10t/h2. Adopt dynamically balanced rotor
3. Special heat treated to ensure wear resistant
4.High quality.
FSJZG Series Insect Destroyer
1. Principle
- This machine is designed for destroying the insects and its eggs in the flour by the rotors and pins in high speed rotoring.
- The circular machine comprises casting iron housing and the motor is flanged installed on the housing. A rotary pins plate is fixed on the motor axis directly. A fixed pin plate combines on the housing. The materials are fed into the machine from the center and discharged from its outlet which is on the tangential direction. Meanwhile, intensive impact occurs between:
a, the pins fixed on the motor and the pins on the housing.
b, the rotoring plate and the pins on the housing
c, the pins fixed on the motor and the housing
Thus most of the insects and its eggs would be destroyed and crushed and the flour could be stored for a longer time.
2. Features
- Advanced design and excellent fabricating.
- Application of imported frame seal for the rotary shaft sealing, no leakage from the machine.
- Dynamically balanced rotor.
- All the surfaces of the impacting pins are special heat treated to ensure wear resistant.
- High quality motor ensures machine running smoothly.
3. Application
- Widely applied in modern flour mills to destroy the insects for a long time storage.
- By-pass is installed with imported limit switch, if the machine stops, the blowing line system will continue.
4. Main Details Spec.

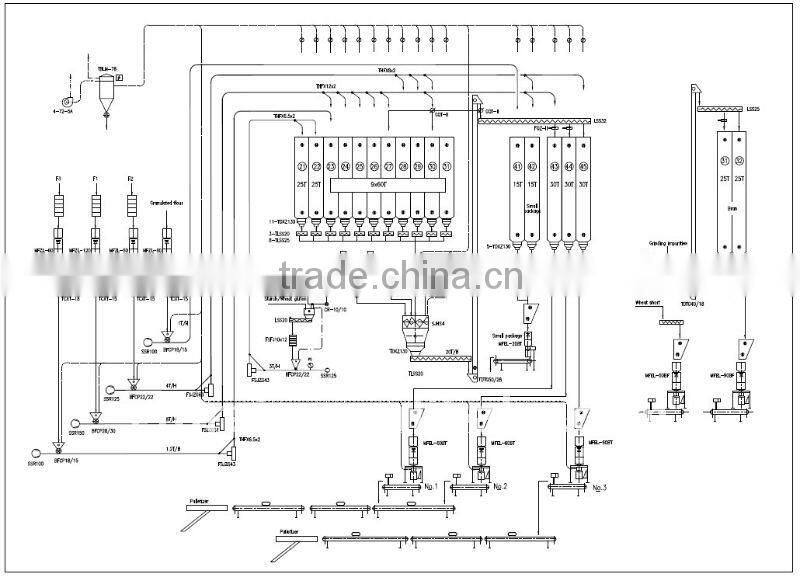

5. Flow Sheet for Material Handling of 300 T/D for Wheat
