Specifications
TQLZ Series Vibrato Separator:1.Capacity:For pre-cleaning 3-75T/H;for cleaning 2-26
2.Amplitude:4-5.5mm
3.Low power required

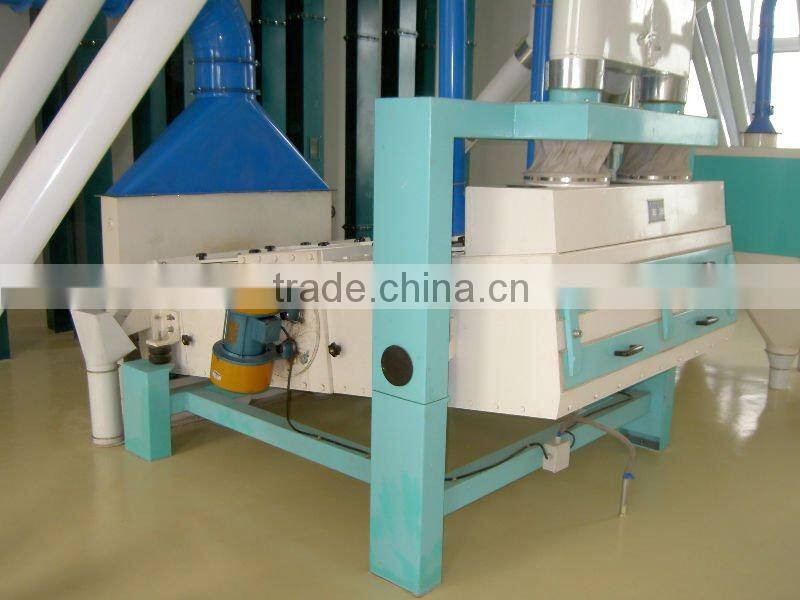

TQLZ Series Vibrato Separator
Principle:
- The sieve boxes, which is mounted on rubber springs is supported by the machine frame, moves back and forth by two vibrators arranged at either side of the machine.
- The separator separates the grain from coarse and fine impurities by sifting. Low-density (light) particles in the grain can also be reliably removed by additionally applying an aspiration channel or an air-recycling aspirator.
- The product is fed to the machine through the central integral inlet. The adjustable distribution device in the inlet allows uniform spreading of the product to be achieved across the top sieve deck. The over tails of this sieve are directed to the lateral outlet, where an additional separation is made into coarse, non-usable impurities and fine, usable particles. After further grading on the second sieve deck, the overs (main product fraction) are fed either to the attached aspiration channel or air-recycling aspirator, or to a simple aspiration box, depending on the machine type.
Features:
- Excellent separating efficiency
- High capacity
- Wide range of applications
- Fast and easy changing of sieves
- Reliable separation of fine and coarse impurities
- Low power requirements
Application:
- This machine together with the aspiration channel or recycling aspiration system is widely applied in flour mills and silos storage cleaning section.
- It is also successfully used in feed mills, seeds cleaning plants, oilseed cleaning plants, cocoa bean and cocoa nibs grading systems in chocolate factories, and other plants.
- In the food processing and feed manufacturing industries.
Specification
