CE Marked chlorine dioxide generator used in water treatment
- 20 Set / Sets per Month
- Shanghai
- T/T
- excavator diesel engine Oil filter element 9N-3367
- 10g 7g ozone generator for lab waste water treatment
- HOT SELLING TRICHLOR TABLET 90 20G TABLET AND 200G TABLET TCCA tablet -840-DRUMS OF 25KG/PE DRUMS OF TRICHLOROISOCYANURIC ACID 200G AND 20 G TABLET for Swimming Pool
- Portable Optical DO meter ODO sensor DO probe
- water Dissolved Oxygen Sensor Optical DO Probe LDO
- On site Chlorine gas generator
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Waterman | Model Number: | CPF-CX |
Product Description
chlorine dioxide generator(CE marked)
clo2 generator
disinfection
cost-effective against microbiology
Overview of CE marked CPF-X Chlorine Dioxide Generator:
1. New type chemical chlorine dioxide solution on site producing system
2. Two chemicals system: Sodium chlorite solution & Hydrochloric acid
3. Capacity of clo2 production: 30g--200g per hour
4. Application: as disinfectant in water / wastewater treatment
5. Three control modes are available: manual, flow rate auto control, and residual clo2 auto control
Main Features:
--- Using positive pressure dosing technology, dosing ClO2 solution directly to pressured treated water

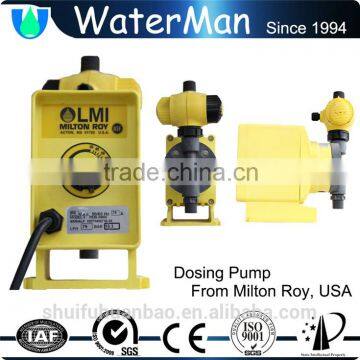

--- Improved and high quality metering pump ensure accurate dosage of materials.
--- Titanium reactor make the equipment safe, reliable and long service life
--- Electrical system using LCD screen to display various parameters and button to adjust various functions
--- Auto Measurement system
--- Little installation work. Almost assembled up before the sale
--- simple,safe,reliable operation and maintenance
The generator has many features of advanced structure, beautiful appearance, powerful function, work reliable, convenient installation and maintenance, and high conversion rate of raw materials.
Technology:
Use sodium chlorite and hydrochloric acid as raw materials, transmission of raw materials through two metering pumps to the reactor, produce the concentration of more than 95% of high-purity chlorine dioxide solution added to water for disinfection. It can automatically adjust the dosage of clo2 solution through value of residual-chlorine provided by the residual-chlorine-on-line control system. When lack of raw materials, the liquid level alarm system will give audible and visible alarm signals and automatically cut off the power supply of equipment. Raw materials conversion rate is more than 95%. We can also customize on customer's requirements for additional functions or provide design recommendations according to the customers’ on-site conditions.
Main parameters:
1.Operating voltage: AC220V plus or minus 20%
2.Working temperature: -5 ~ 50 degrees Celsius
3.Relative humidity: 80%
4.Maximum pressure of water-pipe-line: <0.7Mpa
5.There should be no strong electromagnetic field interference around the equipment.
6.Reactor heating: 60 Celsius Degrees
7.Function:

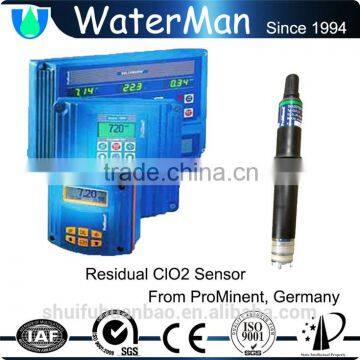

Residual-chlorine-on-line control
Low liquid level alarm function
Timing start / stop function
Alarm remote transfer
Procee Flow diagram:
Model | Clo2 production | Control |
CPF-30XC | 30g | Manual |
CPF-50XC | 50g | |
CPF-100XC | 100g | |
CPF-200XC | 200g |
Model | Clo2 production | Control |
CPF-30XD1 | 30g | Flow rate |
CPF-50XD1 | 50g | |
CPF-100XD1 | 100g | |
CPF-200XD1 | 200g |
Model | Clo2 production | Control |
CPF-30XD2 | 30g | Residual ClO2 |
CPF-50XD2 | 50g | |
CPF-100XD2 | 100g |
