Automatic Blister Packing Machine

Automatic Blister Packing Machine thumbnail-1
Automatic Blister Packing Machine thumbnail-2
Automatic Blister Packing Machine thumbnail-3
Automatic Blister Packing Machine thumbnail-4
Automatic Blister Packing Machine thumbnail-5
Automatic Blister Packing Machine thumbnail-6
Automatic Blister Packing Machine photo-1
Automatic Blister Packing Machine photo-2
Automatic Blister Packing Machine photo-3
Automatic Blister Packing Machine photo-4
Automatic Blister Packing Machine photo-5
Automatic Blister Packing Machine photo-6
US$ 1,000 - 100,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Zhejiang Hoping Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/ Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 50HZ 9KW
Place of Origin Zhejiang, China
Brand Name HOPING

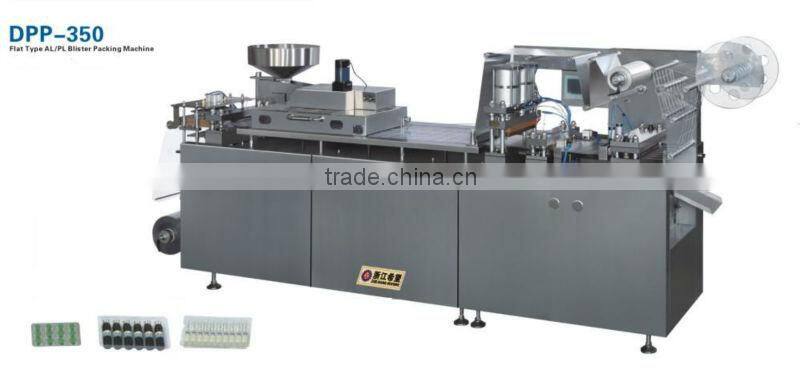

Model Number DPP-350
Dimension(L*W*H) 3890*750*1700
Weight 2000
Certification CE
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas





Automatic Blister Packing Machine



Main Technical Parameter:





 Capacity(punch/time) 20-40
 Range of stroke(mm)                           40-120

 Packing material:Pharmacy PVC(mm)

                                 PTP alu foil(mm)

 (0.2-0.5)*250
(0.02-0.05)*250
 Cleam compressed air                         0.5-0.7Mpa
 Air consumption(m³/min)  ≥0.3
 Power                                                 AC380V 50HZ 10KW
 Water chiller for moulds

 Tap water or recycle water with 60L/h
 Dimension(L-W*H)(mm)                        3890*750*1700
 Net weight (kg)  2000









 Operating position :



        Automatic Blister Packing Machine

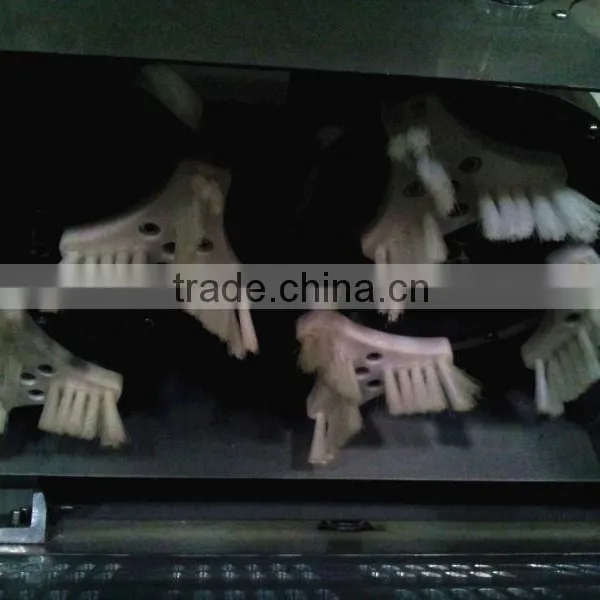

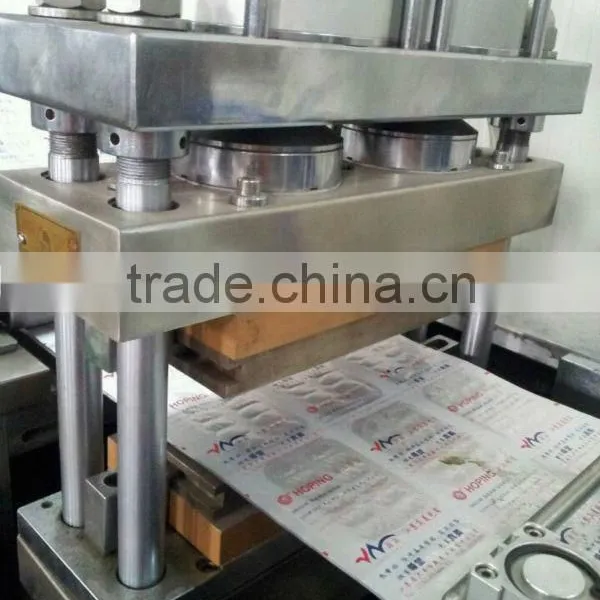

Main function: al/pl mechanism forming, special automatic feeding, PTP alu foil plate sealing, perforation, embossing and blister cutting.

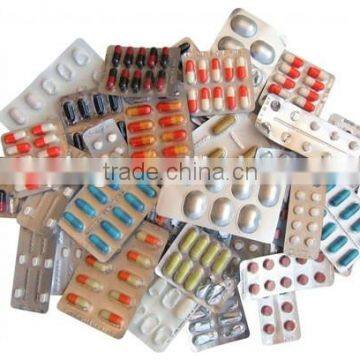

Suitable al/pl blister packing for tables, capsules, irregular tablets and so on.



Packing material: PTP alu foil: (0.02-0.05)×350mm

                               Pharmacy PVC :(0.2-0.4) ×350mm





 Automatic Blister Packing Machine





1,Worm wheel reductor :Main machine overloading protect with lower noise and stabile runnnning .

2,Adjustable range of stroke:can change the stoke dimension freely to suitable more kinds of product.

3,No waste material cutting station can save material cost .

4,Double orientation shafts with shafts with spline shaft transmission adopted to ensure synchronization stablie running]

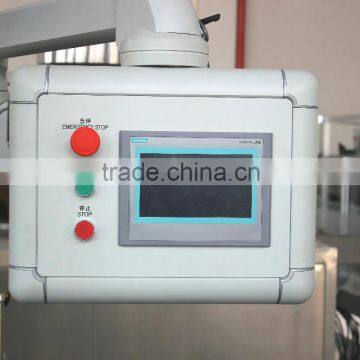

5,Touch screen with PLC block adopted ,stabile operation and easy maintenance.

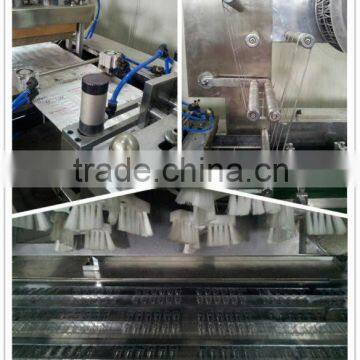

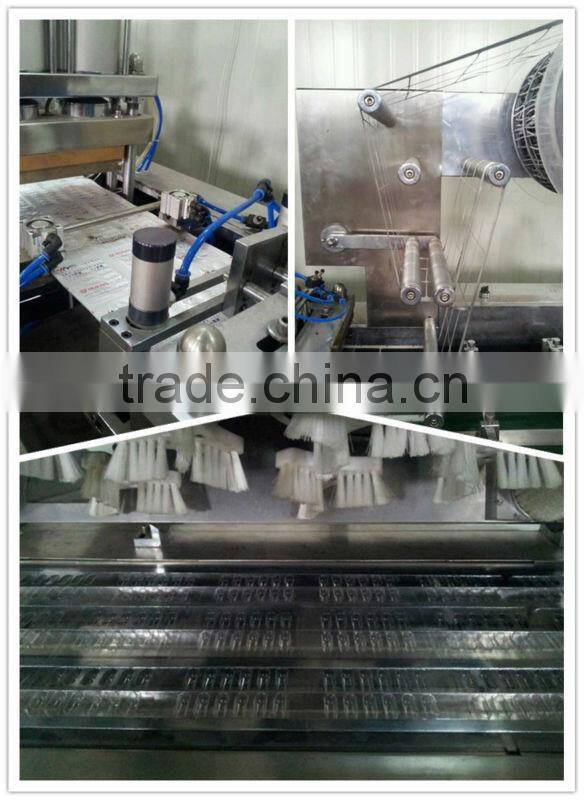

Moulds:

Automatic Blister Packing Machine



Automatic Blister Packing MachineAutomatic Blister Packing Machine



CE Certification



Automatic Blister Packing Machine





Packing



                                                     Automatic Blister Packing Machine

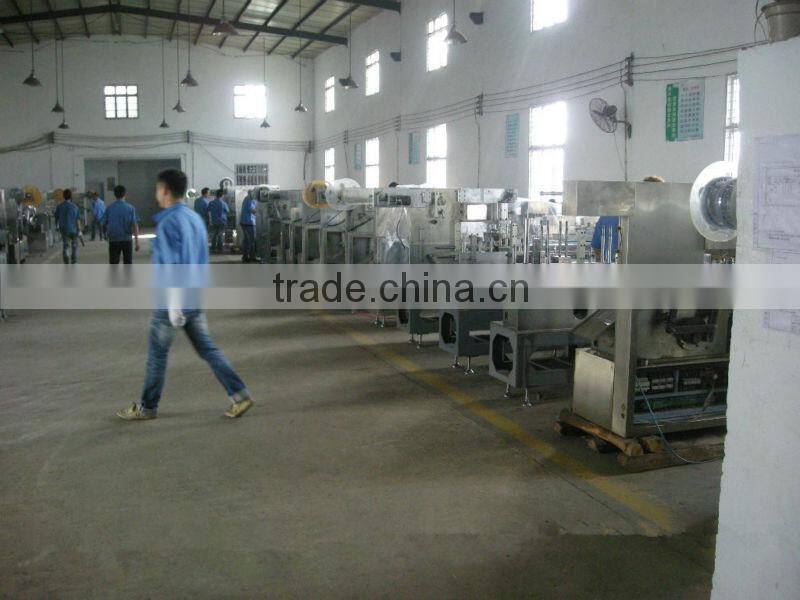

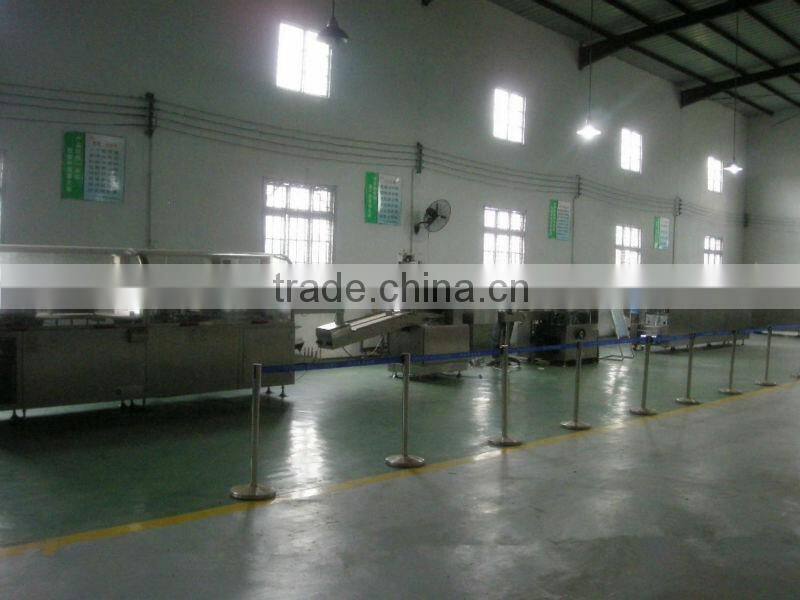

About us



Automatic Blister Packing Machine







Automatic Blister Packing Machine
