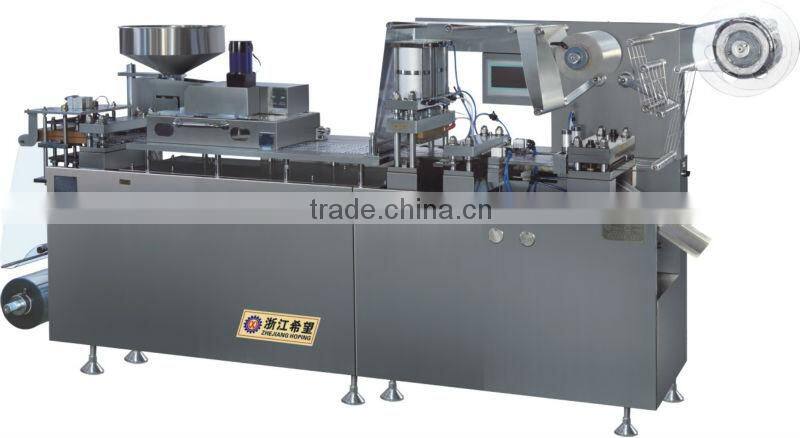

Tropical Blister Packing Machine-DPP250FII/FIII

Name: Tropical Blister Packing Machine-DPP250FII/FIII
Brand: HOPING
SKU: 120716133
Availability: InStock

US$ 1,000 - 100,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical

Automatic Grade:

Automatic

Zhejiang Hoping Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/ Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 50HZ 12KW

Place of Origin Zhejiang, China

Brand Name HOPING

Model Number DPP-250FII/FIII

Dimension(L*W*H) 4890*650*1700

Weight 2600

Certification CE

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Main Technical Parameter:

Capacity(punch/time)	20-40
Range of stroke(mm)	40-120
Packing material:Pharmacy PVC(mm) PTP alu foil(mm) Tropical alu(mm)	(0.2-0.5)*250
	(0.02-0.05)*250
	(0.09-0.15)*250
Cleam compressed air	0.5-0.7Mpa
Air consumption(m³/min)	≥0.3
Power	AC380V 50HZ 12KW
Water chiller for moulds	Tap water or recycle water with 60L/h
Dimension(L-W*H)(mm)	48906501700
Net weight (kg)	2600

Operating position :

Worm wheel reductor :Main machine overloading protect with lower noise and stabile runnnning .
Adjustable range of stroke:can change the stoke dimension freely to suitable more kinds of product.
Online machanical photography detection and rejection device with 100% rejected rate.
Double orientation shafts with shafts with spline shaft transmission adopted to ensure synchronization stablie running

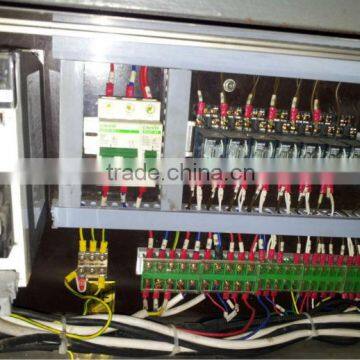

Touch screen with PLC block adopted ,stabile operation and easy maintenance.
Whole machine is assemblage of independent components which makes it can install infitment cleam workshop.

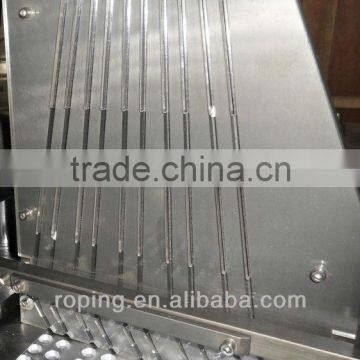

Moulds:

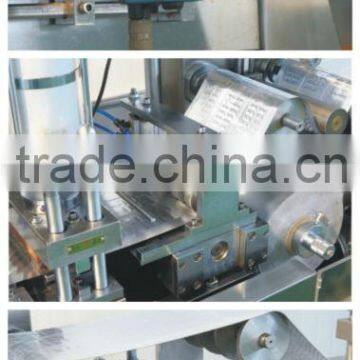

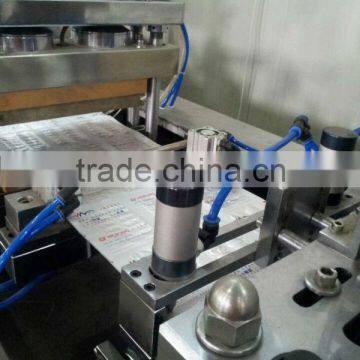

Product Show

Spare parts
