Characteristic:
1. Several equipments connect and mechanical connect ensure synchronizer of each stations
2. With pre-heater plate temperature control and detection, main machine overloading protect, automatic detection system of PVC and PTP material level, stop the machine or feeding level detection and control, automatic protect and stop when troubleshooting
3. Touch screen with PLC mould adopted, stabile operation and easy maintenance.
4. Control system for each single machine but with mutually control system after connected

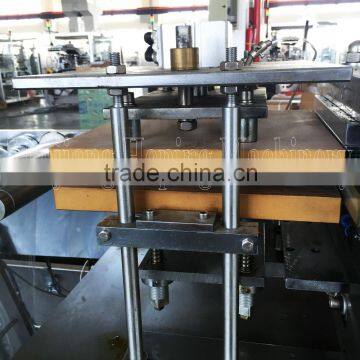

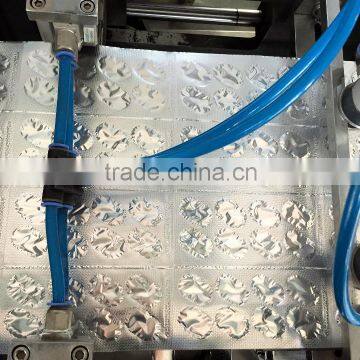

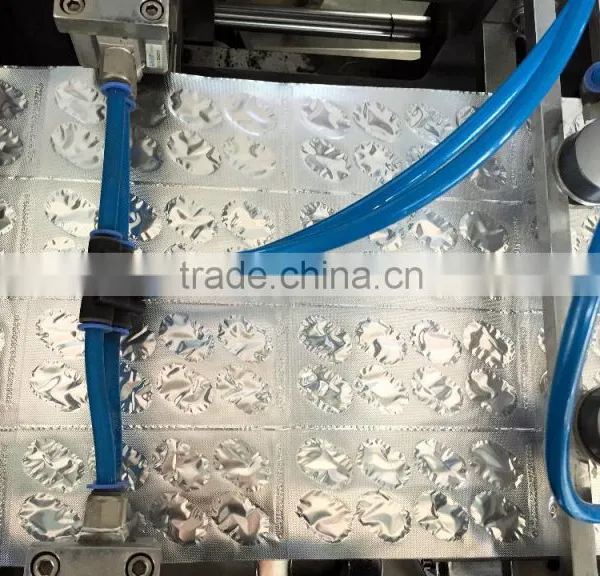

Main function: PVC blister forming, automatic feeding, PTP alu foil plate sealing, embossing, tropical mechanical forming, tropical sealing, blister cutting, finished product transport with servo motor, press the blister, press into blister, press folded leaflet, box packing, detection and rejection device, transport the box to film packing machine, film down, cut, sealing, then to box packing machine.
Suitable all kinds of packing and box packing for tablets, capsules and so on.
Packing material: Pharmacy PVC (0.2-0.5)*250mm .
PTP alu foil: (0.02-0.03)*250mm
Box dimension(L*W*H): (65-125)*(40-78)*(12-65)mm
Cardboard of box required: 250-350g/m2
Leaflet dimension: (L*W): (100-200)*(80-150)mm
Leaflet paper required: 250-350g/m2
Film dimension(L*W*H): (50-300) *(40-220) *(10-90) mm
Material: BOPP or PVC
Using requirement: Clean compressed air with 0.8-1.0MPa pressure.
Air consumption: 4m3/min
Power: 380V 50HZ 18KW
Water chiller for moulds: 100L/h
Vacuum compress air: 0.8-1.0 Mpa
Overall dimension
Tropical packing machine(L*W*H): 4800*750*1700mm
Cartoning machine(L*W*H): 1300*1400*1800mm
Film packing machine(L*W*H): 2300*910*1850 mm
Box packing machine (L*W*H): 2100*1000*1600mm
Finished product transport machine(L*W*H): 1500*950*1300mm
Net weight: 6000kg
Main Technical Parameters:
Capacity 20-35 stroke/min 35-80 boxes/min 10-30 bags/min
Max. Blister depth 15 mm
Range of stoke 40-120 mm
Finished product rate ≥99%
Waster product rejection rate 100%
Automatic tropical blister,Blister-Cartoning automatic
