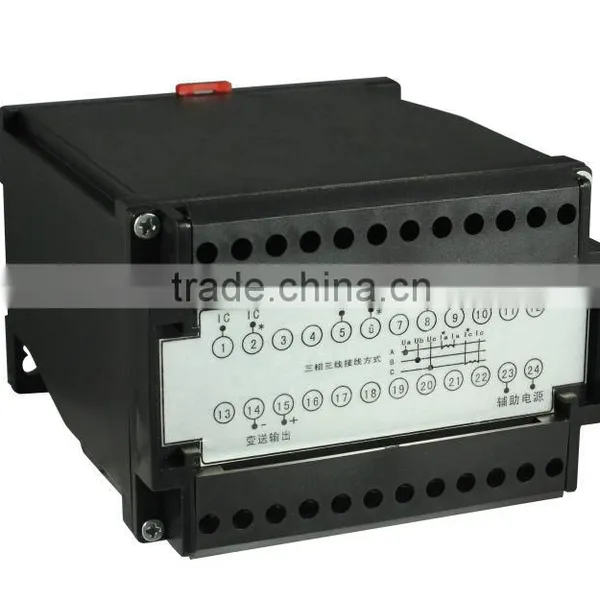

Help CenterThree-phase Reactive Power Transmitter
Related Products
-
Single Phase Voltage TransmitterUS$ 16 - 20MOQ: 1 Piece -
Three-phase Digital Voltage TransmitterUS$ 60 - 75MOQ: 1 Piece
-
Three-phase Active Power TransmitterUS$ 55 - 65MOQ: 1 Piece
-
Three-phase Digital Current TransmitterUS$ 60 - 75MOQ: 1 Piece
-
XMTG-608 LED Temperature ControlUS$ 20 - 22.5MOQ: 50 Pieces
Specifications
It can transmit electrical parameters in the power grid into DC analog signal (0~20mAdc ,4~20mAdc,0~10Vdc, 0~5Vdc).Product overview:
It is a meter which can transmit electrical parameters in the power grid into DC analog signal or digital signal, the product can be applied to electricity collection of various control systems ,building automation ,distribution network automation, community electricity control, industrial automation ,intelligent distribution board, switch cabinet.
.
Product feature:
1.Usage : It is a meter which can transmit three-phase active and reactive power parameters in the grid into linear DC analog signal through isolation.
2. Measurement : three-phase AC current transmission output, three-phase voltage transmission output
3.Precision : 0.5%(according to the use of precision)
4.Output:0~20mAdc ,4~20mAdc,0~10Vdc, 0~5Vdc,etc. analog signal.

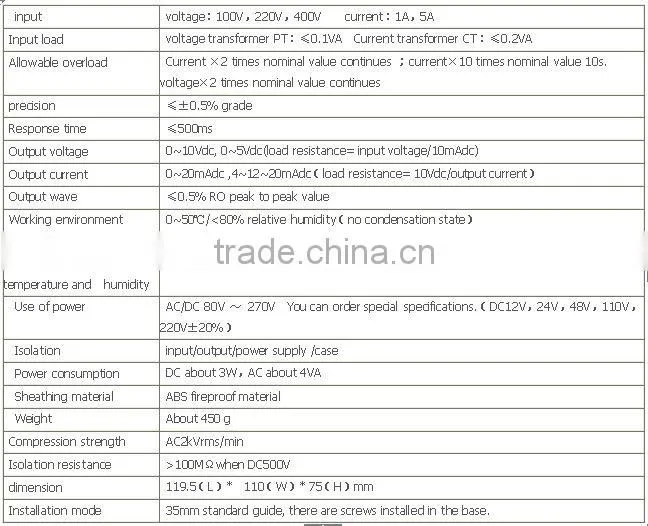

Technical indicators:
Order example:
Example 1: three-phase active power transmission
Signal input: AC380V 5A
Output: DC4-20MA or 0-20MA
Connection mode: three-phase four-wire
Power supply: AC220V or AC/DC80-265V
Other: (In accordance with the default factory settings if not stated)
Example 2: three-phase active reactive power transmission
Signal input: AC10/0.1KV 5A
Connection mode: three-phase three-wire
Output: DC4-20MA or 0-20MA
Power supply: AC220V or AC/DC80-265V
Other: (In accordance with the default factory settings if not stated)
Dimensions:
