Single Phase Power Factor Transmitting Instrument

FOB Price

US$ 30 - 40 / Piece

1 Piece(Min. Order)

Port Shanghai/ Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	HXDZ Single phase power factor transmitter
Model Number	HXDZ-BS4H	Display Type	Analog Only
Measuring Range	0~9999 Single phase power factor transmitter	Accuracy Class	0.5S Grade,1.0S Grade Single phase power factor transmitter
Supply Voltage	AC 220V Single phase power factor transmitter	Operating Temperature	-10~55°C Single phase power factor transmitter
Dimensions	119.5(L)* 110(W)* 75(H)mm

Product Description

Specifications

It can transmit electrical parameters in the power grid into DC analog signal (0~20mAdc ,4~20mAdc,0~10Vdc, 0~5Vdc).

1. Product overview:

It is a meter which can transmit electrical parameters in the power grid into DC analog signal or digital signal, the product can be applied to electricity collection of various control systems, building automation, distribution network automation, community electricity control, industrial automation, intelligent distribution board, switch cabinet.

2. Product feature:

1. Usage: It is a meter which can transmit three-phase power factor parameters in the grid into linear DC analog signal through isolation.

2. Measurement: three-phase power factor transmission output

3. Precision: 0.2%,0.5% (according to the use of precision)

4.Output:0~20mAdc ,4~20mAdc,0~10Vdc, 0~5Vdc,etc. Analog signal.

3. Technical indicators

AC input	Current AC 5A, AC 1A etc. Voltage: AC100V/AC380V
Input load	Voltage transformer CT:≤0.1VA
Allowable overload	Continuous: 1.2 times Instant: voltage 2 times/s
precision	0.5%
Response time	≤500ms
Output voltage	0~10Vdc, 0~5Vdc(load resistance=input voltage/10mAdc)
Output current	0~20mAdc ,4~20mAdc(load resistance≤510Ω)
Output wave	≤0.5% RO peak to peak value
Working environment temperature and humidity	0~50°C/<80% relative humidity(no condensation state)
Storage environment temperature and humidity	-20~70°C/<70% relative humidity(no condensation state)
Use of power	AC/DC 85V ~ 265V, 50Hz
Isolation	input/output/power supply /case
Power consumption	DC about 3W,AC about 4VA
Sheathing material	ABS fireproof material
Weight	About 300g
Compression strength	AC2kVrms/min
Isolation resistance	>100MΩ when DC500V
dimension	119.5(L)* 110(W)* 75(H)mm
Installation mode	35mm standard lead rail

Order example:

Example 1:power factor transmitter
signal input:AC0-100V output:DC4-20MA
working power supply: AC/DC80-265V
others:(In accordance with the default factory settings if not stated)

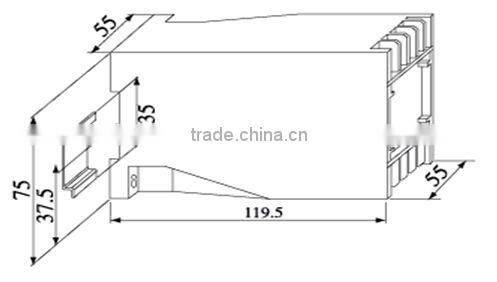

Dimensions:
