Application and properties:
1.Industrial Water Chiller is mainly applicable for working according to heat exchange principle.
2.Applicable for cooling field in modern industry without influence from environmental temperature as the necessary equipment.
3.It adopts quality and newly designed compressor and famous brand water pump and features low noise,power saving and long service life.
4.It is equipped with precise electric temperature controller and is capable of precisely controlling the water temperature at +7°c-+35°c.
5.The condenser and heat radiator with unique design features best heat exchange efficiency.
6.The stainless steel open water tank is convenient for cleaning and maintaining .
7.The product is installed with over current protective device,high and low voltage switch and time delay devices.
8.Automatically alarm and display the fault reason when there's fault.
Technical parameters:
Model |
Freezing Capacity (kcal/hr) |
Water Tank Capacity(L) |
Flow Rate(L/min) |
Water Pump Power(kw) |
Mechanical Dimension(mm) |
Weight(kg) |
IC-5HP |
11300 |
75 |
80 |
0.37 |
970x580x920 |
120 |
IC-7.5HP |
16800 |
100 |
100 |
0.75 |
1270x660x1170 |
210 |
IC-10HP |
22600 |
160 |
160 |
0.75 |
1270x660x1170 |
315 |
IC-15HP |
33600 |
200 |
300 |
1.5 |
1520x635x1680 |
300 |
IC-20HP |
45200 |
240 |
450 |
2.2 |
1680x710x1680 |
750 |

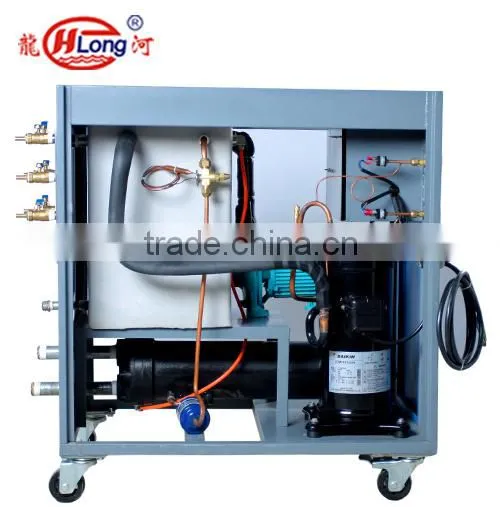

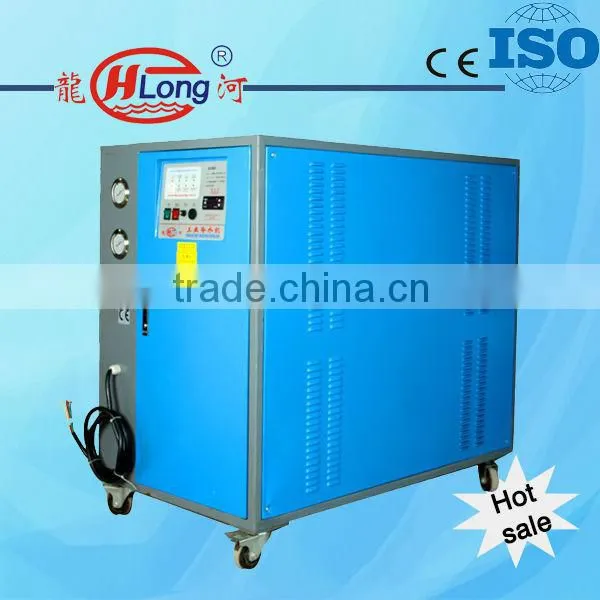

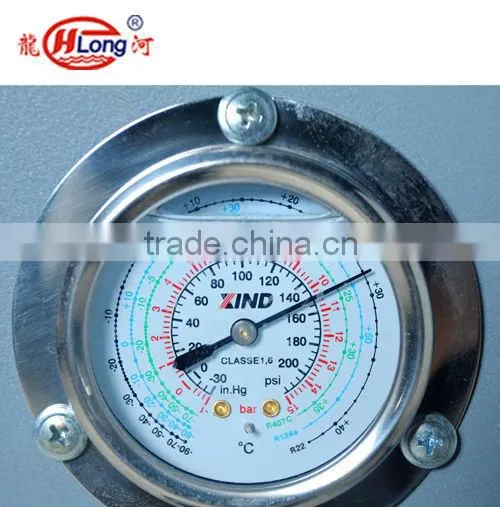

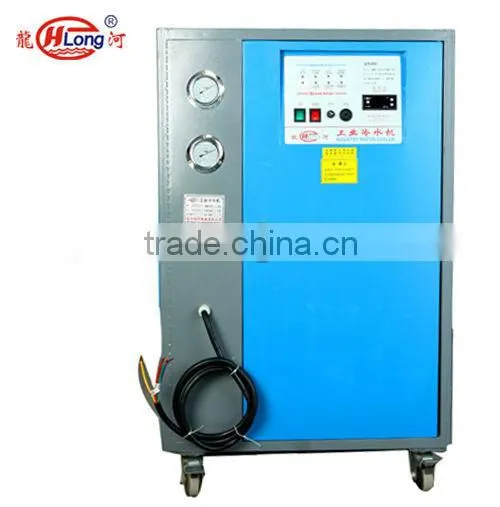

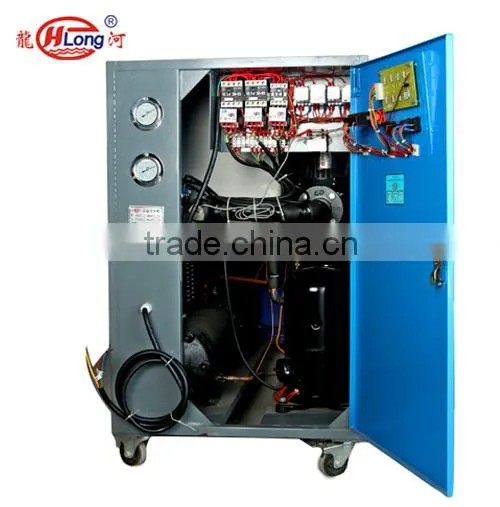

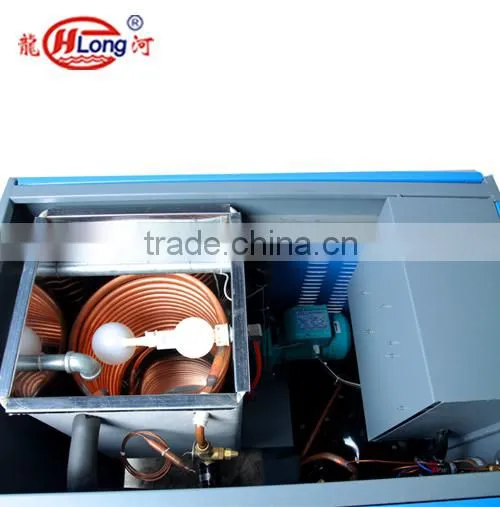

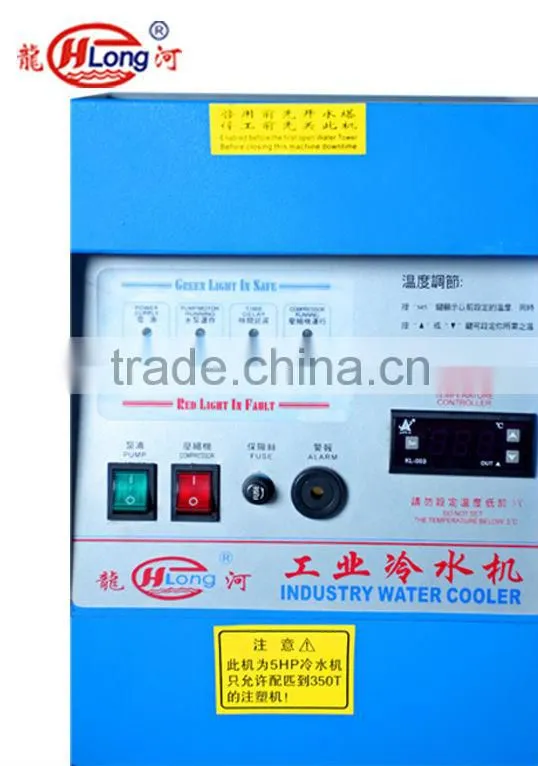

Picture detail:
