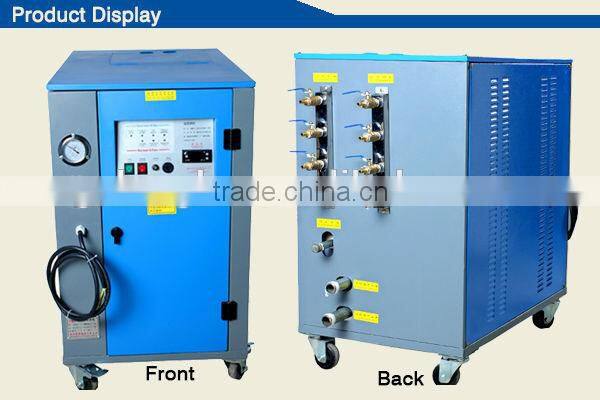

Help Center75L Water Chiller System for Sale in Bangladesh
Related Products
-
5HP High Efficiency Aquarium Water ChillerUS$ 1,400 - 1,800MOQ: 1 Set -
Water Chiller With Sanyo Compressor 5hp-40hp for SaleUS$ 1,400 - 1,800MOQ: 1 Set
-
Water Cooler With Daikin Compressor 5hp-40hp for SaleUS$ 2,800 - 3,200MOQ: 1 Set
-
10hp Cold and Hot Water Dispence for SaleUS$ 2,800 - 3,200MOQ: 1 Set
-
Water Chiller With Sanyo Compressor 5HP-40HP for SaleUS$ 2,800 - 3,200MOQ: 1 Set
APPLICATION AND PROPERTIES:
1.Industrial Water Chiller is mainly applicable for working according to heat exchange principle.
2.Applicable for cooling field in modern industry without influence from environmental temperature as the necessary equipment.
3.It adopts quality and newly designed compressor and famous brand water pump and features low noise,power saving and long service life.
4.It is equipped with precise electric temperature controller and is capable of precisely controlling the water temperature at +7°c-+35°c.
5.The condenser and heat radiator with unique design features best heat exchange efficiency.
6.The stainless steel open water tank is convenient for cleaning and maintaining .
7.The product is installed with over current protective device,high and low voltage switch and time delay devices.
8.Automatically alarm and display the fault reason when there's fault.
Technical parameters:
Model |
Freezing Capacity (kcal/hr) |
Water Tank Capacity(L) |
Flow Rate(L/min) |
Water Pump Power(kw) |
Mechanical Dimension(mm) |
Weight(kg) |
IC-5HP |
11300 |
75 |
80 |
0.37 |
970x580x920 |
120 |
Model |
Freezing Capacity (kcal/hr) |
Water Tank Capacity(L) |
Flow Rate(L/min) |
Water Pump Power(kw) |
Mechanical Dimension(mm) |
Weight(kg) |
IC-7.5HP |
16800 |
100 |
100 |
0.75 |
1270x660x1170 |
210 |
Model |
Freezing Capacity (kcal/hr) |
Water Tank Capacity(L) |
Flow Rate(L/min) |
Water Pump Power(kw) |
Mechanical Dimension(mm) |
Weight(kg) |
IC-10HP |
22600 |
160 |
160 |
0.75 |
1270x660x1170 |
315 |
Model |
Freezing Capacity (kcal/hr) |
Water Tank Capacity(L) |
Flow Rate(L/min) |
Water Pump Power(kw) |
Mechanical Dimension(mm) |
Weight(kg) |
IC-15HP |
33600 |
200 |
300 |
1.5 |
1520x635x1680 |
600 |
Model |
Freezing Capacity (kcal/hr) |
Water Tank Capacity(L) |
Flow Rate(L/min) |
Water Pump Power(kw) |
Mechanical Dimension(mm) |
Weight(kg) |
IC-20HP |
45200 |
240 |
450 |
2.2 |
1680x710x1680 |
750 |
