High quality Ice Flake Machines Manufacturer For Sale

FOB Price

USD $1 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Guangzhou Port
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Capacity	1,000kg daily
Place of Origin	Guangdong, China	Brand Name	CBFI
Model Number	BF1000	Ice Shape	Other, Flake Ice, Flake
Voltage	380v/50hz/3p	Power(W)	8.85kw
Dimension(LWH)	13009601200mm	Weight	210kg
Certification	CE	Warranty	12months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Ice Flake Machines

BF Series Flake Ice Making Machines

BF Series Flake Ice Making Machine produces flake ice -- the top choice among many industries. BF Series Flake Ice Machine has two types: fresh water type and seawater type.

The daily capacity can be applied from 500kg to 60tons in 24 hours. Customers can choose different types according to their sites and water supply quality.

Specifications For Flake Ice Making Machine
Working Conditions	Power Supply	380V/50Hz/3P / 220V/60Hz/3P / 460V/60Hz/3P
	Refrigerant	R22/R404A
	Cooling Way	Water Cooling/Air Cooling/Evaporative Cooling
	Max. Ambient Temp.	+45℃
	Supply Water Temp.	+23℃ to 18 ℃
	Condenser Temp.	+40℃
	Noise	55dB

Main Features

1)Space saved: the structure is compact and simple.

2)Full automatically: the whole ice making and droping process are controlled by PLC controller.

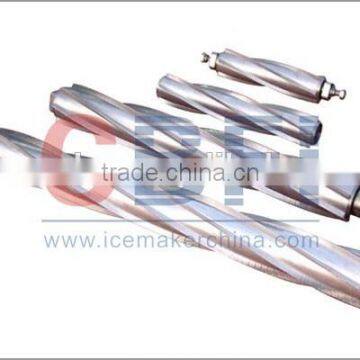

3)High refrigeration efficiency: the latest evaporator with vertical spiral ice cutter is adopted. Water is sprayed by the sprinkler on the inner wall of the evapotator, forming ice quickly. At the same time, the spiral cutter cuts the forming ice, which makes full use of the evaporator surface and increases the efficiency of ice making.

Flake Ice

Features:

1.Ice thickness: 1mm - 2mm.

2.The ice temperature can reach -8℃.

3.The flake shape ensures excellent cooling effect in large area.

4.No sharp edges and will not destroy refrigerating items, which is beneficial for storage and transportation.

Ice Skate

1. Material is 304 stainless steel.

2. Internally-scraping ice skate can help reduce energy consumption and running with low resistance and noiseless.

Water Sprinkling System

Description:

Water sprinkling pan & water sprinkling is 304 stainless steel. They are driven by decelerator and run slowly conterclockwise.

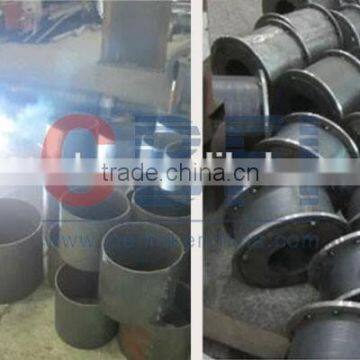

Ice Making Drum

1.Material of flake ice making drum: inner wall is Chrome plate carbon steel with heating process, outside wall is 304 stainless steel.

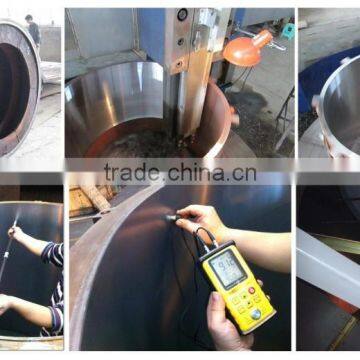

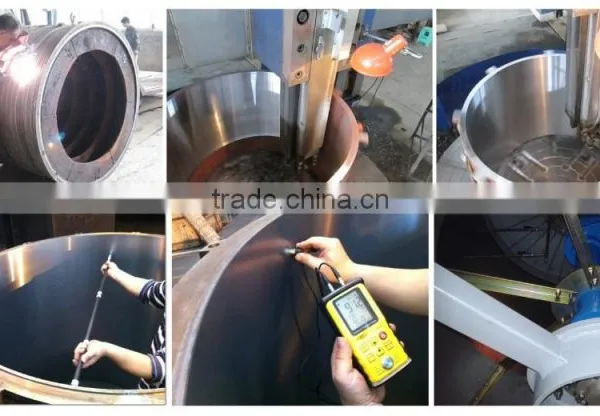

2. Every batch of materials must get a quality report and pass X-Ray flaw detection.

BF series flake ice making machine used in QATAR, customer order 2 set of 10ton flake ice machine with ice screw system in 2014.

Maldives customer brought 2set of 10 ton flake ice machine, one for his fishery industry, the other set for sale flake ice to local people.

3 ton tube ice machine

10ton flake ice machine

10 ton cube ice machine

1.Warranty: warranty is one year.

2.Manual book: We will offer detail instruction book with clear drawing for tell you how to install and operate the machine.

3.If customer have technician who come to Guangzhou and visit our factory, we can train them how to operate and install machines.

4.If customer need our company send technician to customer's side to do installating and training customer operate machines also is possible. We have technicians have been many different countries to work.

5.If you are interested in our products, please contact us. We would be very glad to be on service for you. As the most professional ice machine manufacture in China, we are pleased to do our best offer to open a good market for you. We are definitely to contact you within 24 hours after getting your inquiry.

1. Q: Can the power supply be single phase?

A: Single phase electricity is not applicable. It need the industrial supply electricity for the whole plant, that is to say it needs 3 phase electricity, 380~420V/50Hz/3P or 220~240V/ 60Hz/3P, or other types.
For special power supply type, we will design a special motor for you. So please kindly tell me your local industrial power supply when you send the inquiry, we will offer you based on the exact requirement.

2. Q: If this is my first time to invest ice business, what kind of factor I need to prepare for it?
A: Firstly it is better for you to do some marketing investigation to decide how big capacity machine you need to invest. Secondly you need to check that if there is clean water and power supply for the machine. If the power supply is not stable, many customers consider to equip power generator. As for water, it is better to equip water treatment to make pure water, filling inside machine to make ice.

Water treatment to pure water → ice machine to make ice → digital scale and sealing machine to pack ice bags → cold room to store ice

3. Q: Do you make testing and commissioning before you deliver the machine?
A: Yes, all of our machines will be tested and commissioned at least 3 days to ensure sufficient output and stable performance before delivery. When you get the machine, you just need to connect water and power to make ice.
