High quality Ice Flake Machines For Sale
- 10 Set / Sets per Month
- Guangzhou Port
- T/T Credit Card PayPal
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
- New York FRICK Industrial Refrigeration Unit 649C1091G01 Kunteng 4-LX Control System Main Board
- New GEA explosion-proof energy level sensor model 62750016
Product Details
Condition: | New | Capacity: | 1,000kg daily | Place of Origin: | Guangdong, China |
Brand Name: | CBFI | Model Number: | BF1000 | Ice Shape: | Other, Flake Ice, Flake |
Voltage: | 380v/50hz/3p | Power(W): | 8.85kw | Dimension(L*W*H): | 1300*960*1200mm |
Weight: | 210kg | Certification: | CE | Warranty: | 12months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

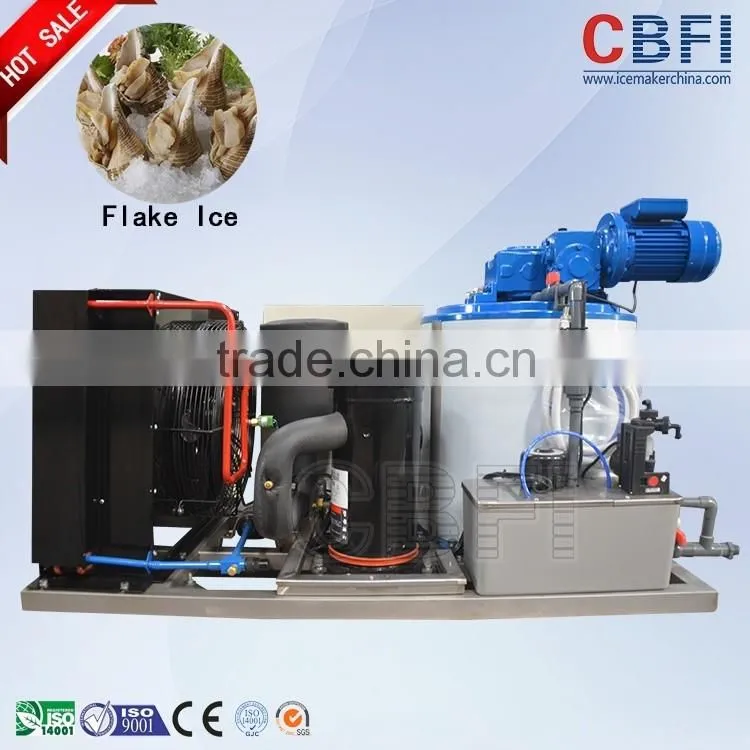

Ice Flake Machines
BF Series Flake Ice Making Machines
BF Series Flake Ice Making Machine produces flake ice -- the top choice among many industries. BF Series Flake Ice Machine has two types: fresh water type and seawater type.
The daily capacity can be applied from 500kg to 60tons in 24 hours. Customers can choose different types according to their sites and water supply quality.
Main Features
1)Space saved: the structure is compact and simple.
2)Full automatically: the whole ice making and droping process are controlled by PLC controller.
3)High refrigeration efficiency: the latest evaporator with vertical spiral ice cutter is adopted. Water is sprayed by the sprinkler on the inner wall of the evapotator, forming ice quickly. At the same time, the spiral cutter cuts the forming ice, which makes full use of the evaporator surface and increases the efficiency of ice making.
Flake Ice
Features:
1.Ice thickness: 1mm - 2mm.
2.The ice temperature can reach -8℃.
3.The flake shape ensures excellent cooling effect in large area.
4.No sharp edges and will not destroy refrigerating items, which is beneficial for storage and transportation.
Ice Skate
1. Material is 304 stainless steel.
2. Internally-scraping ice skate can help reduce energy consumption and running with low resistance and noiseless.
Water Sprinkling System
Water sprinkling pan & water sprinkling is 304 stainless steel. They are driven by decelerator and run slowly conterclockwise.
Ice Making Drum
1.Material of flake ice making drum: inner wall is Chrome plate carbon steel with heating process, outside wall is 304 stainless steel.
2. Every batch of materials must get a quality report and pass X-Ray flaw detection.
BF series flake ice making machine used in QATAR, customer order 2 set of 10ton flake ice machine with ice screw system in 2014.
Maldives customer brought 2set of 10 ton flake ice machine, one for his fishery industry, the other set for sale flake ice to local people.
3 ton tube ice machine
10ton flake ice machine
10 ton cube ice machine
1.Warranty: warranty is one year.
2.Manual book: We will offer detail instruction book with clear drawing for tell you how to install and operate the machine.
3.If customer have technician who come to Guangzhou and visit our factory, we can train them how to operate and install machines.
4.If customer need our company send technician to customer's side to do installating and training customer operate machines also is possible. We have technicians have been many different countries to work.
5.If you are interested in our products, please contact us. We would be very glad to be on service for you. As the most professional ice machine manufacture in China, we are pleased to do our best offer to open a good market for you. We are definitely to contact you within 24 hours after getting your inquiry.
1. Q: Can the power supply be single phase?
A: Single phase electricity is not applicable. It need the industrial supply electricity for the whole plant, that is to say it needs 3 phase electricity, 380~420V/50Hz/3P or 220~240V/ 60Hz/3P, or other types.
For special power supply type, we will design a special motor for you. So please kindly tell me your local industrial power supply when you send the inquiry, we will offer you based on the exact requirement.
2. Q: If this is my first time to invest ice business, what kind of factor I need to prepare for it?
A: Firstly it is better for you to do some marketing investigation to decide how big capacity machine you need to invest. Secondly you need to check that if there is clean water and power supply for the machine. If the power supply is not stable, many customers consider to equip power generator. As for water, it is better to equip water treatment to make pure water, filling inside machine to make ice.
Water treatment to pure water → ice machine to make ice → digital scale and sealing machine to pack ice bags → cold room to store ice
3. Q: Do you make testing and commissioning before you deliver the machine?
A: Yes, all of our machines will be tested and commissioned at least 3 days to ensure sufficient output and stable performance before delivery. When you get the machine, you just need to connect water and power to make ice.
