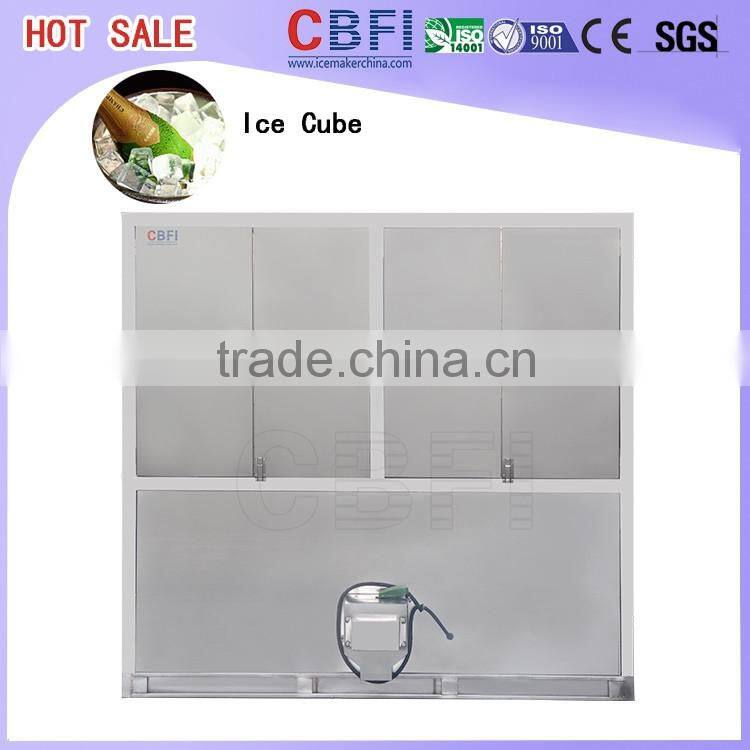

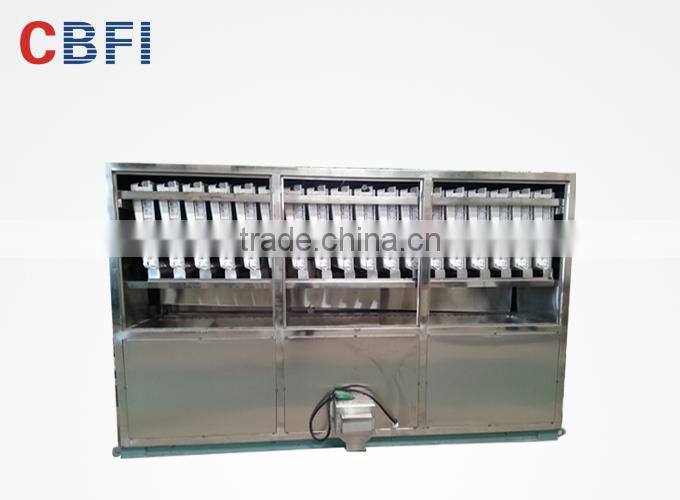

CBFI Automatic Ice Cube Machine For Saudi Arabia Selling

CBFI Automatic Ice Cube Machine For Saudi Arabia Selling photo-1
CBFI Automatic Ice Cube Machine For Saudi Arabia Selling photo-2
CBFI Automatic Ice Cube Machine For Saudi Arabia Selling photo-3
CBFI Automatic Ice Cube Machine For Saudi Arabia Selling photo-4
CBFI Automatic Ice Cube Machine For Saudi Arabia Selling photo-5
CBFI Automatic Ice Cube Machine For Saudi Arabia Selling photo-6
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity:
5000KG
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Capacity 5000KG
Place of Origin Guangdong, China
Brand Name CBFI
Model Number CV5000
Ice Shape Other, Cube Ice
Voltage 220v/60hz/3ph or 380v/50hz/3ph
Power(W) 17.47kw
Dimension(L*W*H) 2890mmX1780mmX1840mm
Weight 1600kg
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Cube Ice Application

Cube ice machines are widely used in hotels, restaurants, bars, fast-food shops, supermarkets and cold drink shops,etc.

Product Model

Model

Daily Production

Rated Power
Water Pump Power
Circulating
Water Pump Power
Cooling Water Pump Power
Machine Dimension
Machine Weight
NO.
TON/24H
KW
KW
KW
KW
W*H*L(MM)
KG
CV1000
1.0
3.69
0.37
1.5
0.37
1800*1000*1600
800
CV2000
2.0
7.11
0.37
1.5
0.55
1630*1600*1686
1000
CV3000
3.0
9.68
0.37
2.2
0.75
1980*1630*1686
1200
CV5000
5.0
18.84
0.55
2.2
1.5
2890*1780*1840
1600
CV8000
8.0
28.52
1.1
4
1.5
4820*1780*2000
2500
CV10000
10.0
37.68
1.1
4
1.5
5730*1780*2000
3000
CV15000
15.0
52.41
1.65
5.5
2.2
8620*1780*2000
4500
CV20000
20.0
75.36
2.2
8
3
11460*1780*2100
6000

Main Features

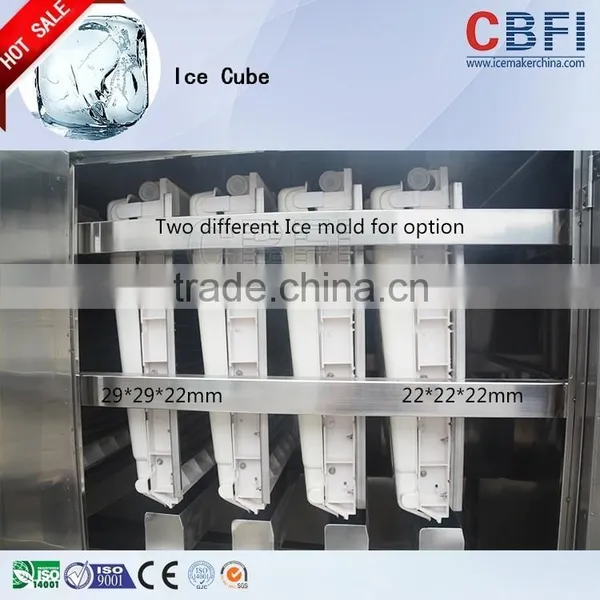

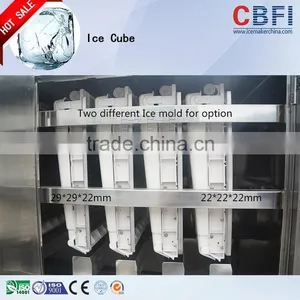

1)Two different cube ice for option:22mm*22mm*22mm or 29mm*29mm*22mm

2)Large ice production: machine designed according to high temperature outdoors to maker sure the production.

3)Low electrric power consumption: 85kw.h/ton cube ice in summer, when the ambient temperature is lower than 23℃(for those small cube ice machine, 150-160kw.h/ton cube ice.

4)Easy operation: adopt PLC system design, one button to operate the machine on and off, ice thickness self-regulation, ambient temperature autoadaptation, automatic supply ice-forming water and facilitated condensing pressure steady system, no need manual operation.

5)Space-saved: integrated design, the structure is compact.

Detailed Images

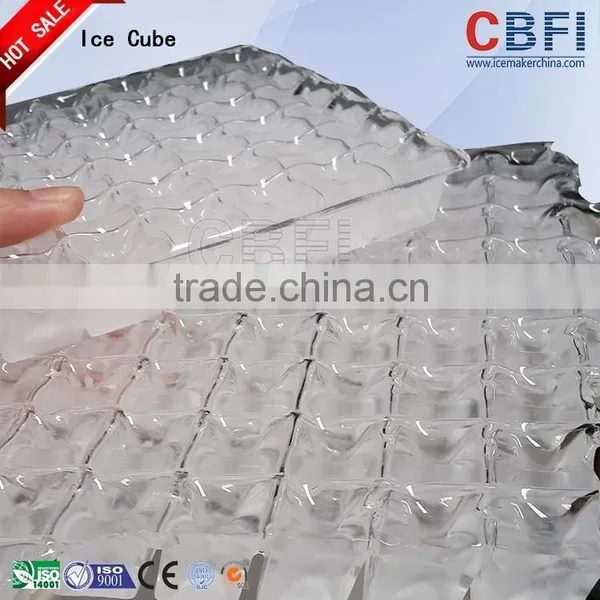

Cube Ice

Features:

1. Two sizes for optional:22mm * 22mm * 22mm, 29mm* 29mm *22mm.

2. Application:  widely used in hotels, bars, restaurants,  fast-food shops, supermarkets and cold drink shops,etc.

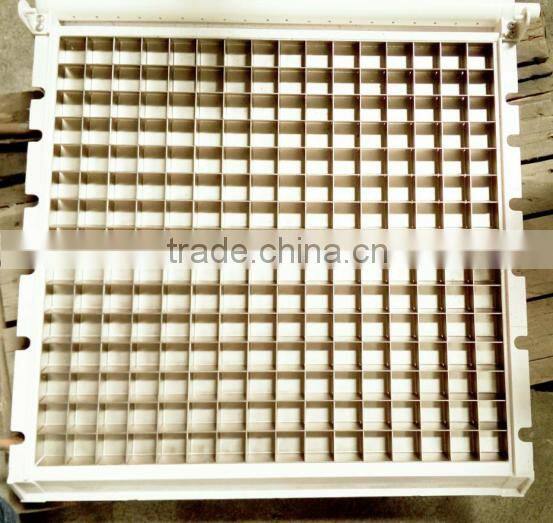

Nickeled Copper Ice Moulds

Features:

1. Adopting copper ice mould coated with Nickel, which can resist 60% concentrated nitric acid to clean and no erosion.When washing ice machine,the low concentration of acetic acid can not clean up the ice moulds.

2. Long use life.


Heat Exchange

Features:

1. Making the ice maker supply refrigerant flows into the expansion valve in a lower temperature, which improves the refrigeration efficiency.
2. Heated some of the liquid return-refrigerant into gas after making ice, which helps all the refrigerant go back into compressor in gas avoiding liquid impact of compressor.


Touch Screen

Features:

1. Easy to operate like the smartphone.
2. Display the machine running situation clearly.
3. It can be designed to control the machine to start or stop by  phone.

Certifications
Packing & Delivery
Packaging
Size
2990mm(L)*1880mm(W)*2040mm(H)
Weight
1.6T



Packaging Details

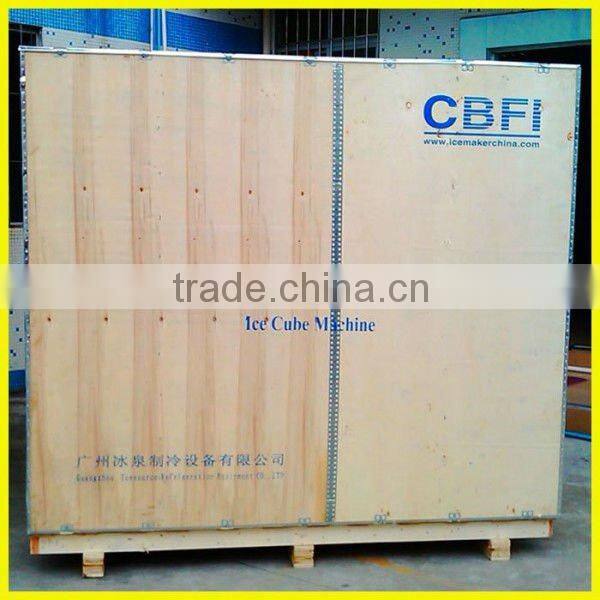

1.The normal package is wooden box.
2.Machine installed completely and strictly tested in our factory before shipping.

Delivery
20 feet container for 2 sets
Related Products

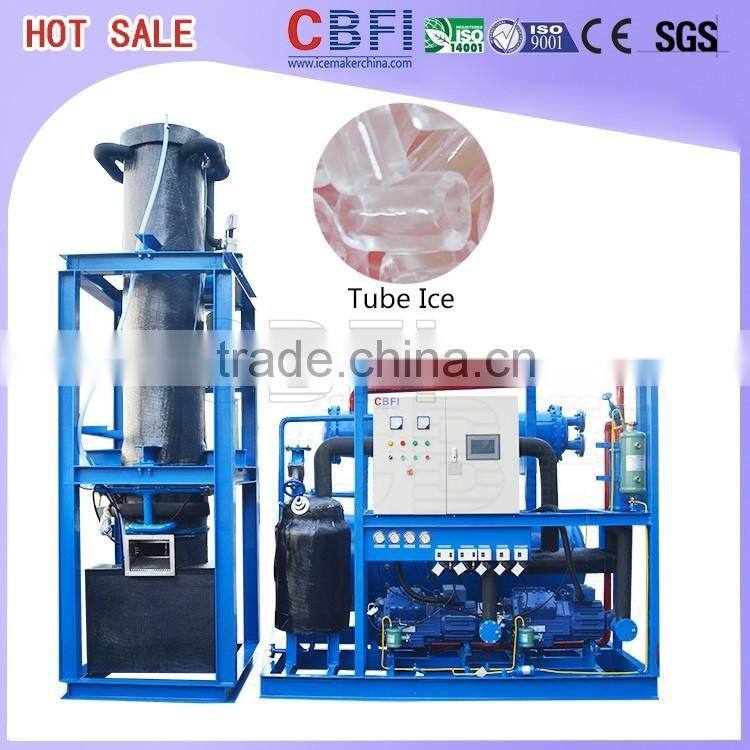

Tube ice machine with link

91.8% Response Rate

2tons ice cube machine with link

91.8% Response Rate

Block ice machine with link

91.8% Response Rate

Our Service

Guarantee period:
1 year for complete machine after selling, the charge of maintenance and parts are free.
Installation:
1. We can send our engineers to assit the installation, provide technical support and train your workers. The cost of accommodation and round-trip ticket should be in charge of users.
2. We will provide you a Tool List with the machine when delivery. The installation tools, water, electricity should be ready before our engineer arrived, and all spare parts are provided accroding to our standard during installation period.
3. If the machine is installed by the users, we will test and install the machine well before shipment, and all necessary spare parts, manual book are provided to guide the installation.
