CBFI Commercial Cube Ice Maker Price for Eating
- 10 Set / Sets per Month
- Guangzhou
- T/T PayPal
- New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
- New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 10000KG | Place of Origin: | Guangdong, China |
Brand Name: | CBFI | Model Number: | CV10000 | Ice Shape: | Other, Cube Ice |
Voltage: | 220v/60hz/3ph or 380v/50hz/3ph | Power(W): | 37.68kw | Dimension(L*W*H): | 5730mmX1780mmX2000mm |
Weight: | 3000kg | Certification: | CE | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CBFI Commercial Cube Ice Maker Price for Eating
Part 1.About Commercial Cube Ice Machine:
1. Ice cube machine for produce food grade ice, cube ice is edible ice.
2. Cube ice you can see often in Restaurant, Hotel, and Wine bar and so on.
3. Cube ice have two sizes for choose, 22mm x 22mm x 22mm, 29mm x 29mm x 22mm.
4. Daily capacity of ice cube machine can be from 1tons to 20tons.
Part 2.Commercial Cube Ice Machine Different Model:
Model | Production | Compressor Rated Power | Circulating Water Pump Power | Cooling Water Pump Power | Cooling Fan Power | Machine Dimension | Weight of Machine |
No. | Ton/24H | KW | KW | KW | KW | L*W*H | KG |
CV1000 | 1.0 | 3.69 | 0.37 | 1.5 | 0.37 | 1200*1000*1600 | 800 |
CV2000 | 2.0 | 7.11 | 0.37 | 1.5 | 0.55 | 1630*1600*1686 | 1000 |
CV3000 | 3.0 | 9.68 | 0.37 | 2.2 | 0.75 | 1980*1630*1840 | 1200 |
CV5000 | 5.0 | 17.47 | 0.55 | 2.2 | 1.5 | 2890*1780*1840 | 1600 |
CV8000 | 8.0 | 28.52 | 1.1 | 4 | 1.5 | 4820*1780*2000 | 2500 |
CV10000 | 10.0 | 37.68 | 1.1 | 4 | 1.5 | 5730*1780*2000 | 3000 |
CV15000 | 15.0 | 52.41 | 1.65 | 5.5 | 2.2 | 8620*1780*2000 | 4500 |
CV20000 | 20.0 | 75.36 | 2.2 | 8 | 3 | 11460*1780*2100 | 6000 |
Note:
--The above information is according to adopt water cooled condenser.
--Size of machine is before installation.
--It did not mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition:
--water temperature: 23Centi degree,
--Evaporate temperature: -12Centi degree, condensing temperature 40Centi degree,
reference valve under 50Hz powersupply. Real production
of machine will have a little change according to changeof
water temperature and ambient temperature.
Part 3. Pictures Show:
Touch Screen

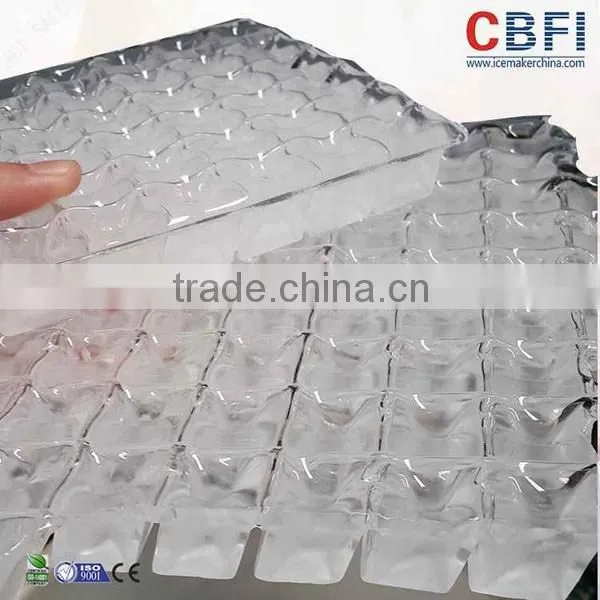

Ice Mould
The other side of ice mould
Cooling Tower
Part 1.
1. Our factory is located in Guangzhou city, China. It is near the Baiyun International Airport
and it is closed two famous port of south China, Huangpu Port and Nansha Port. It is
convenient for load and transport goods and for customers to come to visit our factory.
2. We started in researching, developing and selling all kinds of ice machines since 2004.
3. Our main products are: cube ice machine, tube ice machine, block ice machine, plate ice
machine, flake ice machine and cold room.
4. We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand,
Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico,
Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon,
Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
Welcome more and more customers come to us, visit our factory
and give us suggestion, let us make progress,
thanks!
Part 2. Certificate
Part 1. Packing and Shipping:
1. Standard wooden case.
2.Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and
water pipe fittings.
3. Machine come into use, customers only need prepare power for the machine.
4. All required components for installing the machine will be provided.
Part 2. Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
Guarantee Period: During 12 months after selling, maintenance and parts free of charge.
1.Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2.Q:do you test the ice machine in your factory?
A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
3.Q: can you load ice machine into container?
A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.
4.Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?
A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
