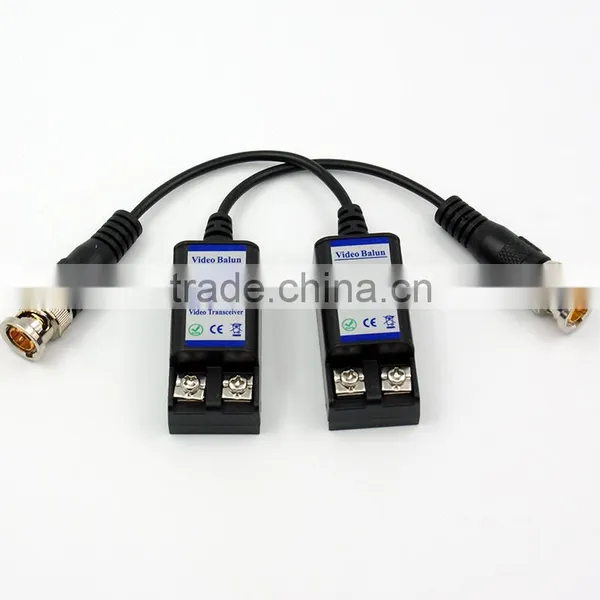

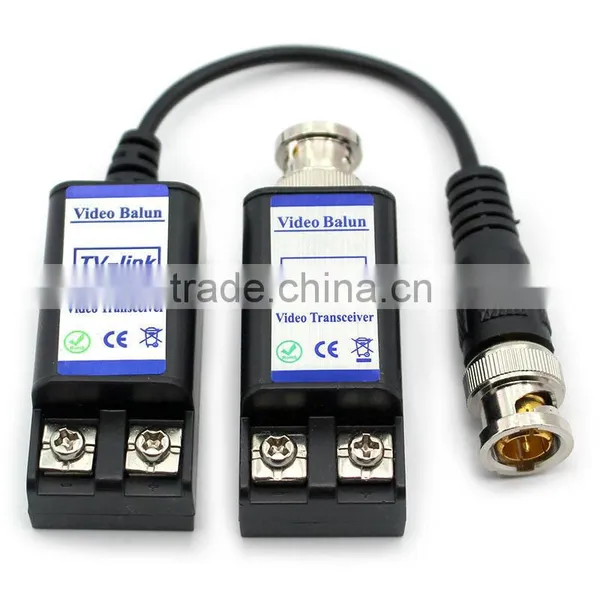

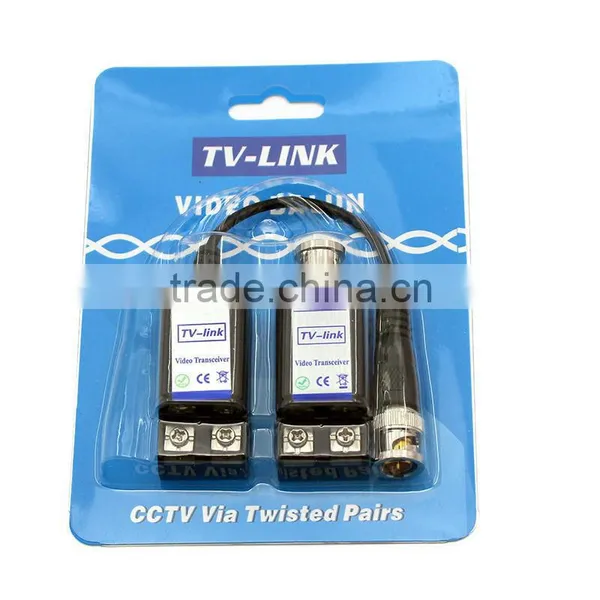

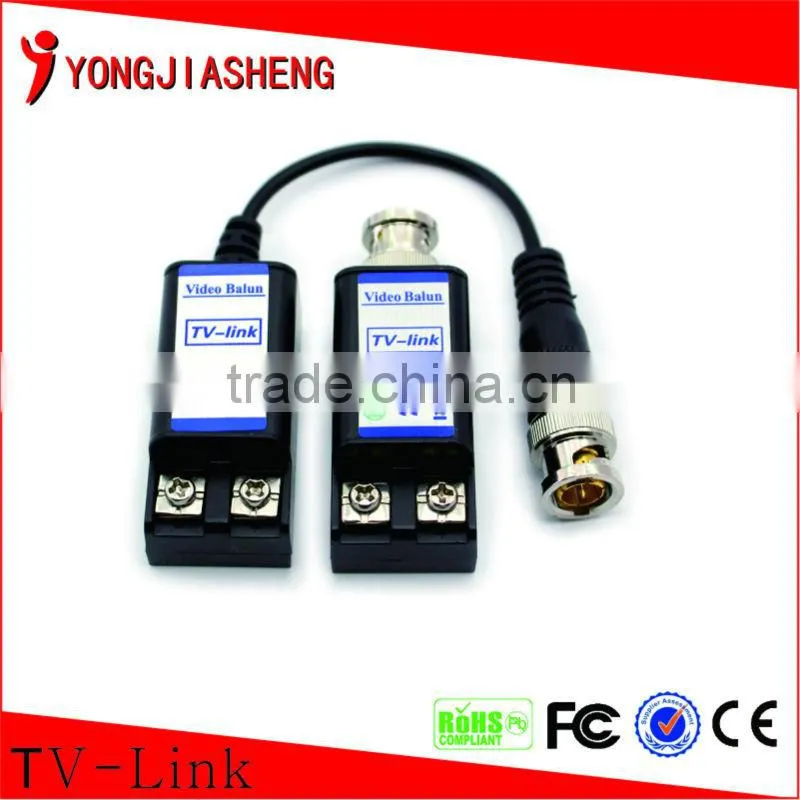

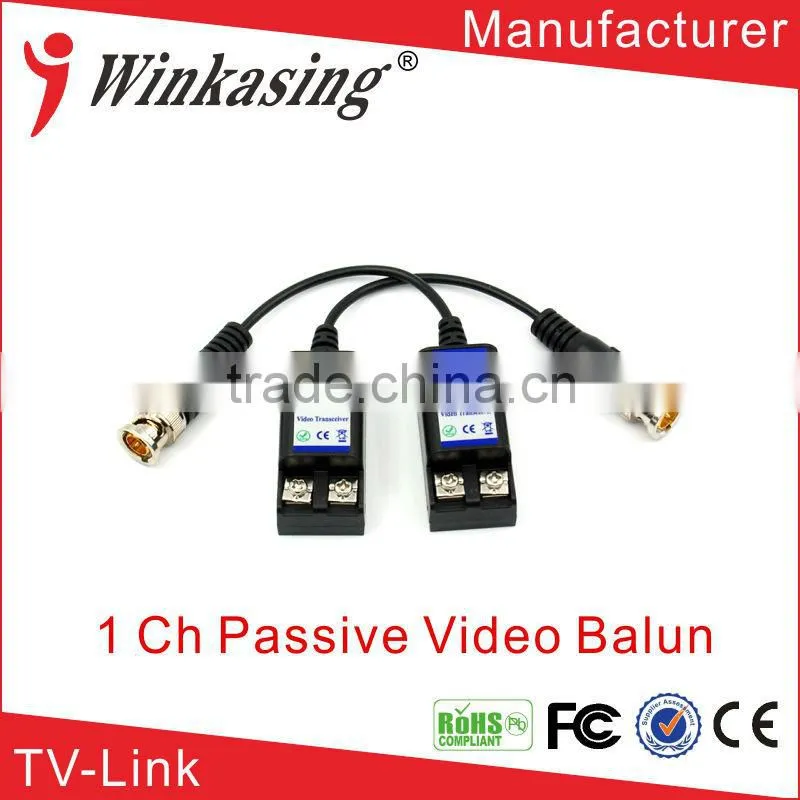

AHD Support HDCVI/AHD/HDTVI/CVBS Surge Protection TV-Link
Features:
- NTSC,PAL&SECAM video format compatible
- Real time transmission
- Exceptional interference rejection
- Wave Filter Design,Anti-Static Design,Surge Protection
- Long-distance transmission and high-quality image
- Compact size and easy installation
- Cost-effective
| ITEMS | SPECIFICATION |
| Transmission Distance | |
| Transmission Distance with passive | 450-650m |
| Transmission Distance with active | 1500m |
| Video | |
| Video Format | PAL,NTSC,SECAM |
| Operating Frequency | DC to 6MHz |
| Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ |
| Attenuation | 1.5dB typ Max |
| Impedance | Male BNC:75Ω |
| Terminal:100Ω | |
| Wire type | |
| Category Type | 5 or better |
| Impedance | 100±20ohms |
| DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) |
| DC Loop Resistance | Different Capacitance |
| Power | |
| No External power required | No External power required |
| Protection | |
| Surge Protection | Renewable solid state surge protection |
| Video Input | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Video Output | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Connector | |
| Video input/output | Male BNC / Screw Terminal |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | Black |
| Dimensions | 146*105*20mm |
| Gross weight | 67g |
| Environment | |
| Operating Temperature | -20℃-70℃ |
| Relative Humidity | 0-95%(non-condensing) |
| Storage Temperature | -40℃-150℃ |
