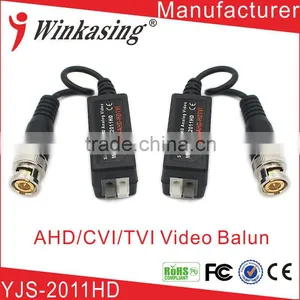

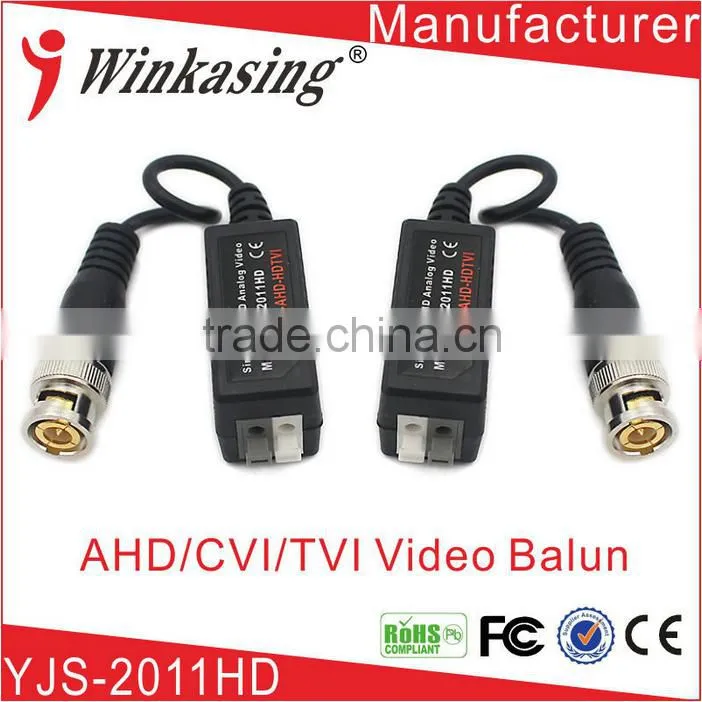

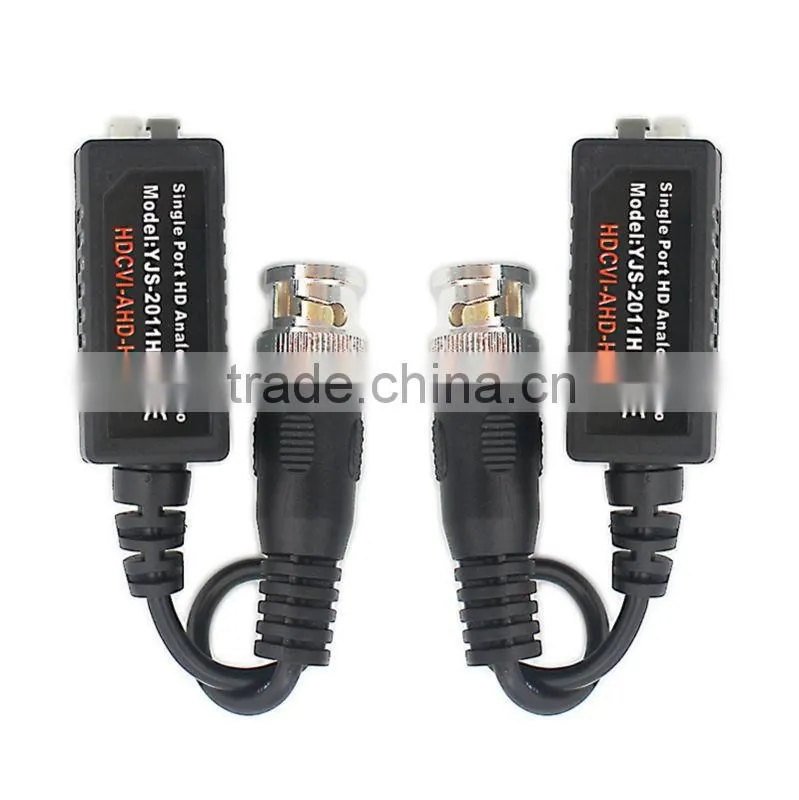

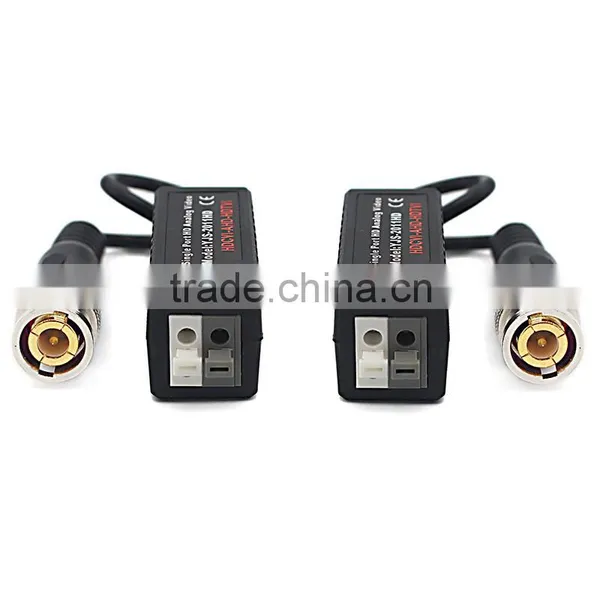

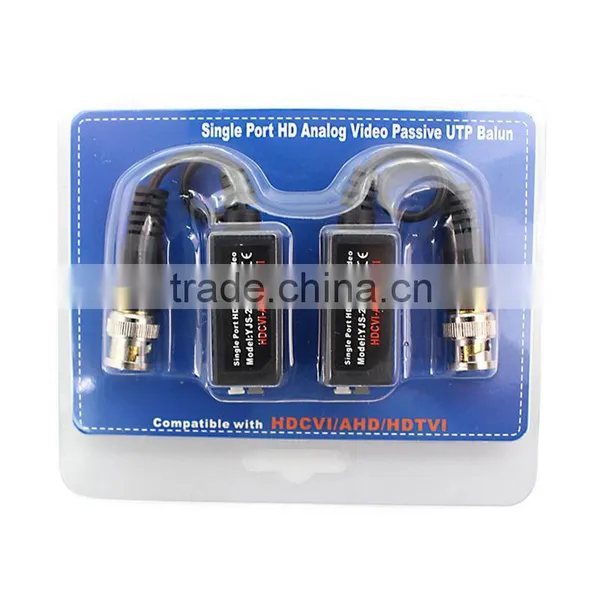

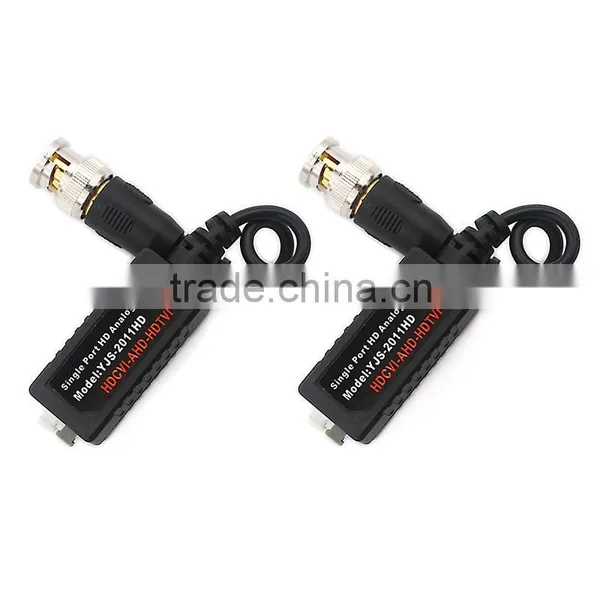

Support HDCVI/AHD/HDTVI/CVBS 300-450M Antijaming Video Bulan
YJS-2011HD
Features:
No power required
AHD/HDCVI/HDTVI video format compatible
Real time transmission
Exceptional interference rejection
Wave Filter Design,Anti-Static Design,Lightning Protection
Long-distance transmission and high-quality image
Compact size and easy installation
cost-effective
Specifications:
| ITEMS | SPECIFICATION |
| Transmission Distance | |
| HDCVI | 720P:600m |
| AHD | 960H/1080P:300m |
| HDTVI | 720P/1080P:200m |
| Video | |
| Compatible Format | AHD/CVI/TVI |
| Resolution | 720P/960H/1080P |
| Operating Frequency | DC to 6MHz |
| Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ |
| Attenuation | 1.5dB typ Max |
| Impedance | Male BNC:75Ω |
| Terminal:100Ω | |
| Wire type | |
| Network Wiring | One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm) |
| Category Type | 5 or better |
| Impedance | 100±20ohms |
| DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) |
| DC Loop Resistance | Different Capacitance |
| Power | |
| External power required | No |
| Protection | |
| Surge Protection | Renewable solid state surge protection |
| Video Input | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Video Output | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Connector | |
| Video input/output | Male BNC / Push terminal |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | Black |
| Dimensions | 203*49*105mm(connector included) |
| Gross weight | 72g/pair |
| Environment | |
| Operating Temperature | -20℃-70℃ |
| Relative Humidity | 0-95%(non-condensing) |
| Storage Temperature | -40℃-80℃ |
| | |
