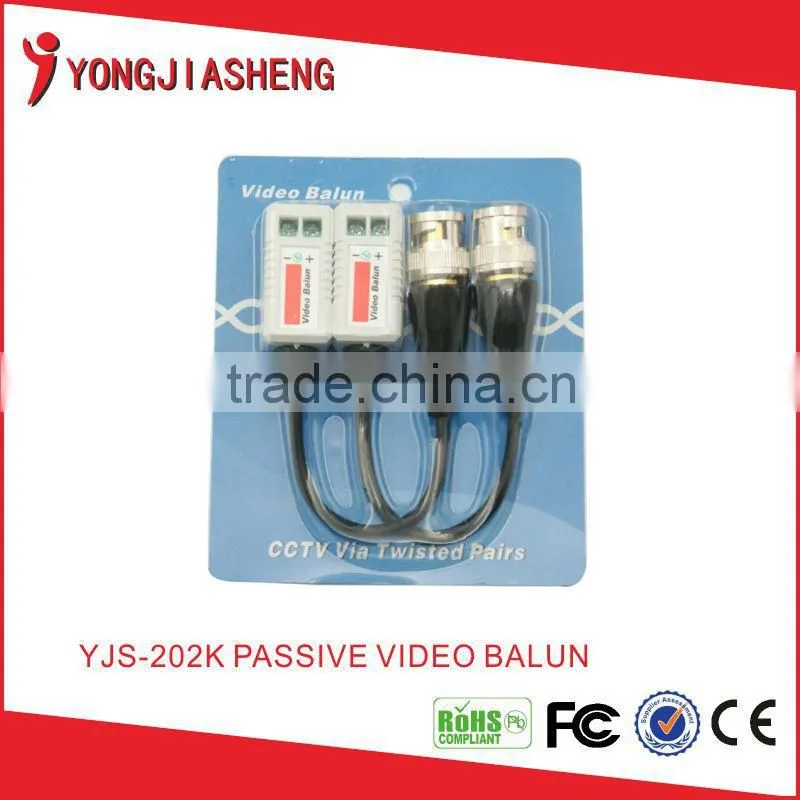

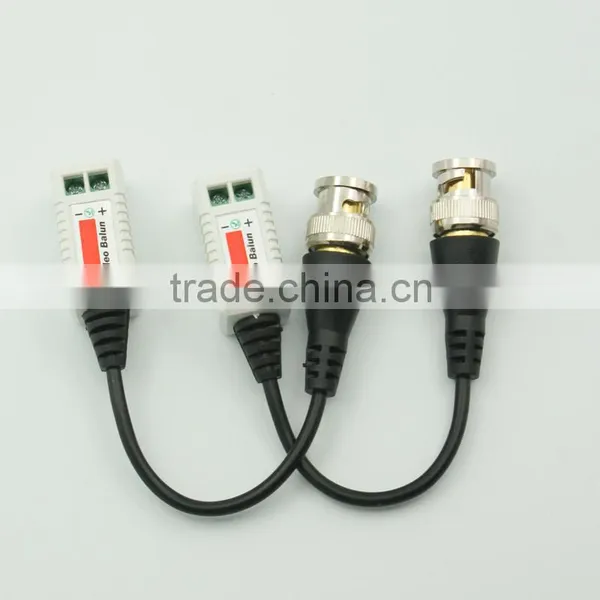

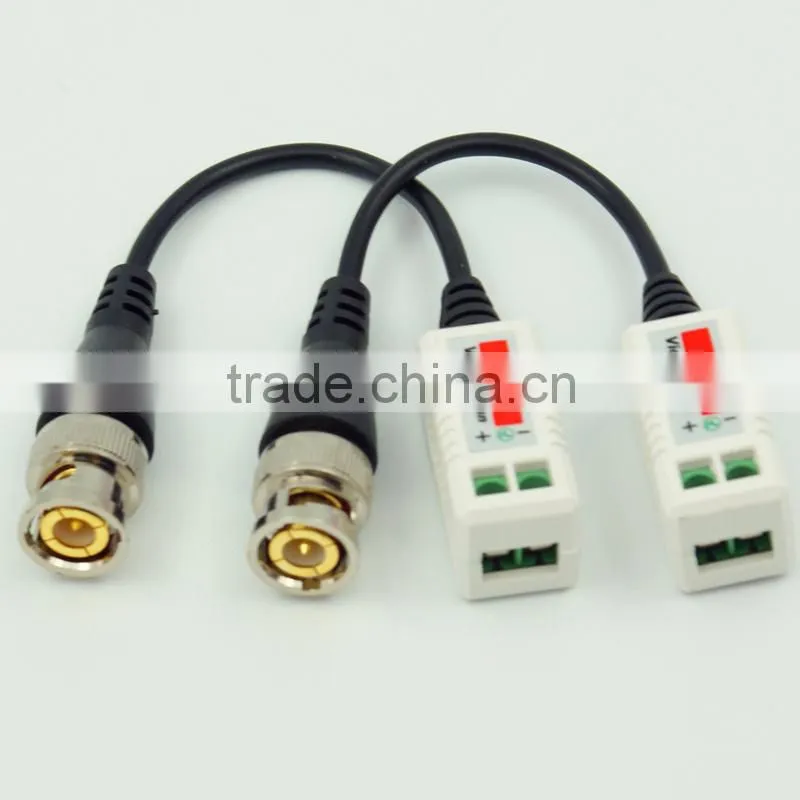

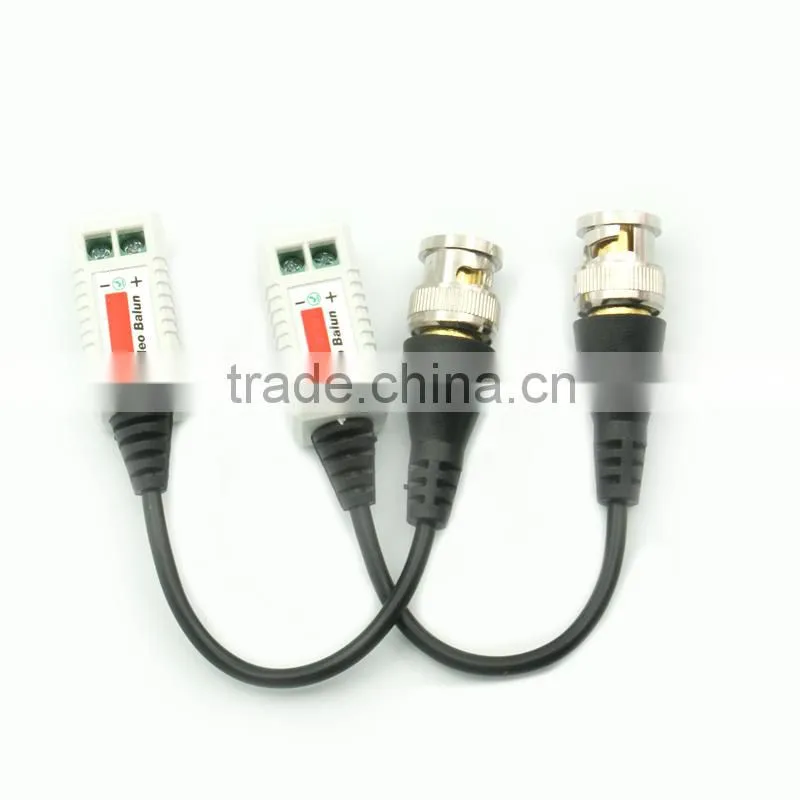

Black BNC Video Balun ESD Anti-jamming 300-450m YJS-202K
Features:
- NTSC,PAL&SECAM video format compatible
- Real time transmission
- Exceptional interference rejection
- Wave Filter Design,Anti-Static Design
- Long-distance transmission and high-quality image
- Compact size and easy installation
- Cost-effective
| ITEMS | ` |
| Transmission Distance | |
| Transmission Distance with passive | 300-450m |
| Video | |
| Video Format | PAL,NTSC,SECAM |
| Operating Frequency | DC to 6MHz |
| Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ |
| Attenuation | 1.5dB typ Max |
| Impedance | Male BNC 75Ω |
| Terminal :100Ω | |
| Wire type | |
| Category Type | 5 or better |
| Impedance | 100±20ohms |
| DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) |
| DC Loop Resistance | Different Capacitance |
| Power | |
| No External power required | No External power required |
| Protection | |
| Video Input | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Video Output | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Connector | |
| Video input/output | Male BNC / Push-Pins |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | White |
| Dimensions | 95*80*14mm |
| Gross weight | 45g |
| Environment | |
| Operating Temperature | -20℃-70℃ |
| Relative Humidity | 0-95%(non-condensing) |
| Storage Temperature | -40℃-150℃ |
CCTV video baluns, also known as UTP baluns, allow traditional coax cable to be replaced by category 5 and other forms of twisted pair wire in CCTV video camera & surveillance installations. Video baluns allow installers to use more cost effective structured cabling techniques to wire security cameras. By using video baluns, UTP wire such as cat-5 can be run over longer distances easier than coax cable and for less money. Active balun transceivers enable UTP wires for cameras to be run distances up to 5,000 feet. If you are new to the idea of using baluns for video, check out our video balun installation videos. We believes that we supply the best UTP video baluns on the market.
The function of the CCTV Video Balun is to allow the traditional 75-ohm coaxial video cable to be replaced by Category 5E/6 (or better) twisted pair in the CCTV security and surveillance environment, thereby allowing CCTV camera and monitoring equipment to be deployed more cost-effectively using structured cabling techniques.
