Set top box:
√ MPEG-4 HD & SD DVB-C/T (MMSD)
√ MPEG-4 HD & SD DVB-T2
√ MPEG-4 HD & SD DVB-S2
√ MPEG-4 HD DVB-C + T2 Combo
√ MPEG-4 HD DVB-T2 + S2 Comb
√ MPEG-4 HD ISDB-T
Value added-ons Service:
√ CAS Porting Service;
√ Software development in Middleware
Dexin, NSTV (Novel supertv) , ABV, Conax, Engima, CryptoGuard, Topreal
Being the strategic partner of some CAS vendors, We have integrated CAS including : Dexin, NSTV (Novel supertv) , ABV, Conax, Engima, CryptoGuard, Topreal. Our main objective now is for PAY-TV operator market. Our product is compatible with major CA systems with advanced security. For high quality CAS porting service you may need, contact us today.
FTA High Definition 7T01 Mstar DVB-T2 Decoder with Scart
It is a Low cost FTA Digital Terrestrial TV Receiver Set Top Box (DVB-T2) with main chipset of Mstar MSD7T01

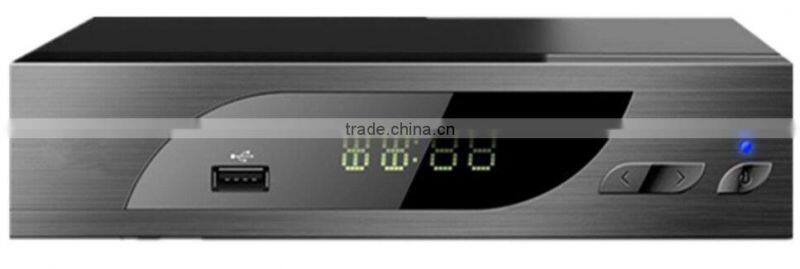

Picture of Mstar DVB-T2 Decoder
Model: MSST1411-2
√ MPEG-4 HD DVB-T2
√ Low cost FTA Terrestrial Receiver
√ Main Processor: MSD7To1 (Mstar Semiconductor)
√ USB, PVR, OTA upgrading
√ Support Dolby AC3 Decoding
Features of Mstar DVB-T2 Decoder
USB 2.0 Host Support (PVR, MP3 Player & Picture Viewer) |
| Recording & Playback with External USB 2.0 Devices |
| Time Shift with External USB 2.0 Devices |
| Recording and Time shift simultaneously |
| Support EPG (Electronic Program Guide), Event recording by EPG |
| Fully DVB Compliant & MPEG-2/H.264 |
| On-screen Display with 16 bit Color Full Resolution |
| Favorite Service group |
| Powerful service control by Favorites, Lock, Skip, Move, Rename and Delete |
| Service Sorting by LCN, Service ID, Network ID and Service Name |
| Multi-Language Supported (OSD & Menu) |
| Tele text, Subtitle Support |
| Maximum 400 services programmable |
| Multi-picture Display |
| Parental lock |
| HD output, CVBS Video & Audio via RCA or Scart output |
| Coaxial Output |
| Software & Service Database Transfer via USB |
Features of Mstar DVB-T2 Decoder
Tuner & Channel
| Input Connector: | F-Tpye, IEC 169-24, Female |
| Frequency Range: | 50MHz-862MHz |
| Demodulation: | OFDM |
| Modulation Format: | QPSK, 16QAM, 64QAM, 256QAM |
| Bandwidth: | 6/ 7 / 8 MHz |
Transport Stream A/V decoding
| Transport Stream: | MPEG-2 ISO/IEC 13818, ITU-Th.264 |
| Profile Level: | MPEG-2 MP & ML, H.264 Main and high Profile Level.4.0 |
| Input Rate: | Max. 20Mbit/s |
| Video Resolution: | 4:3 LetterBox 4:3 PanSacn, 4:3 Full Screen, 16:9 |
| Audio Decoding: | MPEG-1, MPEG-2(Layer I & II),AAC-LC, HE-AAC |
| Audio Mode: | Stereo/ Joint Stereo/Mono |
| Sampling Rate: | 16, 22, 05, 24, 32,44,1KHz and 48KHz |
Main System:
| Main Processor: | MSDyT01 (Mstar Semiconductor) |
| Memory: | FLASH-ROM 4M/ 8Mbytes | DDR2: 64Mbytes |
Front Panel
| USB: | USB 2.0 Host support |
| Buttons: | 3 Buttons (Standby, CH UP / DOWN) |
| Display: | None |
| Indicators: | 2 LEDs (Standby: Red, working: Green) |
Rear Panel
| HDMI | 480i, 480p, 576i,576p,720p,1080i,1080p |
| RCA | AV or Scart output |
| S/PDIF Audio Output | Coaxial output (optional) |
Multimedia Format Supported:
| Video: | mpg,mpeg,dat,ts,trp,tp,m2ts,m2t1,vob,mov,rmvb,rm,mkv,avi,flv,3gp |
| Audio: | MP3 |
| Photo: | JPG, JPEG, JPE, BMP, PNG |
Power Supply:
| Input Voltage: | DC 5V2A or DC 12V/1A |
| Type: | SMPS |
| Power Consumption: | Max.10W |
| Standby Power: | Max. 1W |
| Protection: | Separate Internal Fuse & Lighting Protection |
Physical Specification:
| Size (W x D x H): | 168mm * 70mm * 36mm |
| Operating Temp.: | 0℃- + 45℃ |
| Storage Temp.: | -10℃- - + 70℃ |
More products
Customized your own HD and SD DVB-C, DVB-T2, DVB-S2 set top box from our strong R & D team
With a team of experienced software engineers on staff, we are constantly researching and providing Receiver DVB-C, DVB-T2, DVB-S2 the lastest and better
We are an R & D-oriented supplier, specializing in DVB (HD & SD DVB-C, DVB-T2/T, DVB-S2) Research & Development, Production.
Strong R & D capability is the key reason behind our success. All software & hardware are designed by our self high-quality technical team that why we're able to make product customization according to customer's needs, as well as continuously supplying technical supports & services to customers.
Strong R & D Strength behind Your Orders:

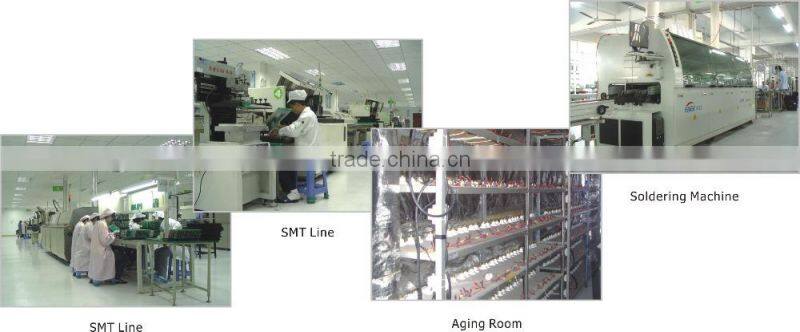

Our R & D technician develop our own DVB in-house. The software development team can handle almost every aspect of DVB software stack starting from bottom most layers to top most layers, allowing us to smoothly integrate just what features you require.
Our main objective now is for PAY-TV operator. Our STB boxes (DVB-C/T2/S2) have made their way into hundreds thousand of homes throughout Europe, the Americas, Asia, and Africa through our client base of over 90 operators in 25 countries and regions. To support the volume requirements of these buyers, we produce up to 100,000 DVB receivers monthly.
Customization for your own Set top box DVB-C, DVB-T2, DVB-C, DVB-S2 today!
