Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Supply Gyratory Crushers Impact Hammer

Supply Gyratory Crushers Impact Hammer

Name: Supply Gyratory Crushers Impact Hammer
Brand: HYSAN
SKU: 120600041

Supply Gyratory Crushers Impact Hammer thumbnail-1

Supply Gyratory Crushers Impact Hammer photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Hammer Crusher

Application:

stone crusher

Contact Supplier Request Quote Chat Now

Shandong Hysan Road&Bridge Mechanical Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Hammer Crusher

Application stone crusher

Motor Type AC Motor

Power(W) 132 kw

Capacity(t/h) 150-200 T/h, 150-200 t/h

Place of Origin Shandong, China

Brand Name HYSAN

Model Number PC-1215

Dimension(L*W*H) 2625*2120*2460mm

Weight 12.5 ton

Certification ISO9001-2008

Warranty one year excluding wearing parts, whole using life

After-sales Service Provided Engineers available to service machinery overseas

Working Principle

When the hammer mill crusher machine operates, the motor drives the rotor to run at a high speed through the V belt, and there are a series of hammers on the rotor . When the materials go into the crushing cavity area of hammers, the hammers will crush them with the impact force , and the final products can be discharged by the outlet and then the large size products are brought back to the crushing area by the hammers for being re-crushed until they reach the required size until the particle size can meet the requirements.

Specifications of Hammer Crusher :

Model	Feeding size ≤(mm)	Output size (mm)	Capacity (t/h)	Moter(KW)
PCφ800*800	500	≤10-60	40-60	45
PCφ800*1000	500	≤10-60	50-80	55
PCφ1000*1000	550	≤10-60	60-100	75
PCφ1000*1200	550	≤10-60	80-120	90(45+45)
PCφ1000*1400	550	≤10-60	100-150	110(55+55)
PCφ1000*1800	550	≤10-60	100-160	132
PCφ1200*1400	550	≤10-60	130-180	132(75+75)
PCφ1200*1500	550	≤10-60	150-200	132(75+75)
PCφ1200*1800	550	≤10-60	180-280	200
PCφ1500*1800	650	≤10-60	180-400	200(110+110)
PCφ1500*2000	650	≤10-60	200-450	250-280
PCφ1800*2000	700	≤10-60	240-680	500(250+250)
PCXφ1400*1200	100	≤12	80-120	160-200

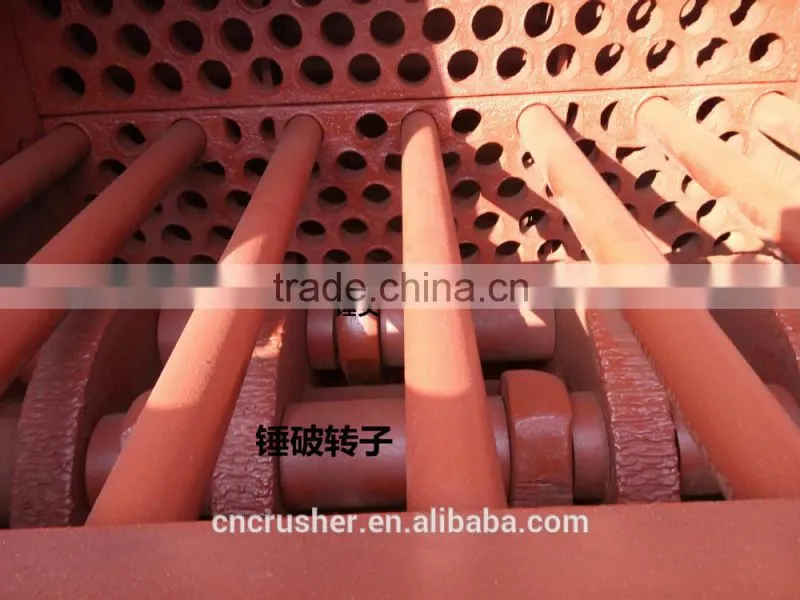

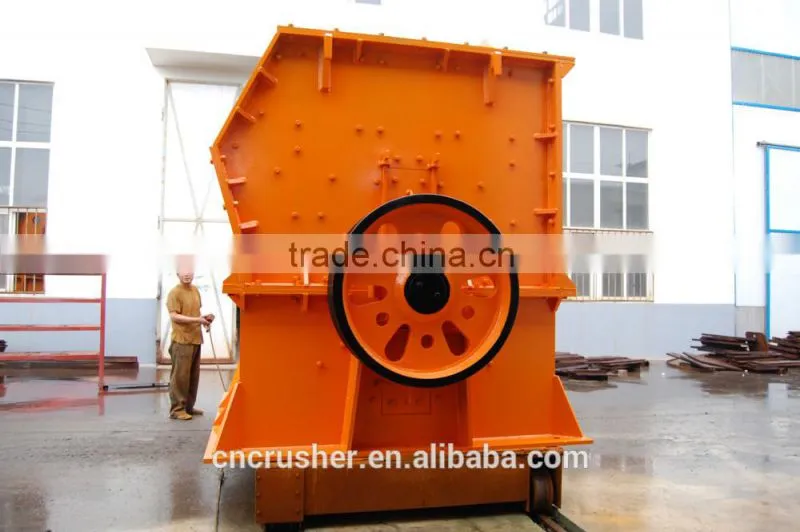

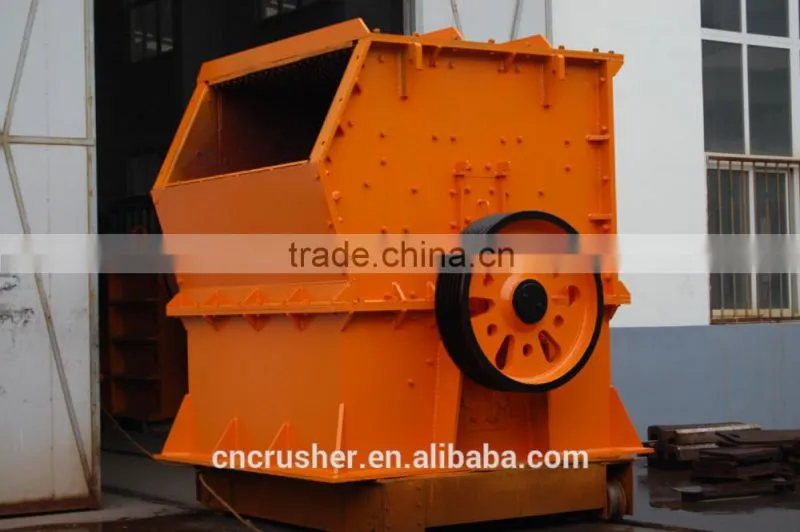

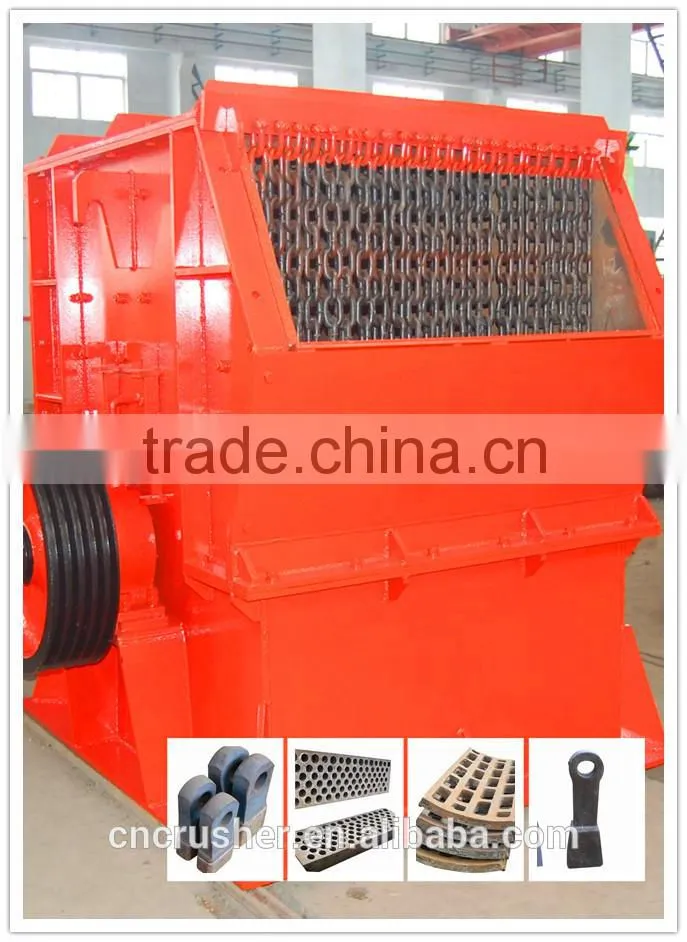

Hammer Crusher and Spare Parts Images

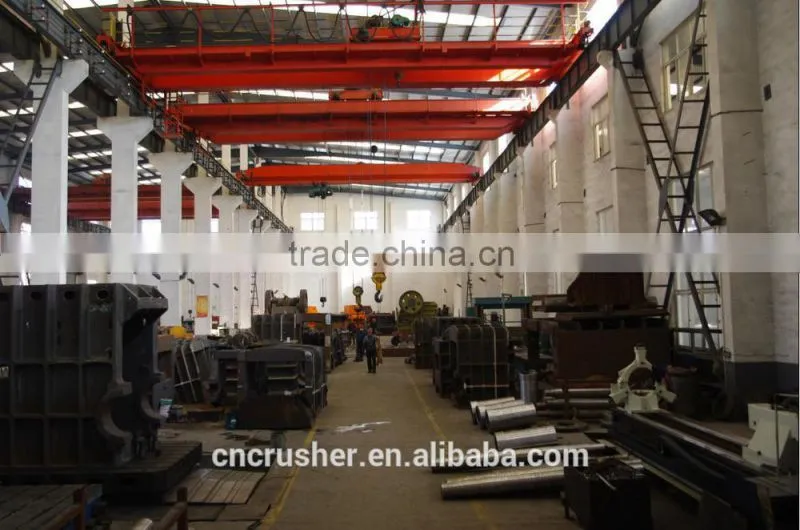

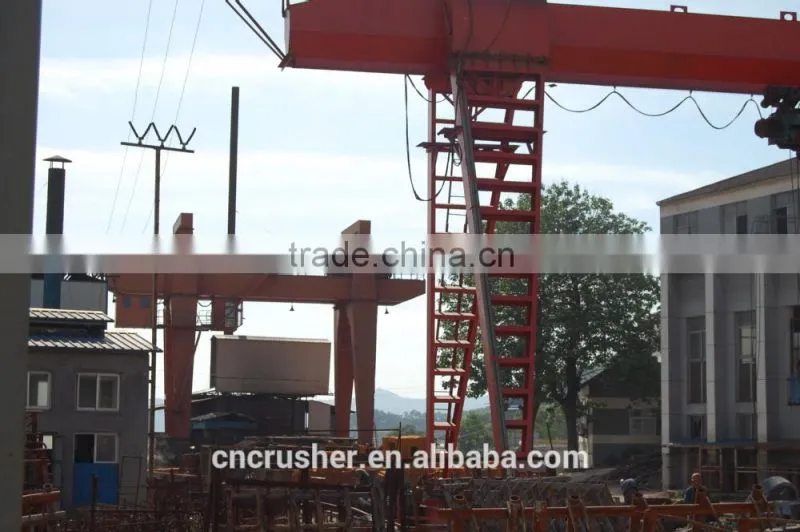

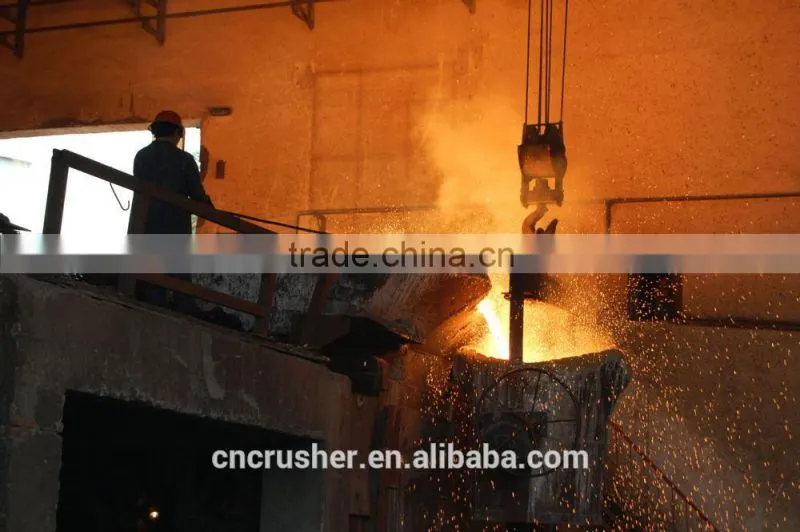

Casting & Production Department

Why Choose Us

1. We are the hammer crusher manufactory

Shandong Hysan technology Machinery CO., LTD are specialized in hammer crusher for over 20 years, with lower price, good quality and assured full after service.

2.Professional quality control team

We have professional technology staff to control the processing of production and finished machine so that we can assure the quality of crusher and spare parts.

3. Quick feedback

Any mail or message will be replied within one day;

4. Service and training

We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand. Besides, We will provide equipment operation training for you; We have a professional after-sale service team to promptly solve your problems. During the guarantee period, we will deliver the wear parts for free. Over the period, customers can get the lowest price of spare parts from us.

Advantages

1. The hammer is cast by the new technology with the character of wear resistance and impact resistance.
2. The particle can be adjusted according to the needs of customers.
3. The sealed machine body can solve the dust pollution and ash leak problem.
4. Attractive appearance, compact structure, less wearing parts, easy maintenance, upgrade and update machine.
