Mini Hammer mill is used for the primary crushing that can crush material of maximum particle of 600-1800mm to 25mm or less than 25mm. The hammer mill is used widely for the secondary and fine crushing of mid-hard material, such as limestone, slag and coal. It is prevalent in cement, chemical, electric power and metallurgy industry.
The mini hammer mill is suitable for both dry and wet crushing of brittle, medium-hard materials for the mining, coal, metallurgic, construction material, road building, and chemical industries. the maximum, compressive resistance of the crushed materials can be up 150Mpa.
Specifications of Mini Hammer Mill :
Model |
Feeding size ≤(mm) |
Output size |
Capacity (t/h) |
Moter(KW) |
PCφ375*300 |
100 |
3-15 |
3-5 |
5.5 |
PCφ600*400 |
100 |
10-35 |
12-15 |
18.5 |
PCφ800*800 |
500 |
≤10-60 |
40-60 |
45 |
PCφ800*1000 |
500 |
≤10-60 |
50-80 |
55 |
PCφ1000*1000 |
550 |
≤10-60 |
60-100 |
75 |
PCφ1000*1200 |
550 |
≤10-60 |
80-120 |
90(45+45) |
PCφ1000*1400 |
550 |
≤10-60 |
100-150 |
110(55+55) |
PCφ1000*1800 |
550 |
≤10-60 |
100-160 |
132 |
PCφ1200*1400 |
550 |
≤10-60 |
130-180 |
132(75+75) |
PCφ1200*1500 |
550 |
≤10-60 |
150-200 |
132(75+75) |
PCφ1200*1800 |
550 |
≤10-60 |
180-280 |
200 |
PCφ1500*1800 |
650 |
≤10-60 |
180-400 |
200(110+110) |
PCφ1500*2000 |
650 |
≤10-60 |
200-450 |
250-280 |
PCφ1800*2000 |
700 |
≤10-60 |
240-680 |
500(250+250) |
PCXφ1400*1200 |
100 |
≤12 |
80-120 |
160-200 |

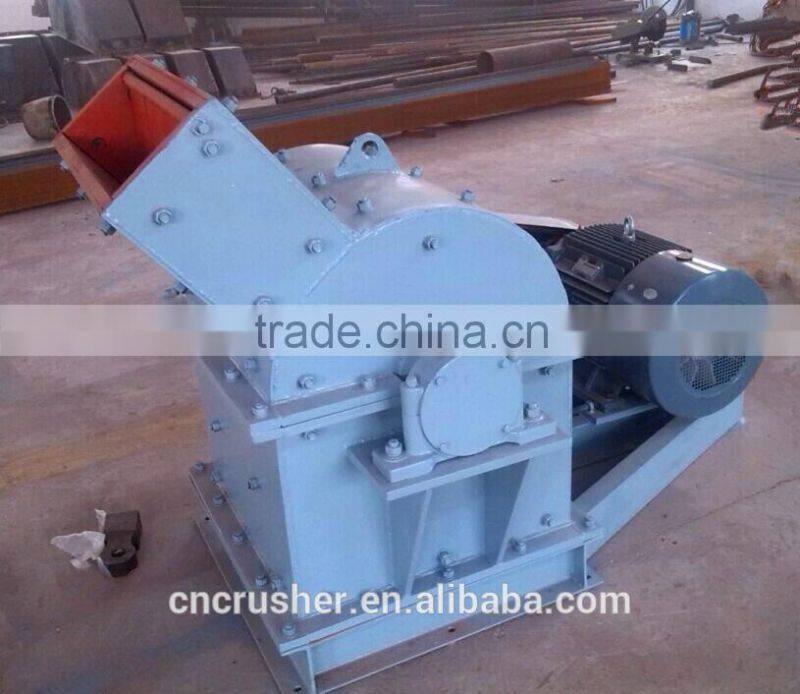

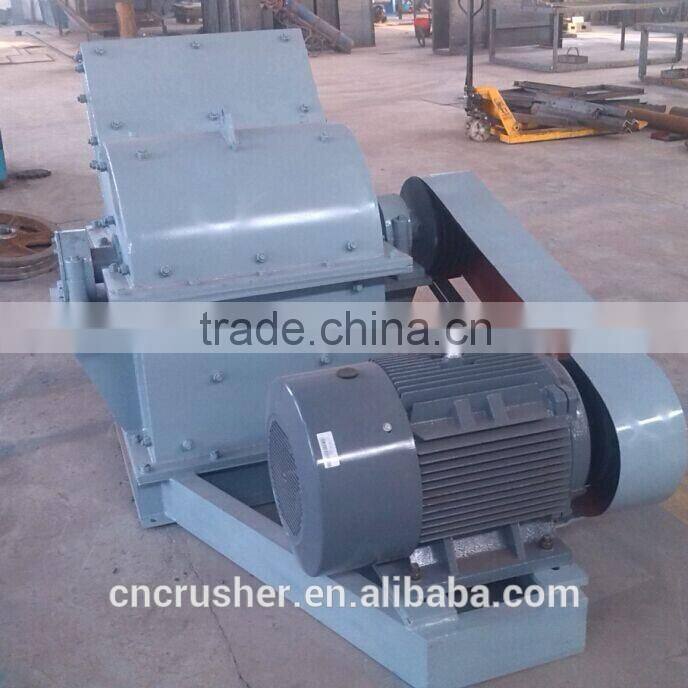

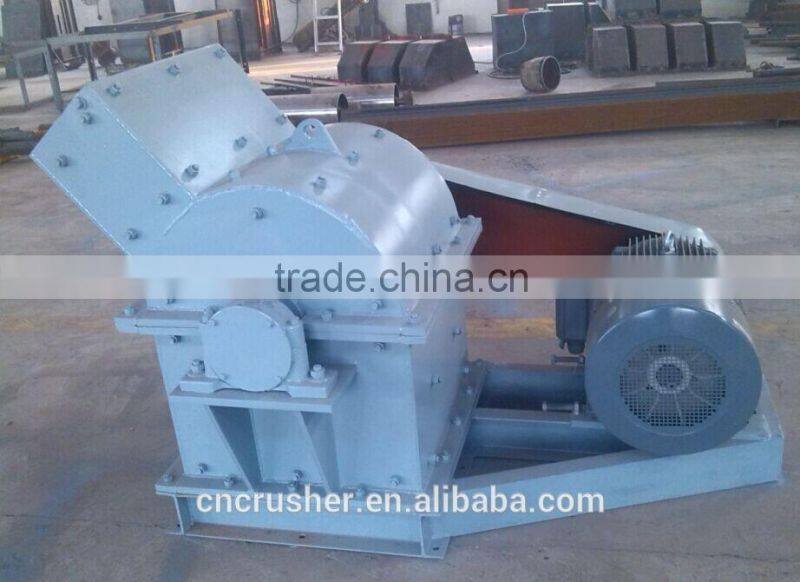

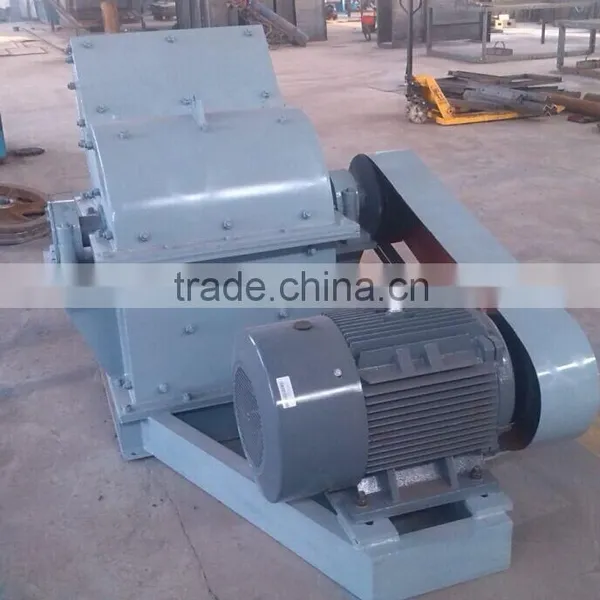

Mini hammer mill Images
When the hammer mill crusher machine operates, the motor drives the rotor to run at a high speed through the V belt, and there are a series of hammers on the rotor . When the materials go into the crushing cavity area of hammers, the hammers will crush them with the impact force , and the final products can be discharged by the outlet and then the large size products are brought back to the crushing area by the hammers for being re-crushed until they reach the required size until the particle size can meet the requirements. hmmer il crusher machine
