Specifications
Mould Maker1.mold base:45#
core/cavity:S136/718H
2.runner type: hot runner
3.delivery time:30day
ENA mould is specializing in crate mould, pallet mould, paint bucket mould, food container mould, flower pot mould and garbage bin mould. For the detailed of the company information, please view our ‘’company profile’’ on alibaba carefully. You will get a completed view of this company.
Mould Maker

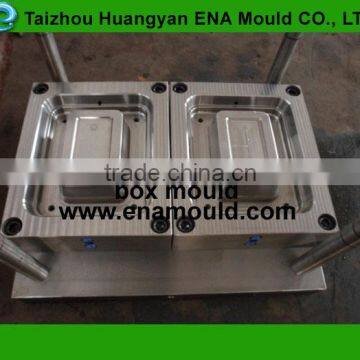

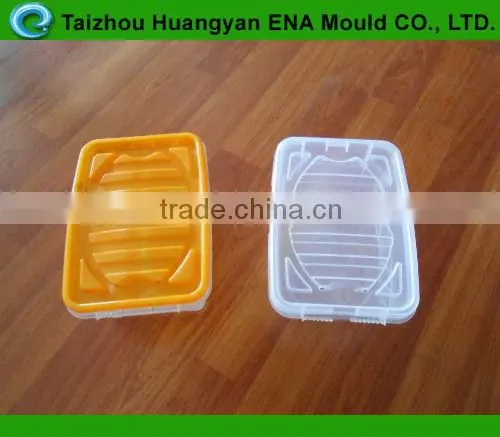

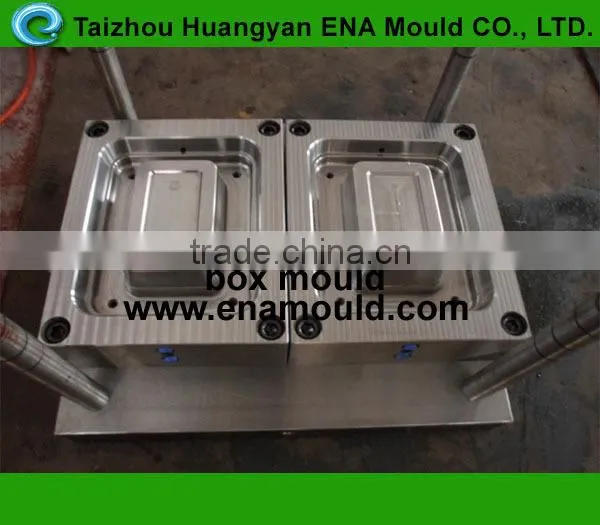

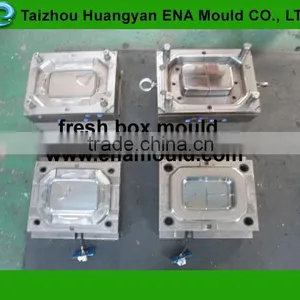

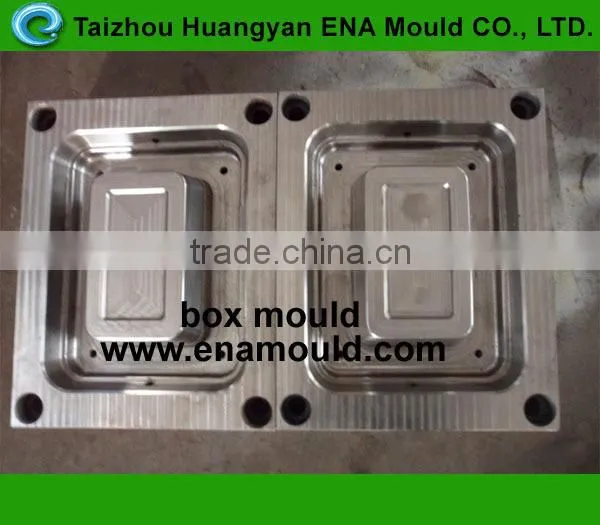

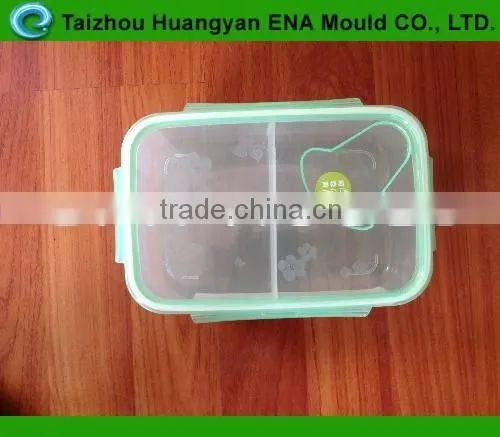

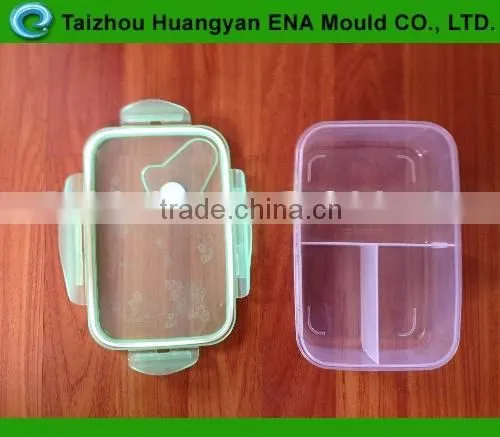

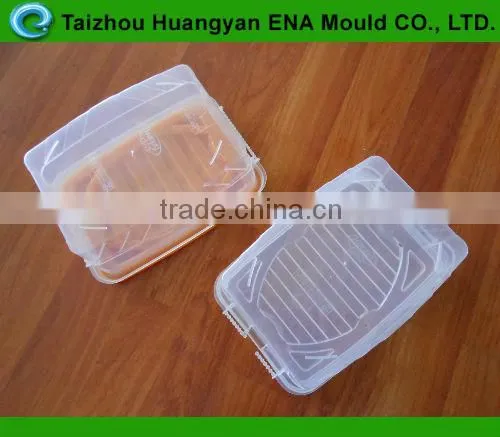

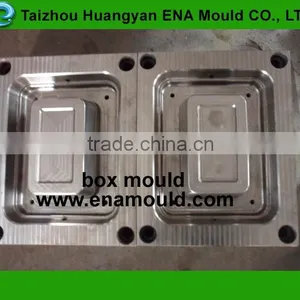

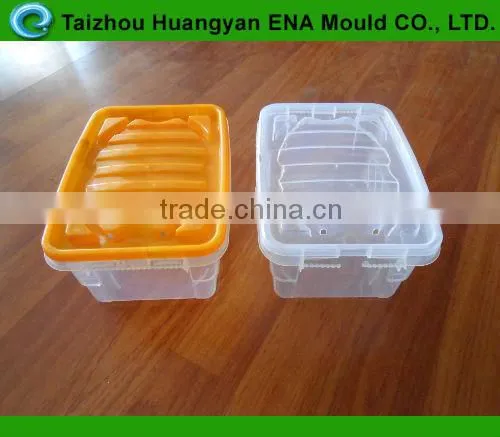

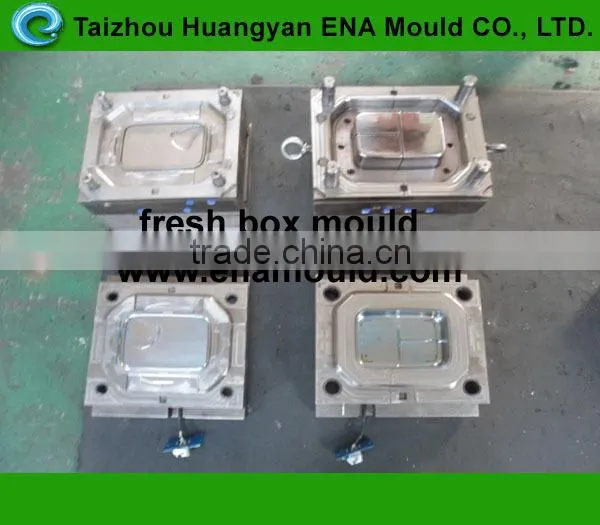

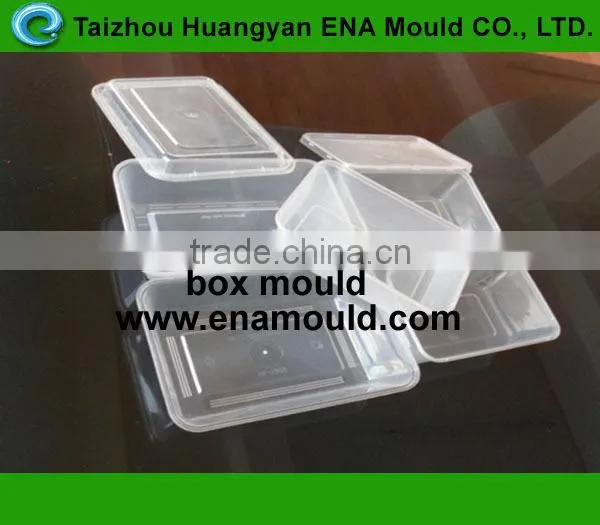

1. Detailed description of the Food Container Mould:
Basic mould information:
Runner Type |
Hot Runner |
Mould Size |
420x390x390mm |
No. of Cavity |
2 cavity |
Product Material |
PP |
Product Size |
254.1x190x65.8mm |
Product Weight |
63g |
Wall thickness |
1.2mm |
Surface finish |
Mirror polish |
Delivery Time |
30 days |
There are three levels of mould quality for your option.
Option A: Level A quality(Highest Level Quality)
Mould Base: LKM,45# Steel
Core/Cavity: S136+Becu
Slider/Insert: S136
Mould spare parts: SKD
Hot Runner: YUDO
Mould Life:1,000,000 shots
Cycle Time:20s
Option B: Level B quality(Middle Level Quality)
Mould Base: 45# Steel,self-made
Core/Cavity: 718H
Slider/Insert: 718H
Mould spare parts: Jinghong, China
Hot Runner: Hongying,China
Mould Life:800,000 shots
Cycle Time:22s
Option C: Level C quality(Lowest Level Quality)
Mould Base: 45# Steel,self-made
Core/Cavity: P20
Slider/Insert: P20
Mould spare parts: Jinghong,China
Hot Runner: Hongying,China
Mould Life:500,000 shots
Cycle Time:23s
Attention pls:
Price varies in different quality level. When you send us the mould inquiry, please offer the following information:
1) Quality level you choose: Level A/Level B/Level C
2) food container Photo
3) food container Dimension: L*W*H
4) Wall thickness
2. Food Container Mould Making Process
Processing |
Time |
Prepare Steel |
3 days |
CNC Machining |
5 days |
Drill |
2 days |
Heat treatment |
5 days |
High speed CNC Machining |
6 days |
Assembling and Fitting |
3 days |
Polishing |
4 days |
T1 mould test |
2 days |
Total: It is 30 days for first mould testing after mold design is confirmed.

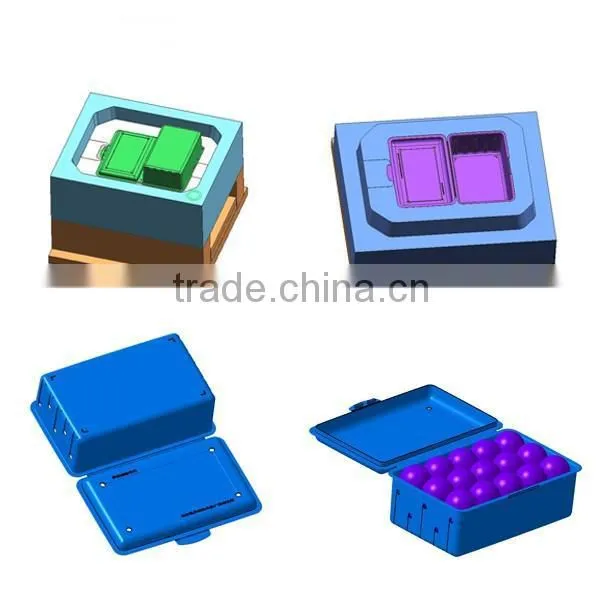

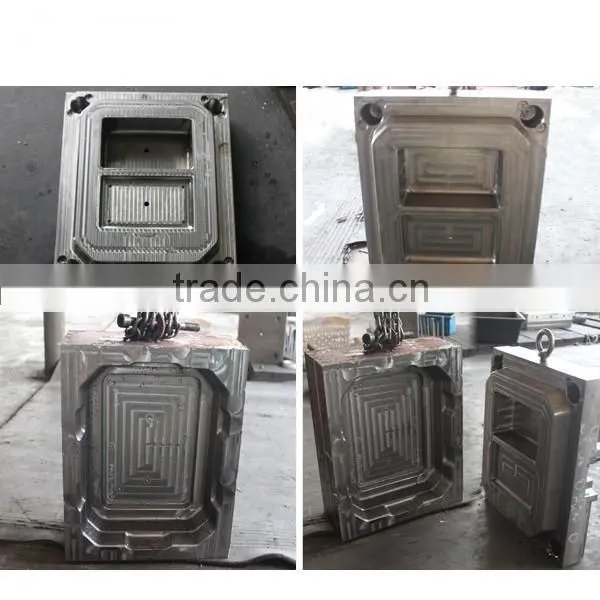

3.1 DESIGN STAGE 3.2 MACHINING STAGE

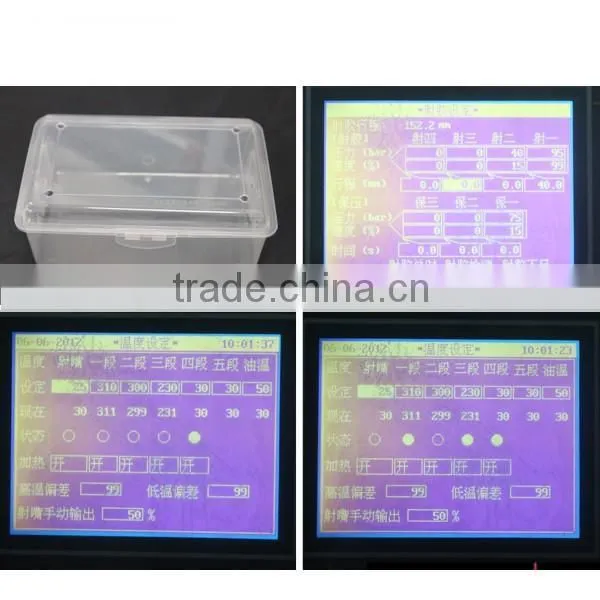

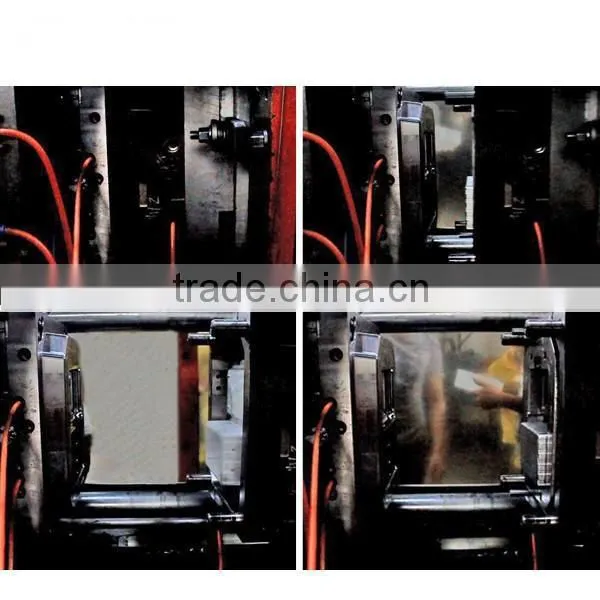

3.3 Mould Testing
3. Food container Mould Quality Control
For the Q/C of mould, there are 3 steps:
1. Mould Material Q/C
- Mould Steel Checking (Hardness, flaw detection)
- Mould Standard Spare Parts Checking (hardness, size, flaw checking)
2. Mould Making Process Q/C
- design checking (part design, mould design, mould engineering drawing)
- Each part of mould’s size checking after machining according to 2D drawing
- mould testing (check mould running condition)
3. Check with customer’s requirement again before mould shipping.

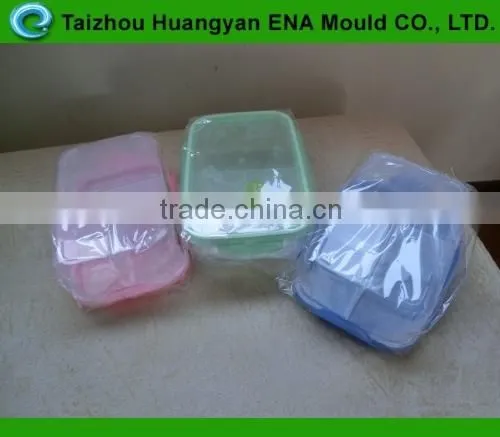

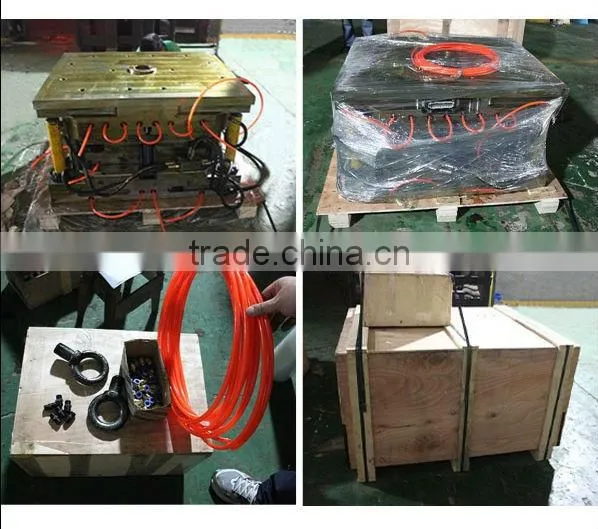

4. Food container Mould Pack and Shipping
Anti-rust oil is painted first, then Plastic film, and finally Wooden Case.
Sent together with the mould:
a) Mould manual instruction
b) engineering drawing in flash disk
c) One more set of mould spare parts: heater, ejector pin, bush, water nozzle, water pipe, hanging ring.
5. Food container Mould Maintenance
a) When the mould is vacant, spray the anti-rust oil
b) To clean the gate and cooling system regularly
c) Avoid to use recycled material if the mould is suitable for virgin material only
6. After-Sale Service
a) one-year after-sale technique support
