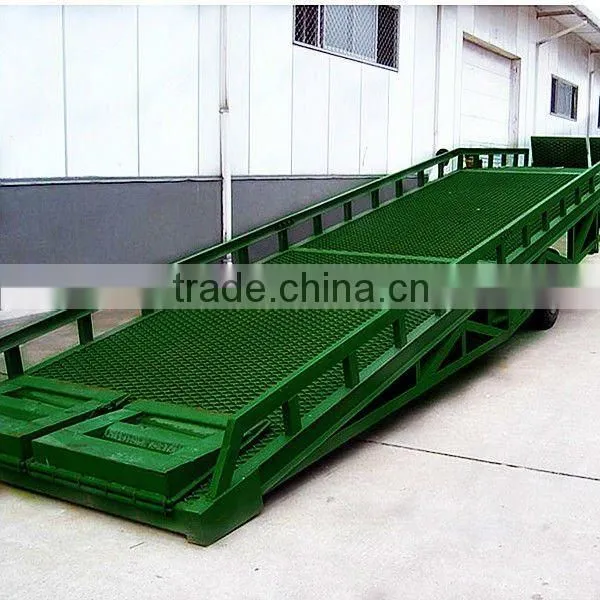

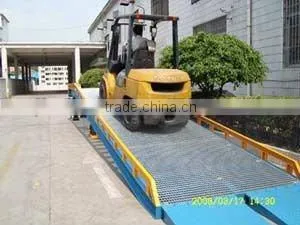

Help CenterDCQY Mobile Cargo Handing Ramp
Related Products
Specifications
using for loading and unloading cargo ,carry heavy goodsadjustable height,reliable performance,mobile
Product characteristics:
1.Full hydraulic drive, easy operation and reliable running.
2.Labrum and platform adopt integrated long shaft for connection,producing high strength and reliability.
3.Adopting imported sealing member to guarantee good sealing performance of the hydraulic system.
4.Adopting imported integrated modular hydraulic station, which has good sealing performance and long service life.
5.High-strength " U" beam design is able to guarantee long-time and high-load operation without deformation.
6.Adopting anti-slip checkered steel plate to guarantee good anti-slip performance of the platform.
7.On both sides there are skirt plates to prevent feet form entering the platform and avoid accidental damage.
[Mobile ramp technology parameters]
| Model |
Rated load (kg) |
Amplitude range (mm) |
Length (mm) |
width (mm) |
Wheel space (mm) |
Full range handing times |
Overall weight (kg) |
| DCQY6-0.9 | 6000 | 900 | 10500 | 2000 | 1500 | 50 | 2300 |
| DCQY8-0.9 | 8000 | 900 | 10500 | 2000 | 1500 | 50 | 2900 |
| DCQY10-0.9 | 10000 | 900 | 10500 | 2000 | 1500 | 50 | 3100 |
About the products
1.The products are insured for liabilities by People's Insurance Company of China.
2.The products are equipped with safety and anti-explosion devices for hydraulic pipelines.
3.The products are equipped with earth leakage protection devices.
4.Elevating mechanism adopts high-strength manganese steel rectangular pipe.
5.Safety device to prevent the elevating platform from overloading.
6.Emergency falling device in case of power cut.
