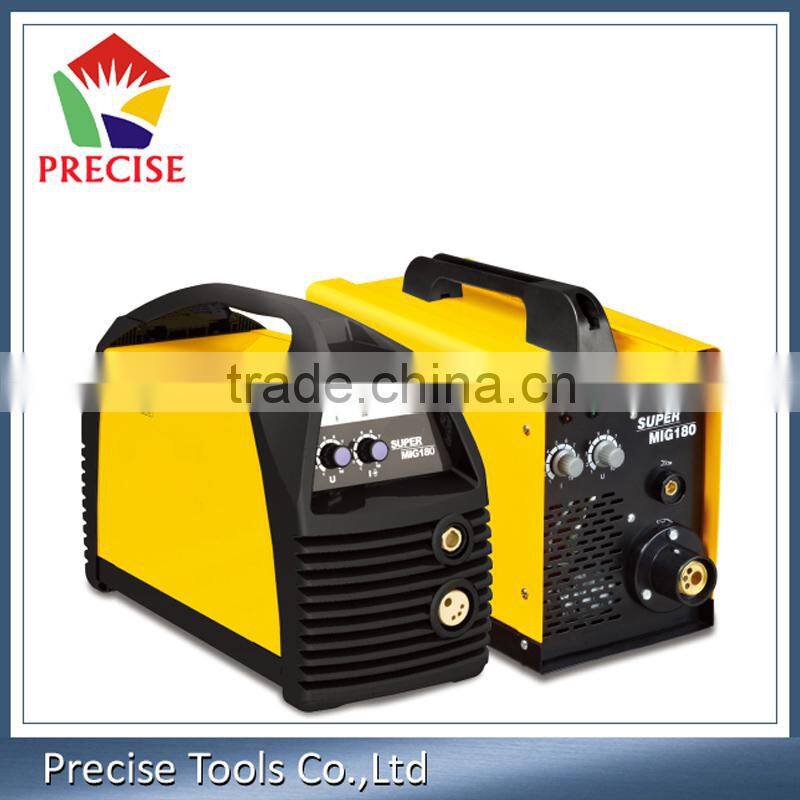

MIG-150,180 Protable Plastic Mini MIG/MAG Welding Machine
--------------------------------------------Features---------------------------------------------------------
*Single-phase,protable,fan-cooling and wire welding machine for flux(no gas) and MIG/MAG(gas) welding.
*With thermal protection. complete with MIG welding accessories.
*For welding different types of material such as steel,stainless steel.
*Steel and aluminum is available on request.
------------------------------------------Service------------------------------------------------------
• OEM sevice offered: Machine Color, Color Carton, Model or Other Stuff.
• With standard spareparts: TIG Welding Torch, Electrode Holder, Grounding Clamp, Brush and Mask.
• One Year Warranty.
• Technical Support.
----------------------------------------Main Market---------------------------------------------------
Europe, North America, South America , Southeast Asia, Middle East, Africa.
----------------------------------------Specification--------------------------------------------------
| Item | MIG-150 | MIG-180 |
| Mains voltage | 230V | 230V |
| Rated power | 6.9KVA/150 35% | 8.6KVA/180 25% |
| 60% 5.3KVA/120A | 60% 5.3KVA/120A | |
| Connection cable | ||
| Fuse delayed | 100% 4.2KVA/100A | 100% 4.2KVA/100A |
| 2.5mm2-S-3.3m/16A | 2.5mm2-S-3.3m/16A | |
| Load capacity 40 oC | 150A/21.5V 35% | 180A/23.0V 25% |
| Open cricuit voltage | 60% 120A/20V | 60% 120A/20V |
| 100% 100A/19V | 100% 100A/19V | |
| 22-31V | 15.5-42.5V | |
| Efficiencyat max.current | 0.8 | 0.81 |
| Welding range | 40-150A/14-22V | 40-180A/14-23V |
| Dimensions(MM) | 545*335*415 | 545*335*415 |
| Weight(Kg) | 16 | 16 |
------------------------------------------Picture---------------------------------------------------------
-------------------------------------------Accessories-----------------------------------------------------
With standard spareparts: With welding torch,earth clamp,electrode holder,mask,brush.
TIG Welding Informations for reference
In TIG welding (tungsten inert gas), the welding arc is formed between a non-consumable tungsten electrode and the base material. Argon, which is most commonly used as the shielding gas, is fed through the TIG torch to shield the electrode and molten weld pool. The current is either alternating or direct current, which can be pulsed as necessary.
DC TIG welding
The direct-current TIG welding process is suitable for welding unalloyed and low-alloy steels, stainless steels and titanium.
AC TIG welding
Alternating- current TIG, of AC TIG welding is particularly suitable for welding aluminium and aluminium alloys. The primary area of application for AC TIG welding is used with materials, but the process is also used frequently in repairing welding for thicker aluminium pieces.
